Remove/Install Oil Pump
Removing and installing oil pumpPreceding work:
- Oil sump removed. Service and Repair

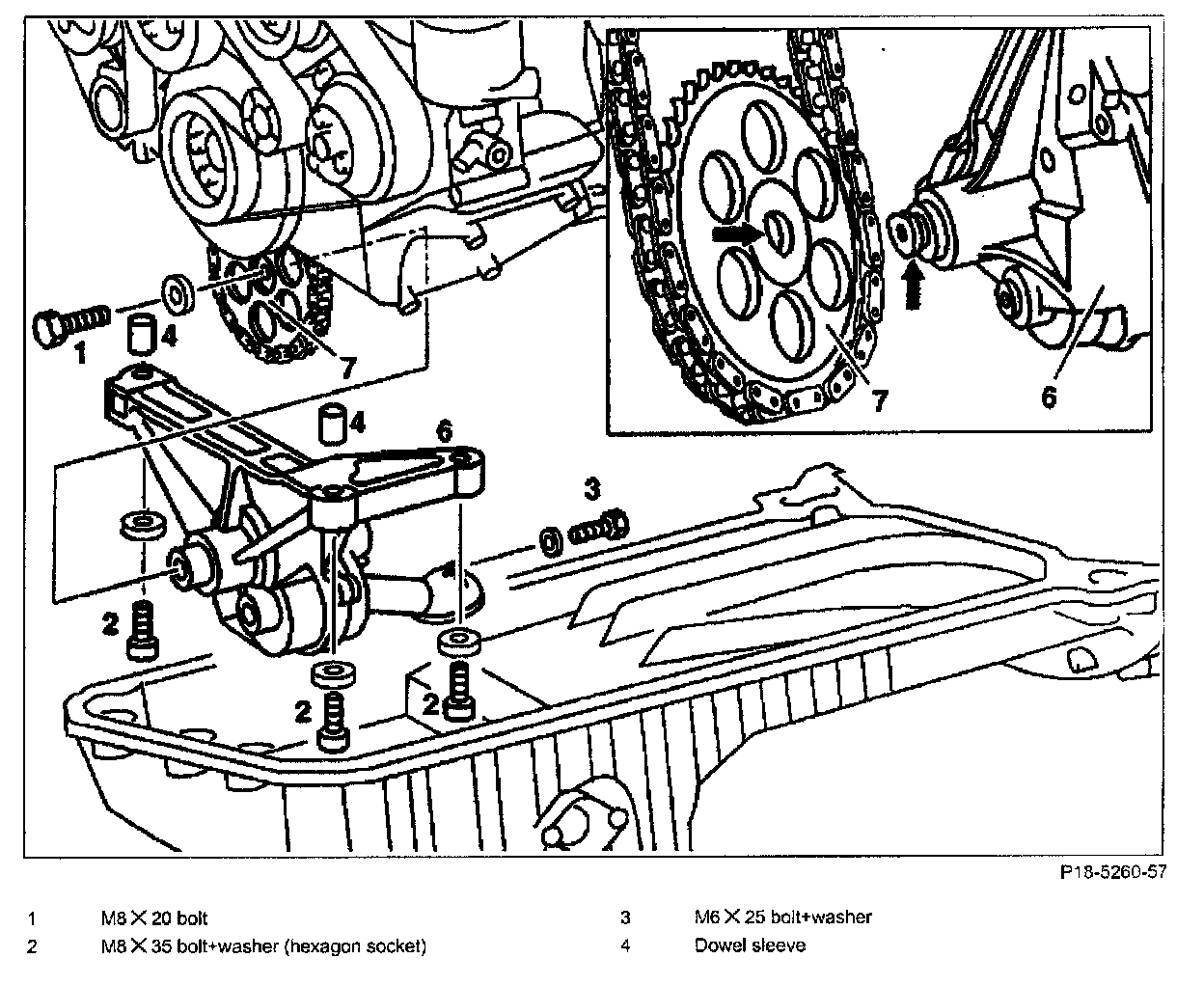

- Unscrew bolt (1) of oil pump drive gear (6), (32 Nm)
- Pull off oil pump drive gear (7) at oil pump (6).
Installation note: Install oil pump drive gear (6) with convex face pointing toward oil pump (6) (arrows). Pay attention to position of tensioning bracket relative to oil pump.
- Unbolt oil pump (6), take off to the front, (25 Nm)
Installation note: Clean strainer of oil pump. Fill oil pump (6) with engine oil before installing so that it pumps engine oil as soon as it starts.
Tightening torques in Nm
Bolt of oil pump drive gear 32
Bolts of oil pump 25
Special Tools:
