C. Engines 602.962, 603.970 (300D 2.5, 350SD/SDL Turbo)

As is the case with all diesel engines as of model year 1986, models with engines 602.962 and 603.970 are equipped with a factory-installed block heater as standard equipment. The electrical cable and the heat shield for the block heater, however, are not installed. The following procedure details installation of the cable and heat shield.

1. Lift vehicle.

2. Remove encapsulation panel from below engine.

3. Attach electrical cable to block heater. Route cable away from exhaust manifold along transmission oil cooler line using cable ties.

4. Install heat shield over block heater, with 2 new hex. socket screws and spring washers.

5. Route cable plug to a convenient location as per customer preference. Secure cable and plug with cable ties.

Note:
Ensure that cable is routed away from moving engine parts and sources of high heat.

6. Reinstall encapsulation panel.

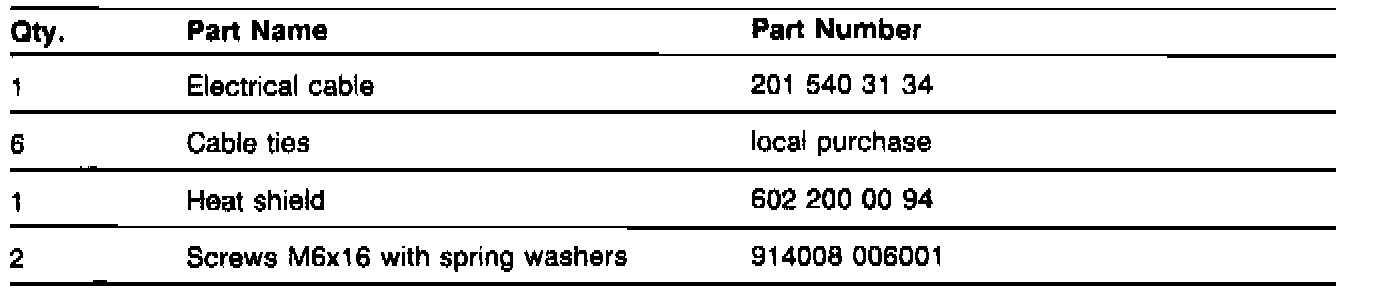

Parts Information

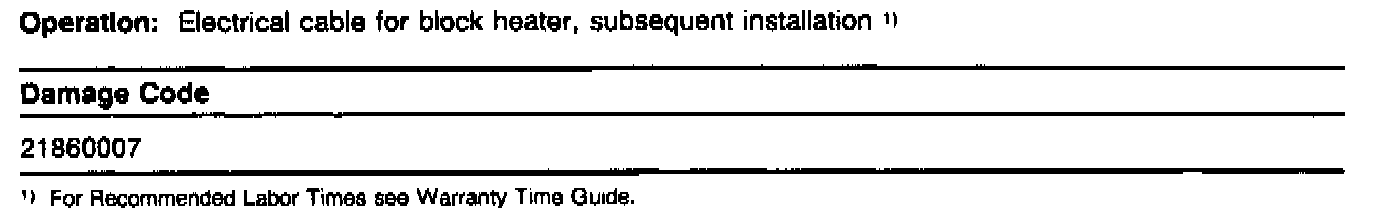

Warranty Information

Note:
Only owners of diesel models are entitled to free installation of electric cable and heat shield for a period of 12 months from original date-of-delivery.
