Replacing Threaded Bush In Front of Camshaft






- Remove camshaft

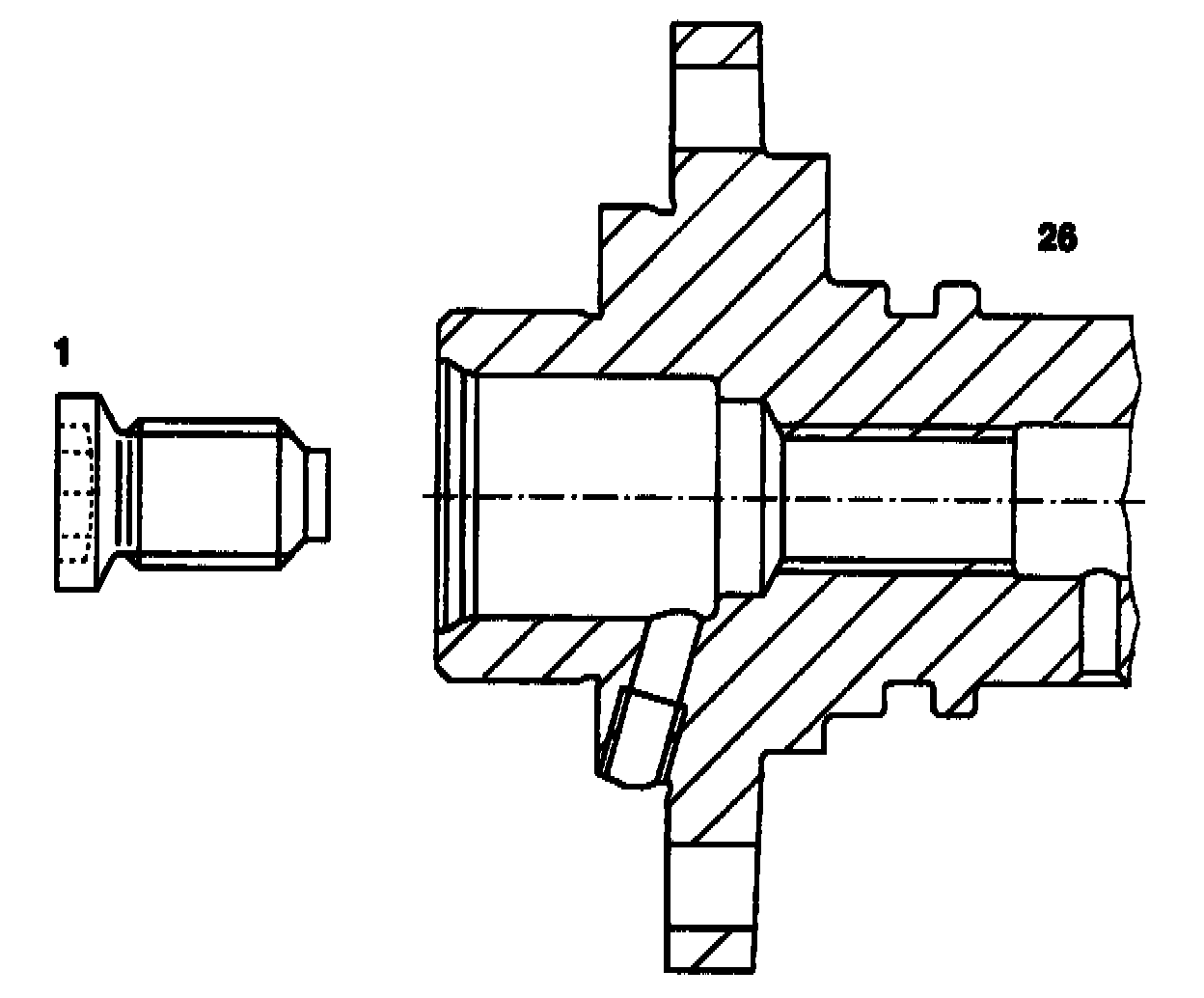

- Unscrew (torx) threaded bush (1)
- Clean hollow-drilled camshaft (26)
- Clean and remove grease from thread at front of camshaft
- Replace bush (1) (microencapsulated), part number 103 997 00 15. Tighten to 45 Nm.

Special Tools:
