Replacing End Cover In Camshafts

- Remove camshaft
- Press cap (1) out with a screwdriver.
- Clean hollow-drilled camshaft (26).
- Check hole (B). See table for sizes.

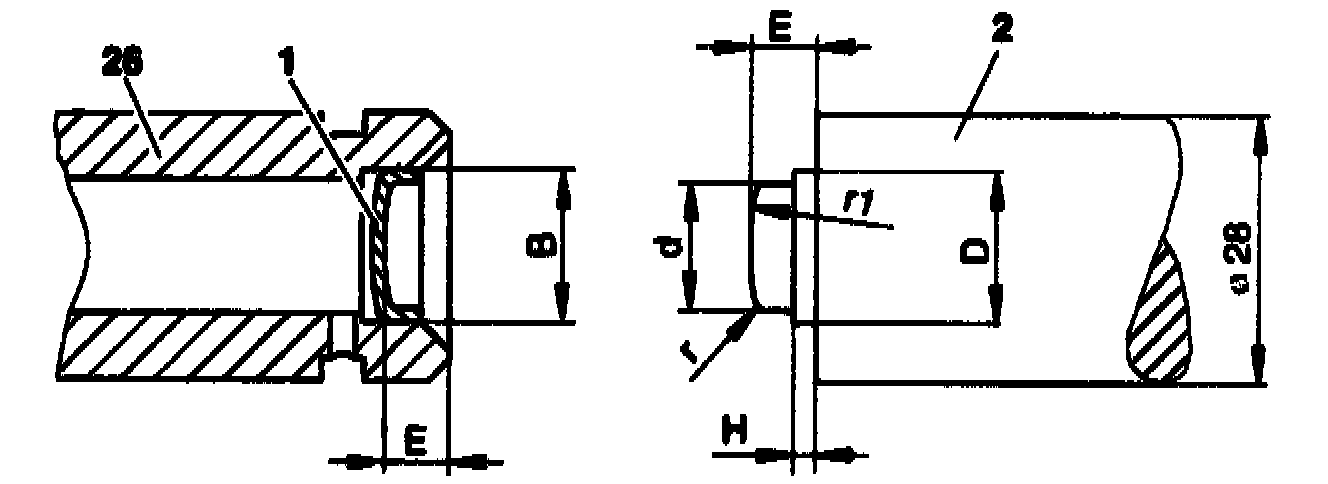

- Knock end cover (1) in with shop-made drift (2).

NOTE: Use new end cover (1). The end cover (1) must not sit at the end of the hole. It is important to adhere to the insertion depth (size E).

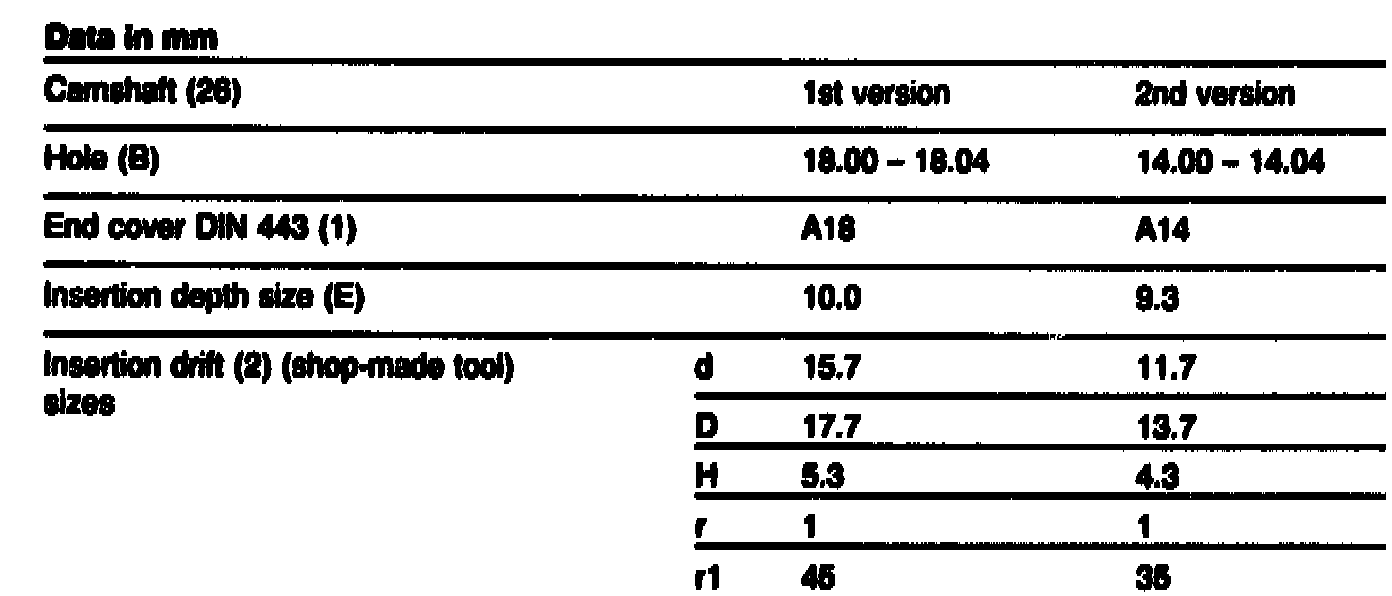

Table:
