Work Instructions
Group: 83Date: April 1990 Number: 251
SUBJECT: REPLACEMENT OF PRE-RESISTOR MODEL 124
Effective Serial Number Range
Model Chassis End Number
From To
124 B 117654 B 132937
F 129370 F 129885
Procedure
1. Place engine hood in vertical position.
2. Disconnect and cover battery negative terminal.

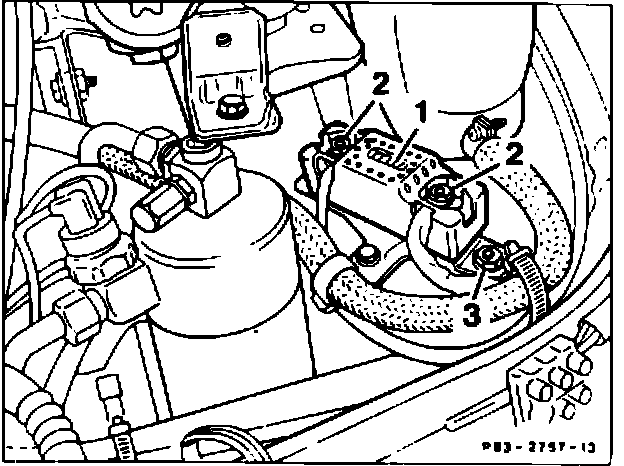

Figure 1:
3. Loosen both nuts (2, Figure 1) and remove connection cables from pre-resistor (1).
4. Loosen nuts (3) frail holder.
5. Remove pre-resistor (1).

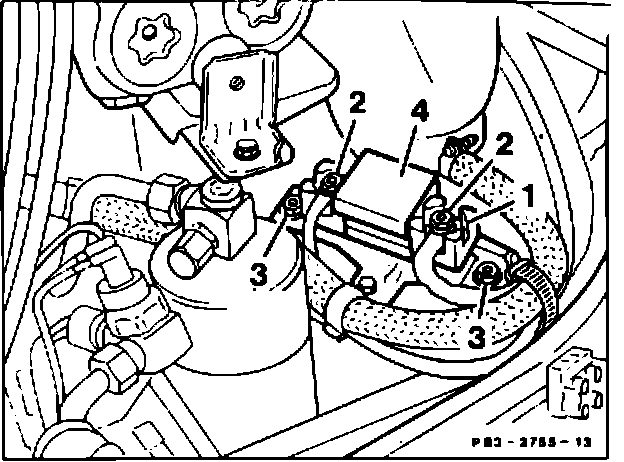

Figure 2:
6. Insert new pre-resistor (1, Figure 2).
7. Fit new cover (4) over pre-resistor and secure with 2 nuts (3).
8. For further installation proceed in reverse order.
Parts Information
Part Name Part
Pre-resistor 000 158 32 45
Cover 126 545 03 46
Time Allowance
Pre-resistor for auxiliary fan, replace 0.3 hrs.
(with protective cover installation)
Damage Code
50 900 06 7
Parts Ordering Procedure
Each dealer will be provided with one "W" of the parts quantity from the Baltimore PDC, based on the number of affected vehicles serviced by that dealer.
Additional quantities can be ordered by the dealer from the facing PDC.
