Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Service and Repair >> AP20.00-P-2010Z Engine-cooling system - check/correct fluid level

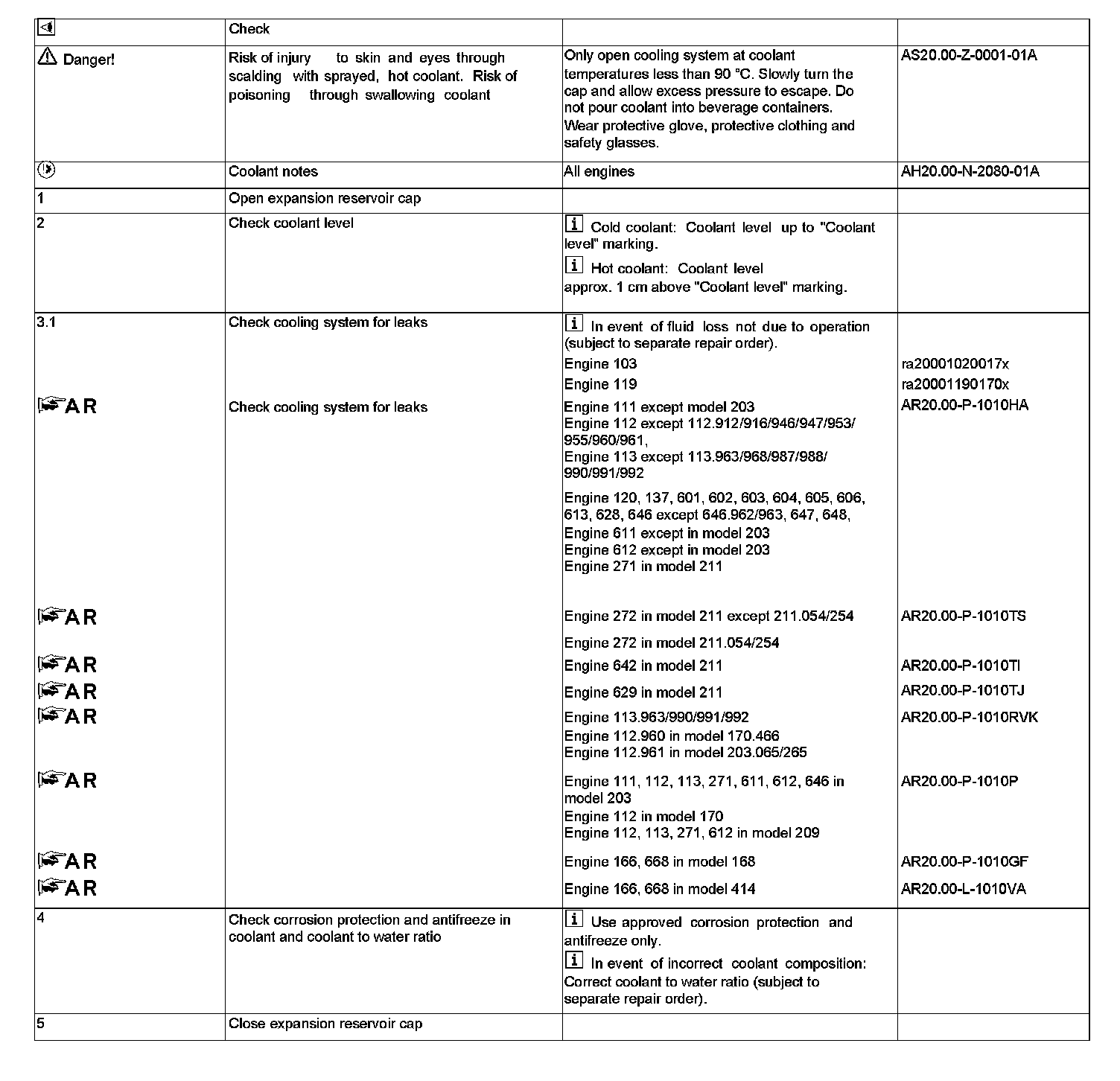

AP20.00-P-2010Z Engine-cooling system - check/correct fluid level



AP20.00-P-2010Z Engine-cooling system - check/correct fluid level. Check/correct corrosion protection/antifreeze

Steps 1-5:
