Radiator Cooling Fan Resistor: Locations

Component Location

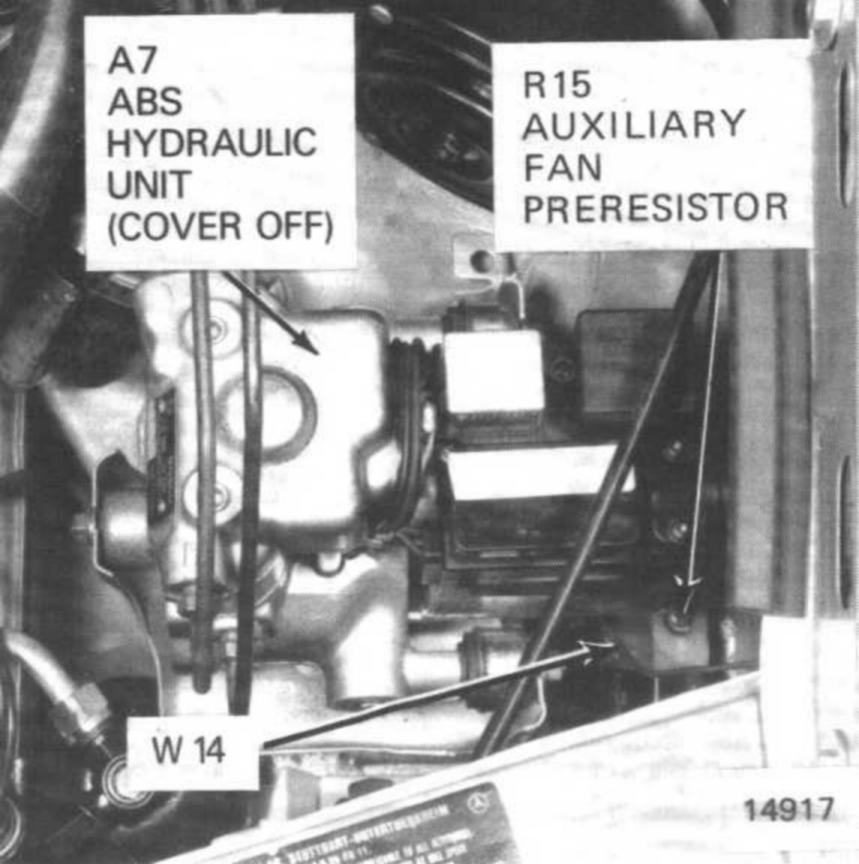

Component ID R15
Component Name Auxiliary fan preresistor
Location Lower left front corner of engine compartment
