Temperature Switch (105/120 Degree C)

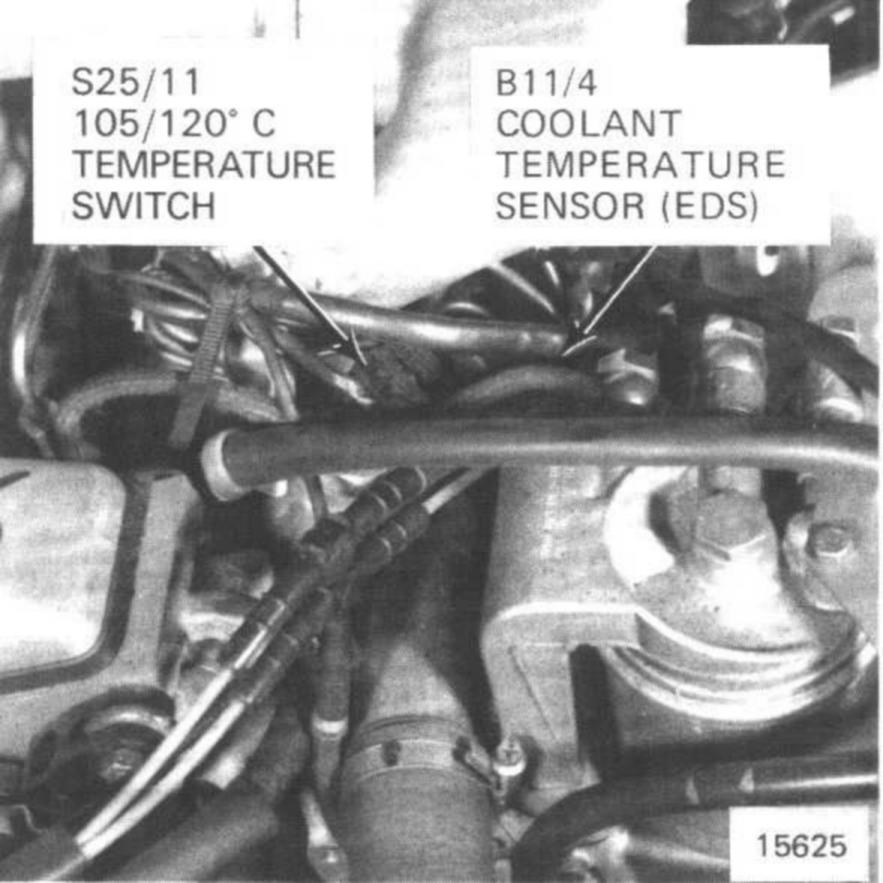

Component Location





Component ID S25/11
Component Name 105/120°C Temperature switch (auxiliary fan high speed)
Location Top front of engine
