Auxiliary Water Pump: Locations

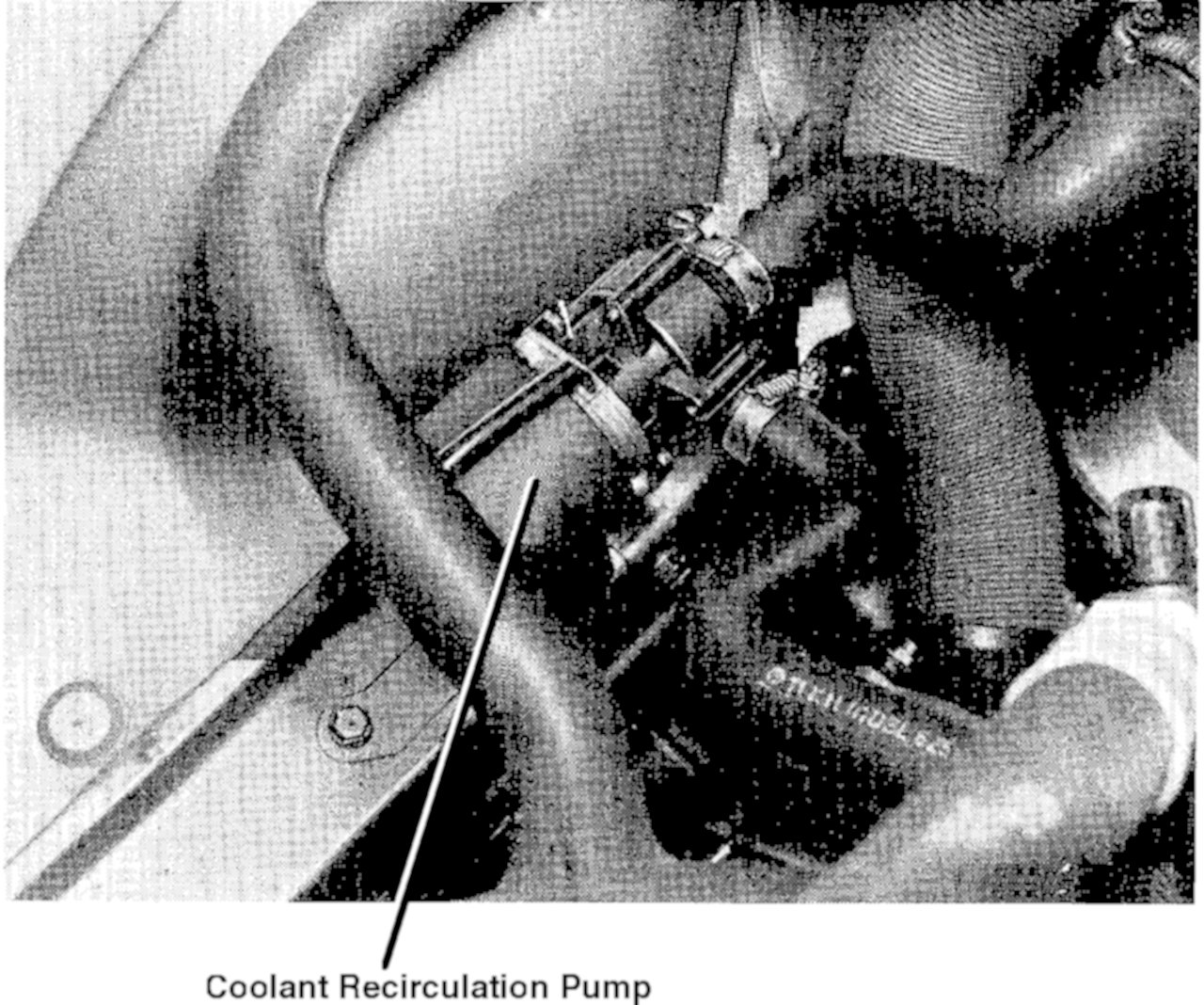

Coolant Recirculation Pump Location:





The coolant recirculation (auxiliary) pump is located at the lower right side of the engine compartment.
