Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Control Systems >> Exhaust Gas Recirculation >> System Diagram

System Diagram

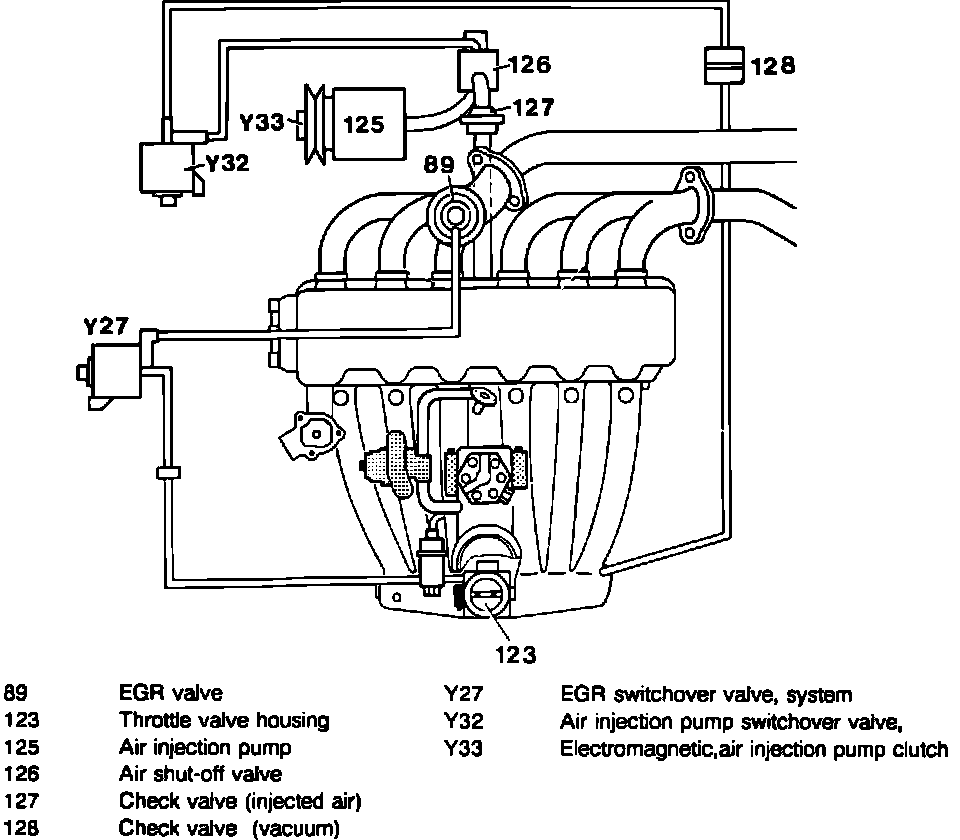

Fig. 82 Air Injection And EGR System Diagram:
