Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> System Diagram >> Headlamp Wiper/Washer

Headlamp Wiper/Washer

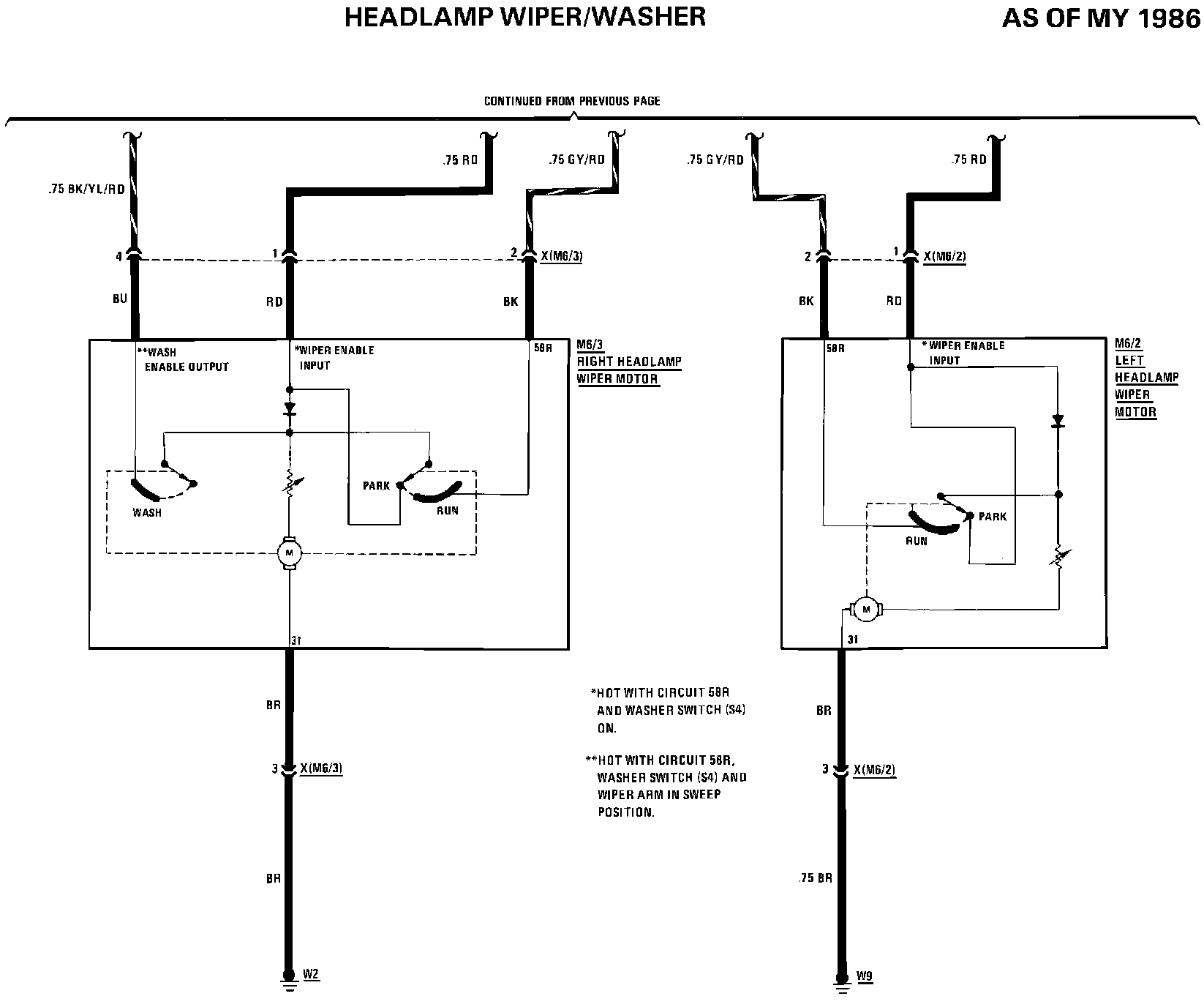

Headlamp Wiper/Washer:

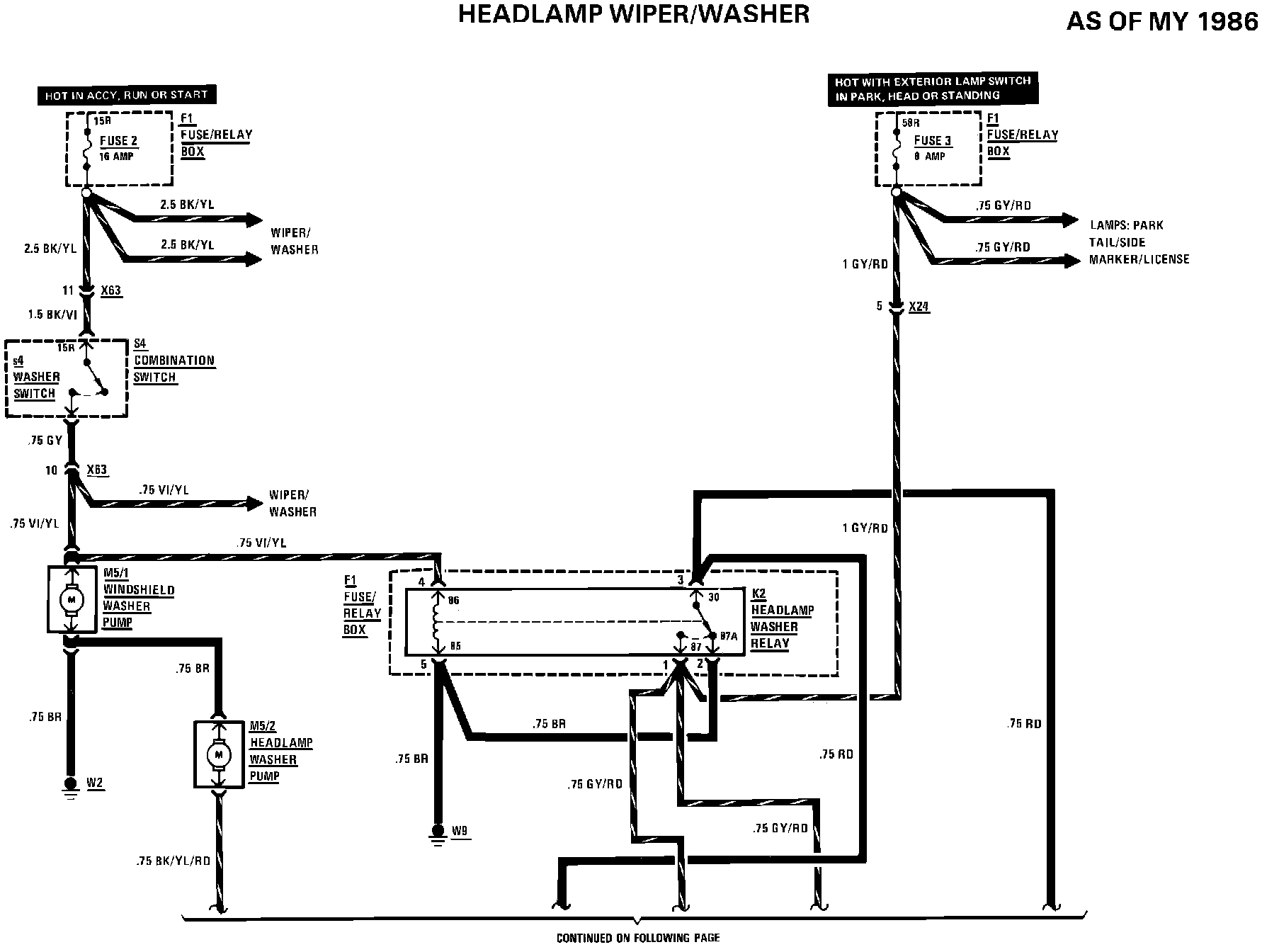

Headlamp Wiper/Washer:
