Two Piece Radio With Sound System/Active Bass
Two Piece Radio With Sound System/Active Bass

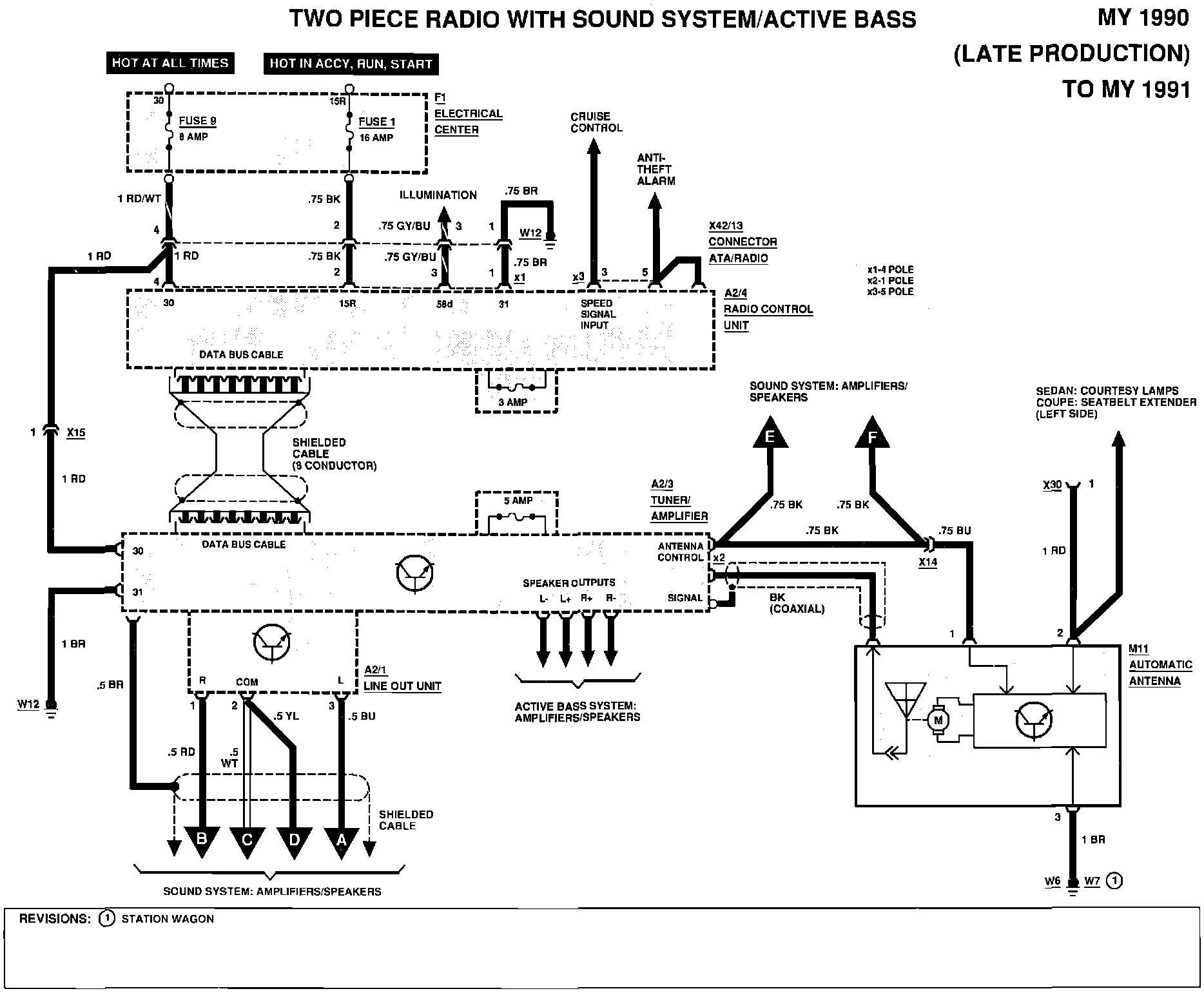

Two Piece Radio W/ Sound System/Active Bass:
