Radio With Active Bass System/Automatic Antenna
Radio With Active Bass System/Automatic Antenna

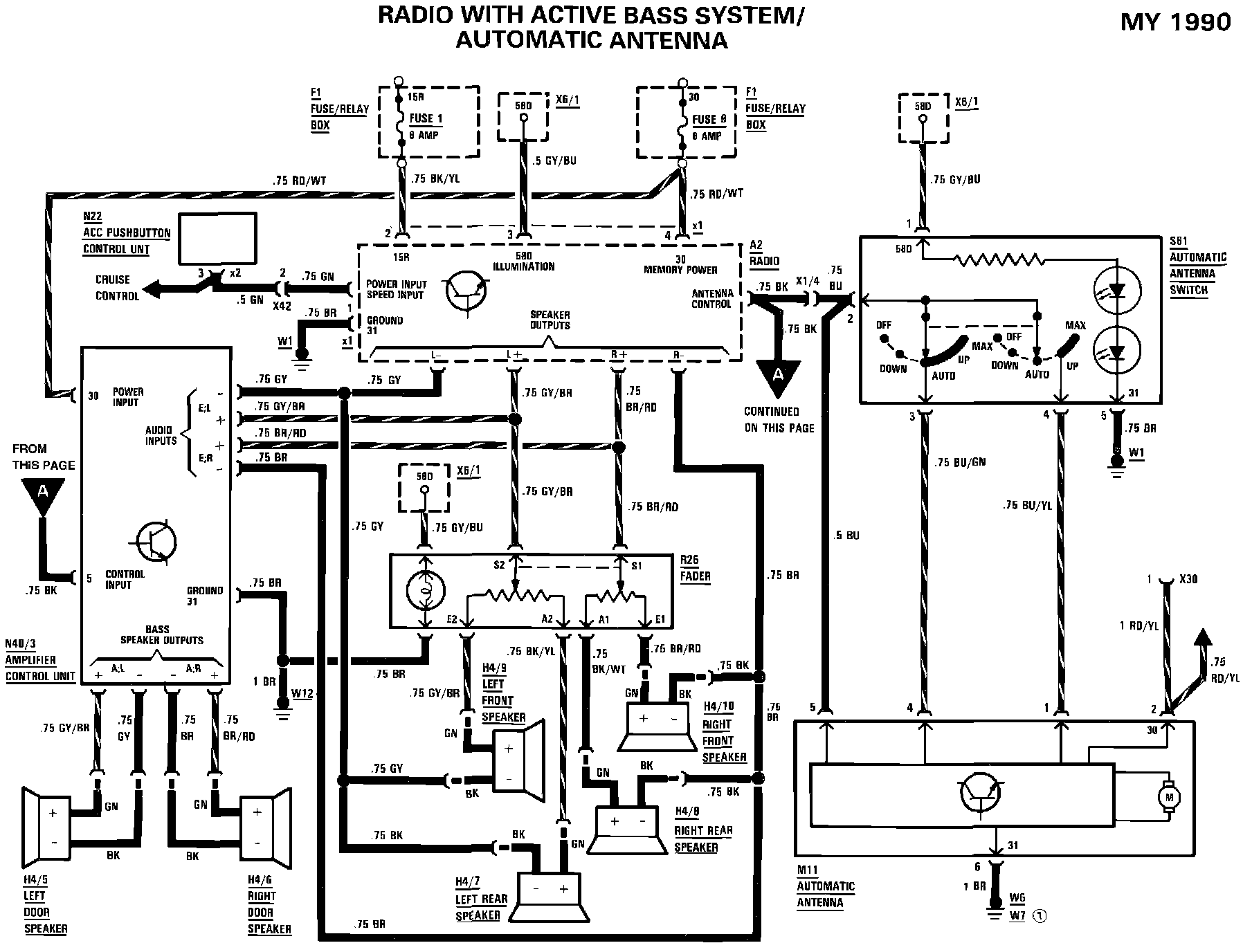

Radio W/ Active Bass System/Automatic Antenna:

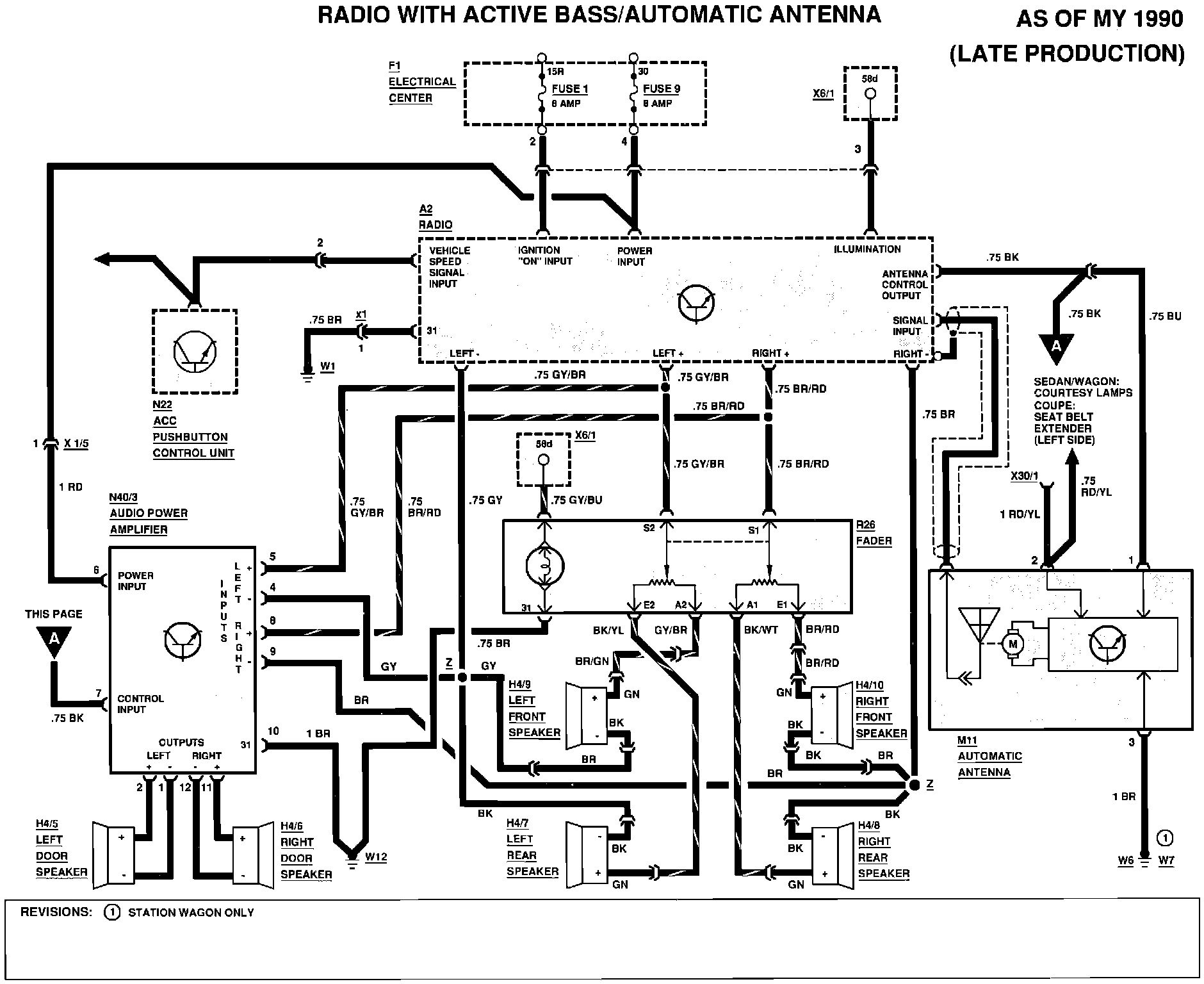

Radio W/ Active Bass System/Automatic Antenna:
