Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Electronic Engine Controls

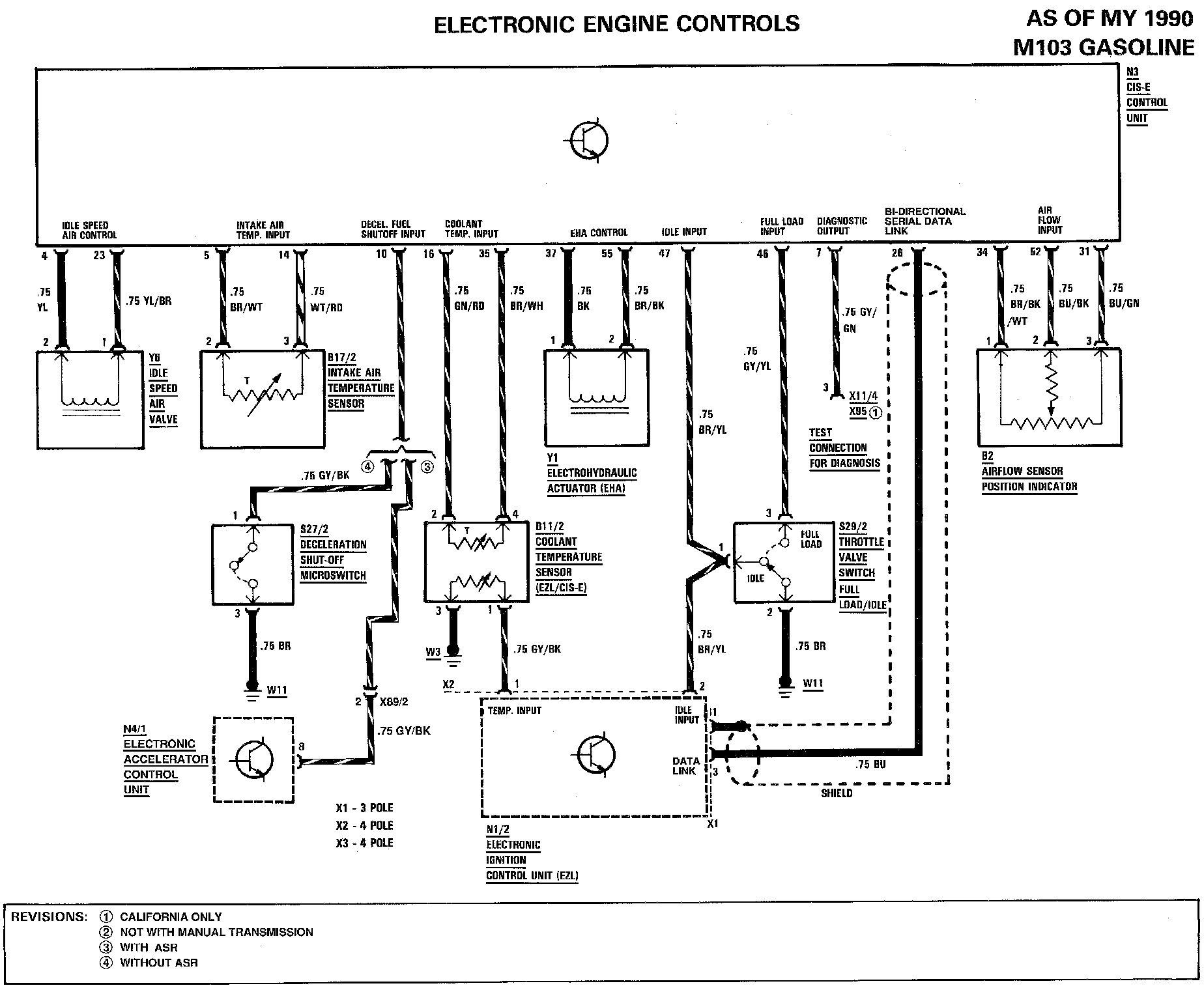

Electronic Engine Controls

Electronic Engine Controls:



Electronic Engine Controls:
