Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Glove Box/Cigar Lighter/Radio/Automatic Antenna

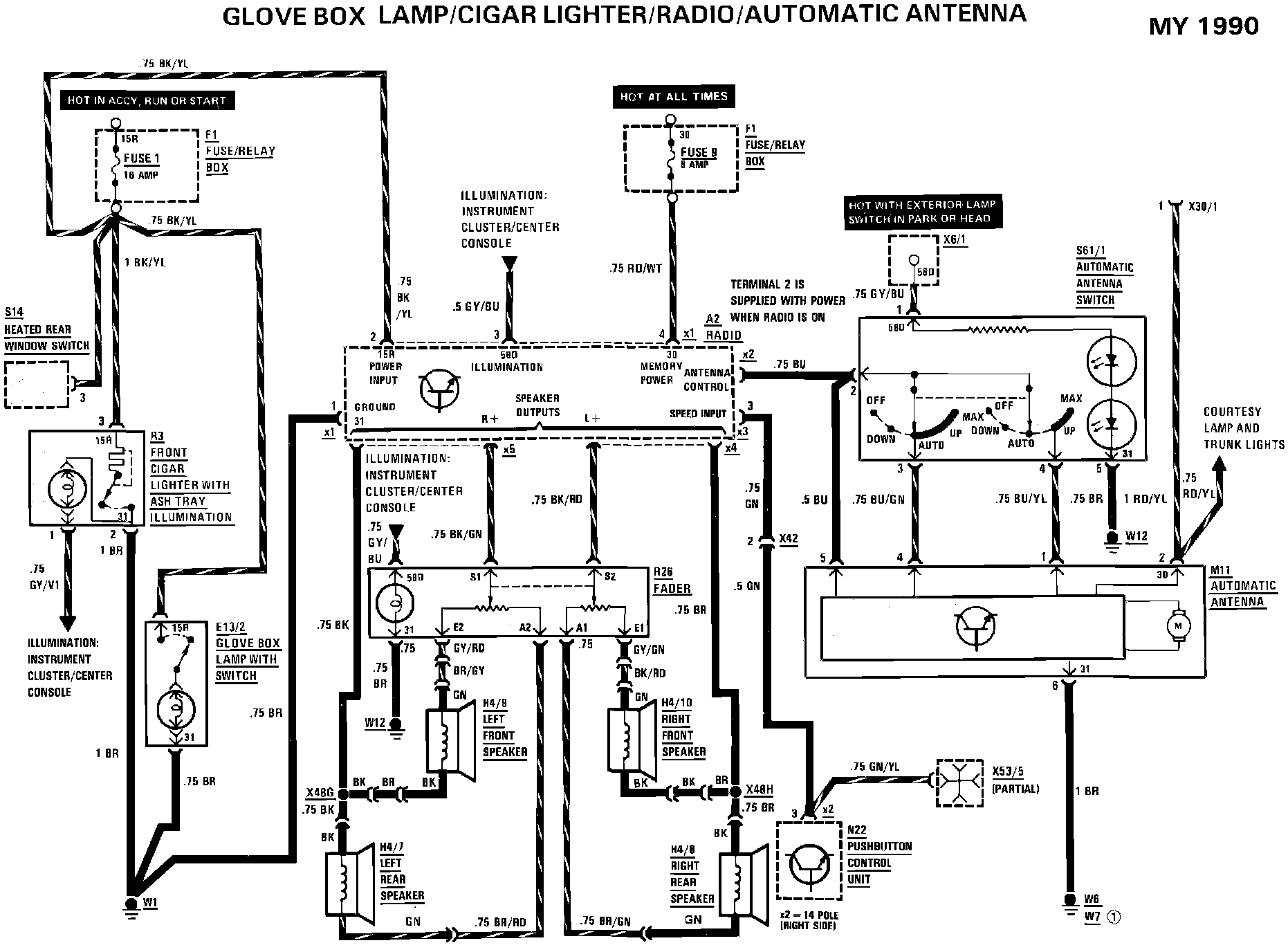

Glove Box/Cigar Lighter/Radio/Automatic Antenna

Glove Box Lamp/Cigarette Lighter/Radio/Automatic Antenna:
