Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> System Diagram

System Diagram

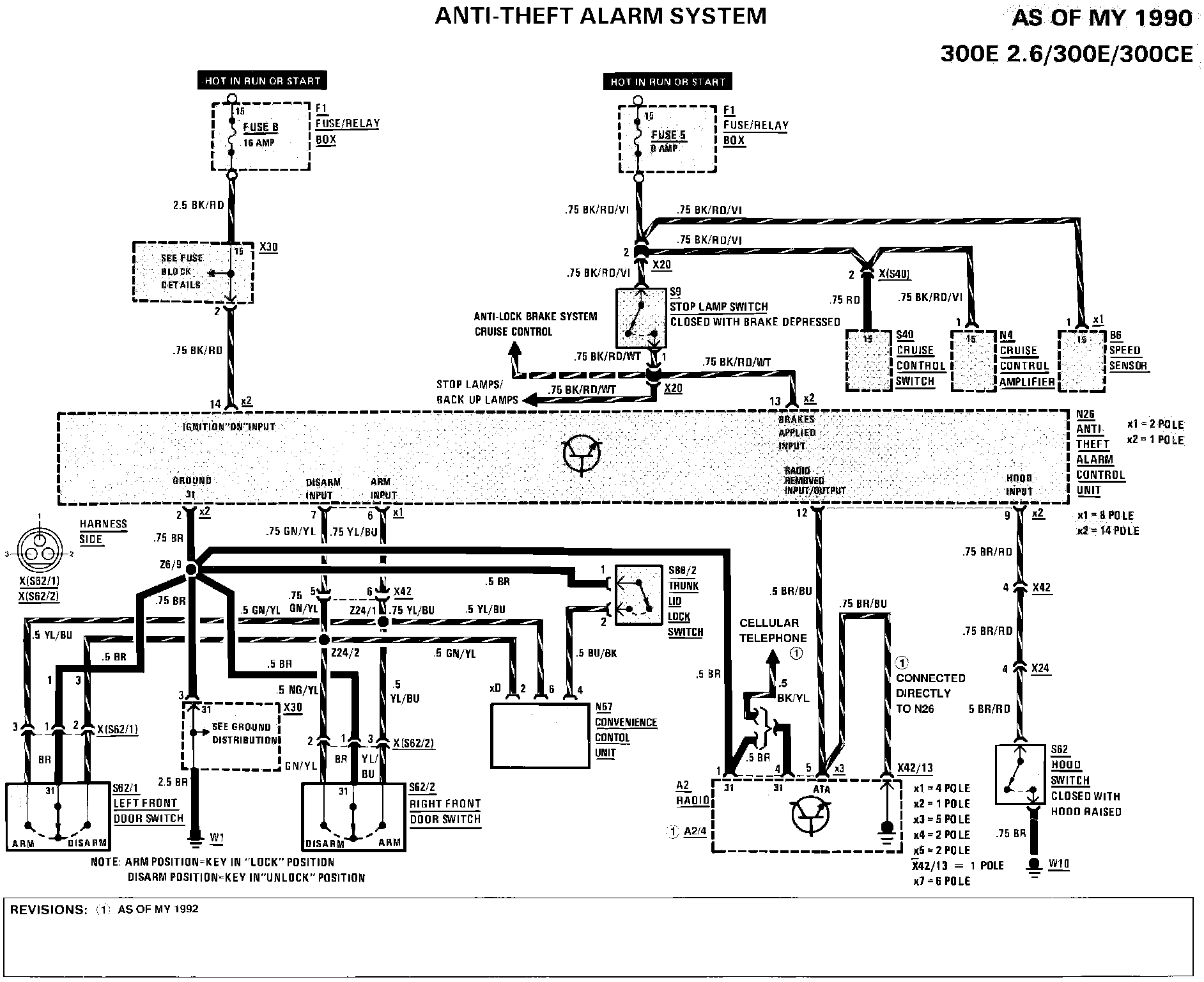

Anti-Theft Alarm System:

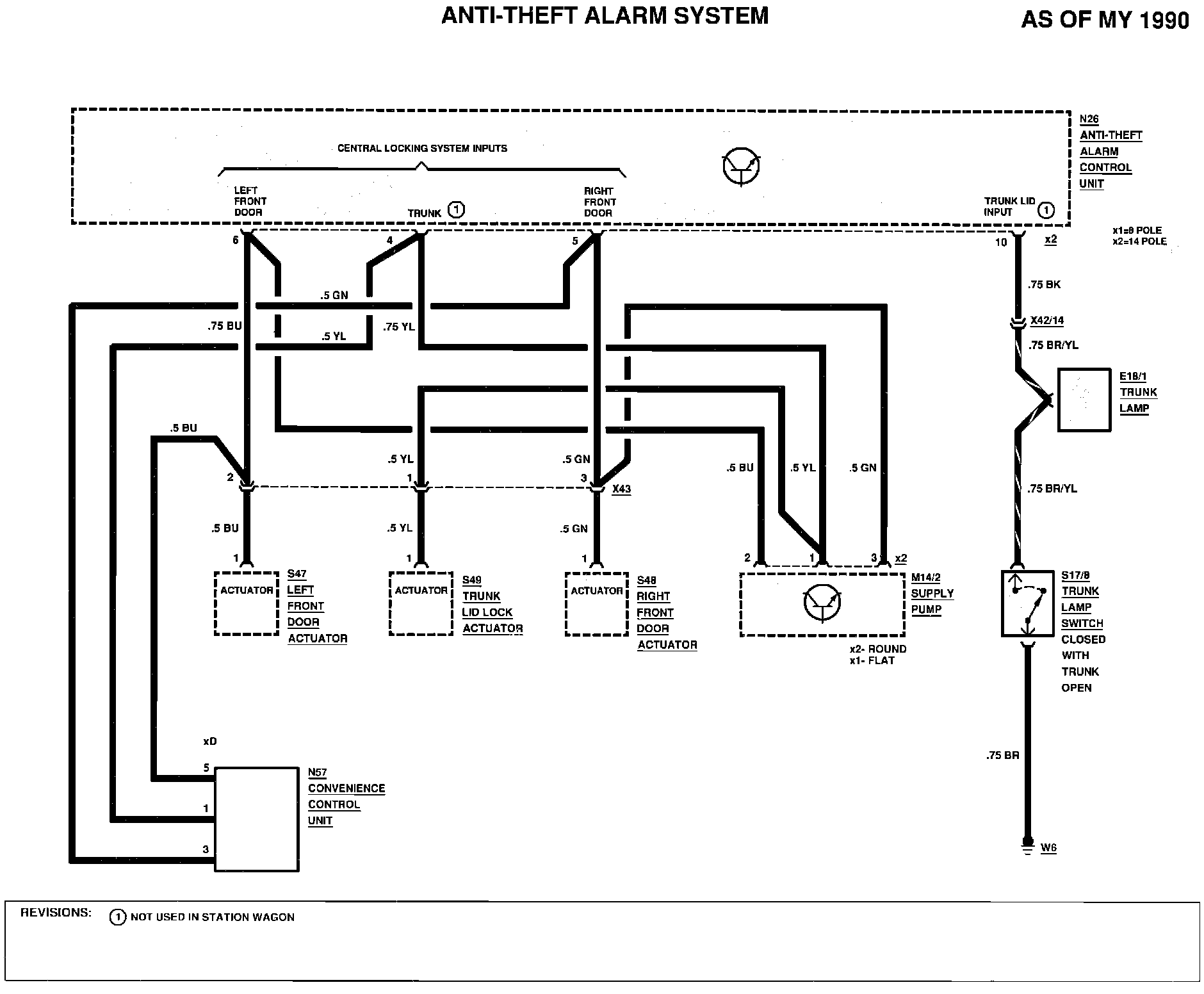

Anti-Theft Alarm System:



Anti-Theft Alarm System:



Anti-Theft Alarm System:
