Anti-Lock Brakes (ABS) (With ASD/4MATIC)
Anti-Lock Brakes (ABS) (With ASD/4MATIC)

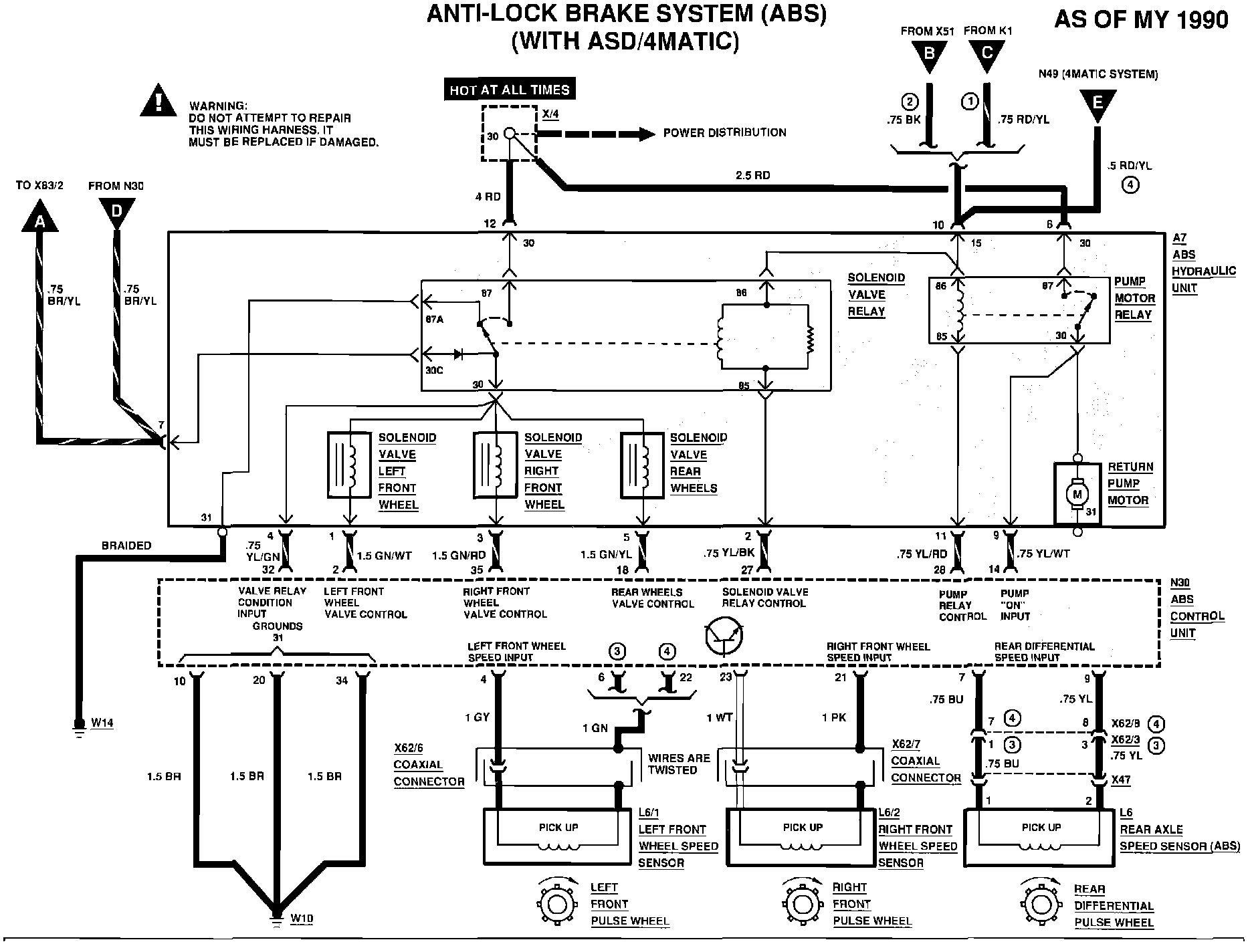

Anti-Lock Brake System (ABS) W/ ASD/4Matic:

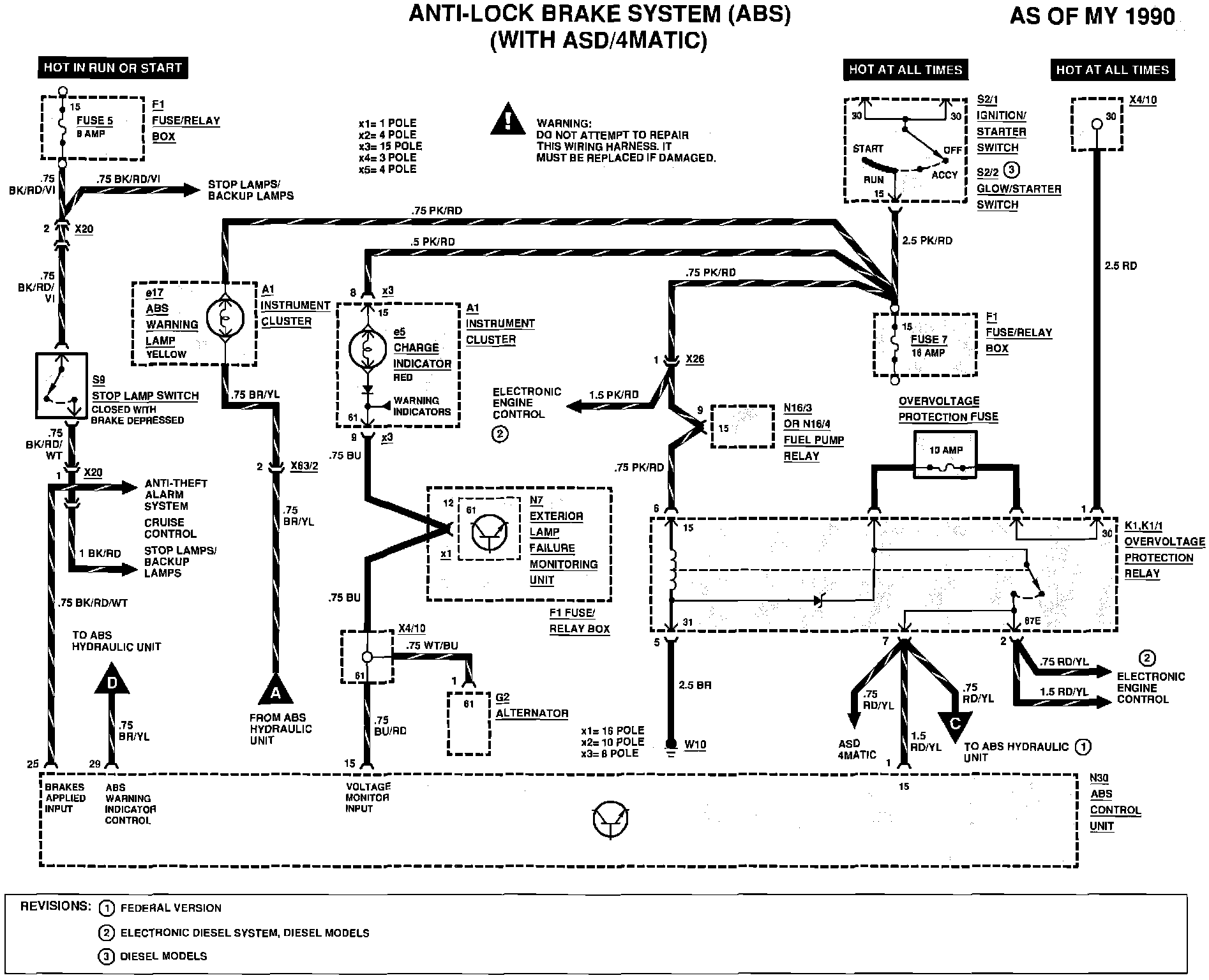

Anti-Lock Brake System (ABS) W/ ASD/4Matic:
