ASR II - New Version Charging Pump

91mercedes02

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: February 1991


SUBJECT: ALL MODELS ASR 11 CHARGING PUMP MODIFIED


REF. NO. 42/119

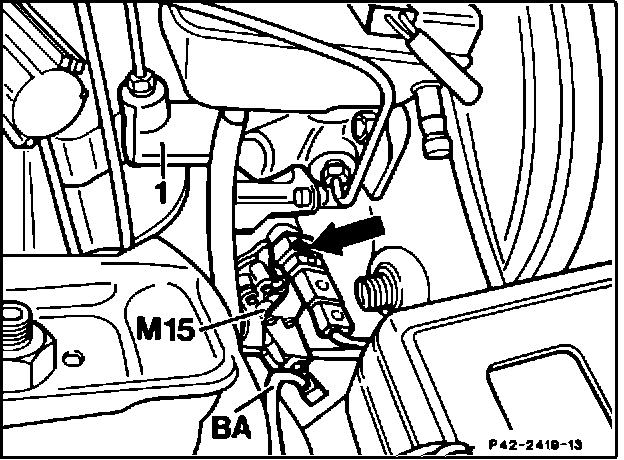

Figure 1:

As of August 1990 production, a modified ASR charging pump (M15) is installed. It can also be installed in earlier production vehicles (Service Microfiche Job No. 42-863*) in case of leaks at the connection BA (Figure 1).

Following an installation of the new version pump, only bleed it at the vent screw SP (see Service Microfiche Job No. 42-860*.

Note: For a limited period of time, the modified pump will be marked on the connector (arrow) with a white dot (Figure 1). The part number was not changed.


*Presently shown only for Model 129

In Case of Warranty

Time Allowance

Operation Number Description Time/Model

02-4231 ASR 11 Charging pump, Repl./Bleed 0.8 hr. / 82/83/85/88/90
02-4233 ASR 11 Charging pump, Repl./Bleed 0.9 hr. / 47/71/72/73/74/75


Damage Code

Code Description

43172** ASR Charging pump, leaking
