RA42001240525X Remove/Install Rear Brake Control Cable

Removal and installation of rear brake control cable

Preceding work:
Remove brake shoes for parking brake (42-0530).
Remove rear exhaust heat shield (49-0100).

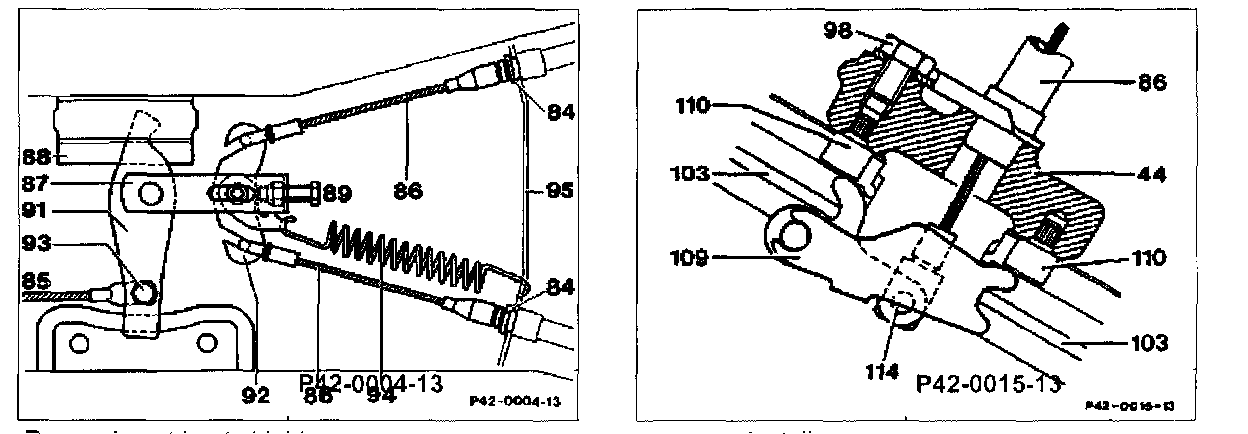

- Remove rear exhaust heat shield.
- Unhook return spring (94) on holder (95).
- Turn adjustment screw (89) back on adjustment bracket (87).
- Remove front brake control cable (85) on intermediate lever (91). Replace self-locking hex. head bolt (93).
- Unhook intermediate lever (91) on mount (88) on frame floor.
- Unhook brake control cables (86) on lever (92).
- Remove spring clip (84). Pull brake control cable (86) out of holder (95).
- Remove spreader lock (109) by pulling out pin (114).
- Screw self-locking hex. head bolt (98) out on wheel carrier. When installing use new self-locking hex. head bolt. Remove brake control cable (86).

- Adjust parking brake after installing rear brake control cable. Adjustments
