300 CE, E & TE

REMOVAL

On 300SE, SEL, 420SEL and 560SEC and SEL series vehicles using Girling type brake calipers, refer to 190D and E Series removal and installation procedures.
1. Raise and support vehicle.
2. Remove tire and wheel assembly.
3. Open brake caliper bleeder screw, then pump brake fluid out of front brake circuit.
4. Disconnect and cap brake hose from brake line.
5. On vehicles with wear indicator, pull clip sensor cables out of caliper plug connector.
6. On all models, remove brake lining wear indicator plug connector and brake hose from caliper.
7. Cap caliper and brake hose openings.
8. Unstake locking plate, then remove caliper pin attaching bolts.
9. Remove caliper from steering knuckle.

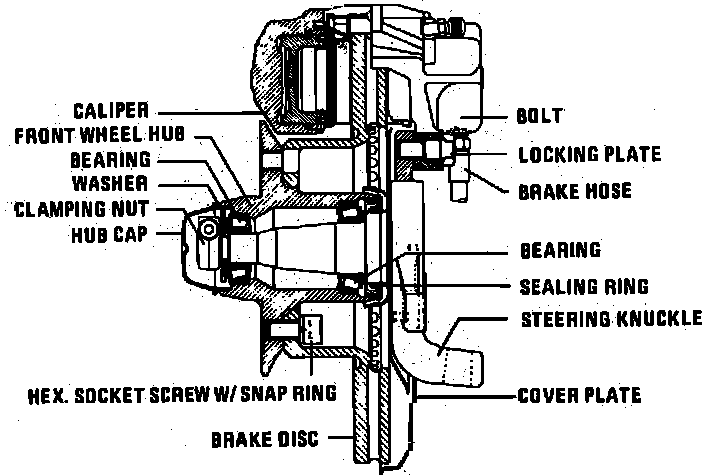

Fig. 1 Cross-sectional View Of Teves & Bendix Type Front Brake Calipers. 560SL.:

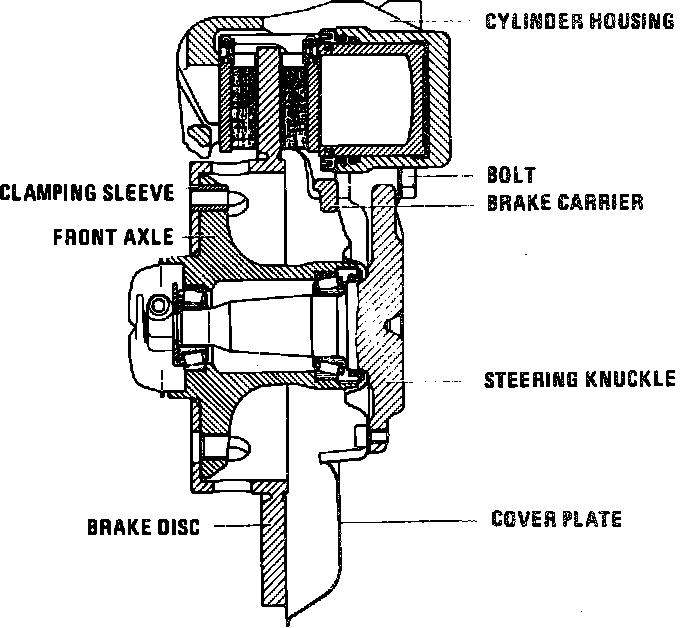

Fig. 2 Cross-section View Of Teves & Bendix Type Front Brake Calipers. 300SE & SEL, 420SEL & 560SEC & SEL:

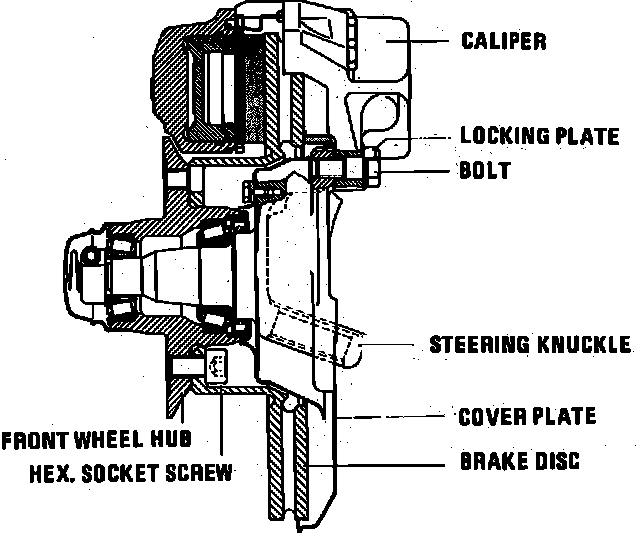

Fig. 3 Cross-sectional View Of Girling Type Front Brake Caliper. 300SE & SEL, 420SEL & 560SEC & SEL:

INSTALLATION

1. Using new locking plate and attaching bolts, install caliper onto steering knuckle, Figs. 1 through 3.
2. Torque caliper to steering knuckle to specifications.
3. Insert brake hose through bracket. Ensure bracket guide bracket is not damaged.
4. Connect brake hose onto caliper.
5. On vehicles with brake lining wear indicator, connect plug connector onto caliper assembly. Insert clip sensor cable into plug connector.
6. On all models, connect brake line onto brake hose. Ensure brake hose is not twisted.
7. Bleed brake system, and check brake system for leaks.

300CE, E & TE

REMOVAL

1. Open caliper bleeder screw and pump fluid from front brake circuit.
2. Disconnect and cap brake hose from brake line. Cap both the hose and line.
3. Using suitable screwdrivers, lift the two holding lugs located laterally.
4. Disconnect clip sensor cable from plug connection on caliper assembly. Do not pull on the cable.
5. Disconnect brake lining wear indicator and brake hose plug connector from wheel cylinder housing. Cap wheel cylinder housing brake line.
6. Loosen brake carrier attaching bolts, then remove floating caliper from steering knuckle.

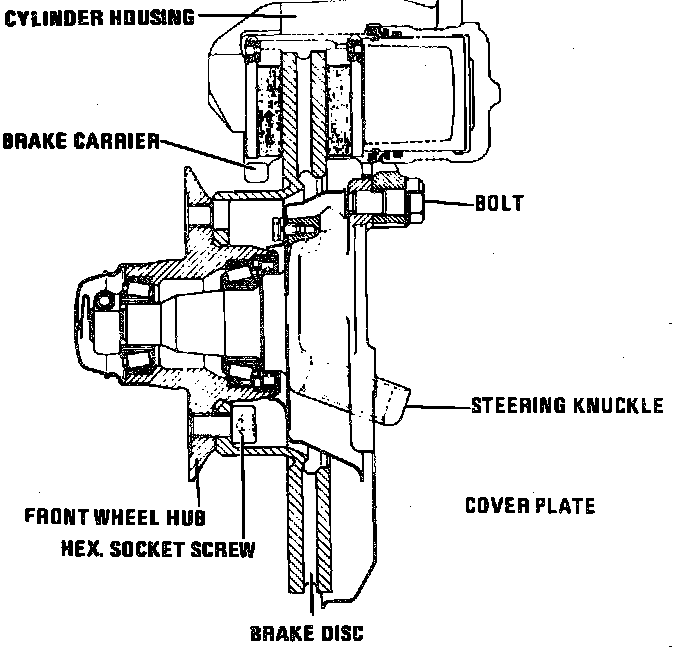

Fig. 4 Cross-sectional View Of Girling Type Front Caliper. 190D & E, 260E & 300CE, E & TE:

INSTALLATION

1. Using new attaching bolts, install caliper onto steering knuckle, Fig. 4.
2. Torque caliper to steering knuckle attaching bolts to specifications. If great force is needed to tighten attaching bolts, remove bolts and using a M12 X 1.5 tap, clean caliper bolt hole threads.
3. Connect brake hose to wheel cylinder housing.
4. Install wheel cylinder plug connector.
5. Insert clip sensor cable into plug connector.
6. Connect brake line to brake hose. Ensure brake hose is not twisted.
7. Bleed front brake system and check for leaks.
