300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Electrical Diagrams
>>
Power Seats
Power Seats

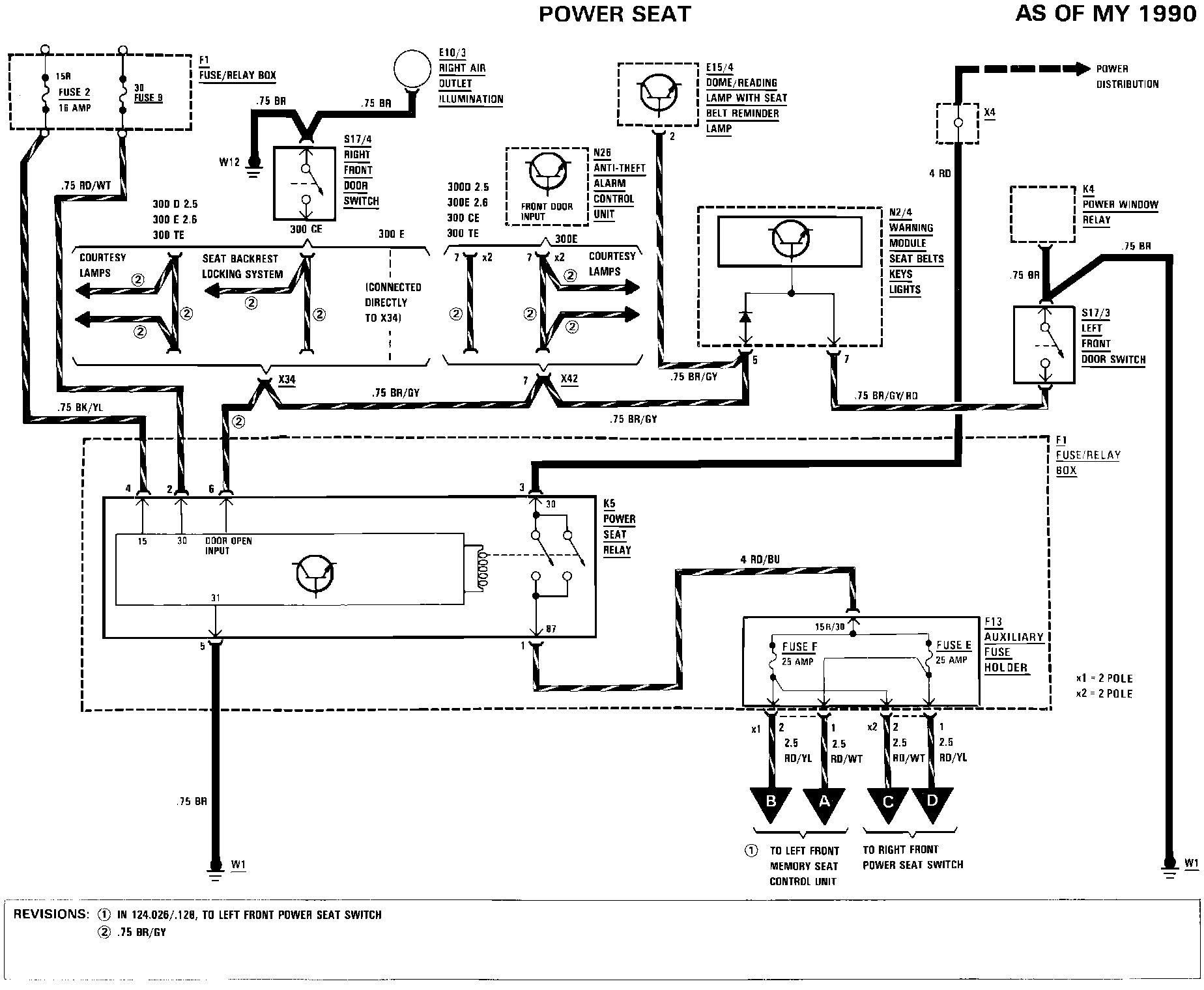

Power Seat:

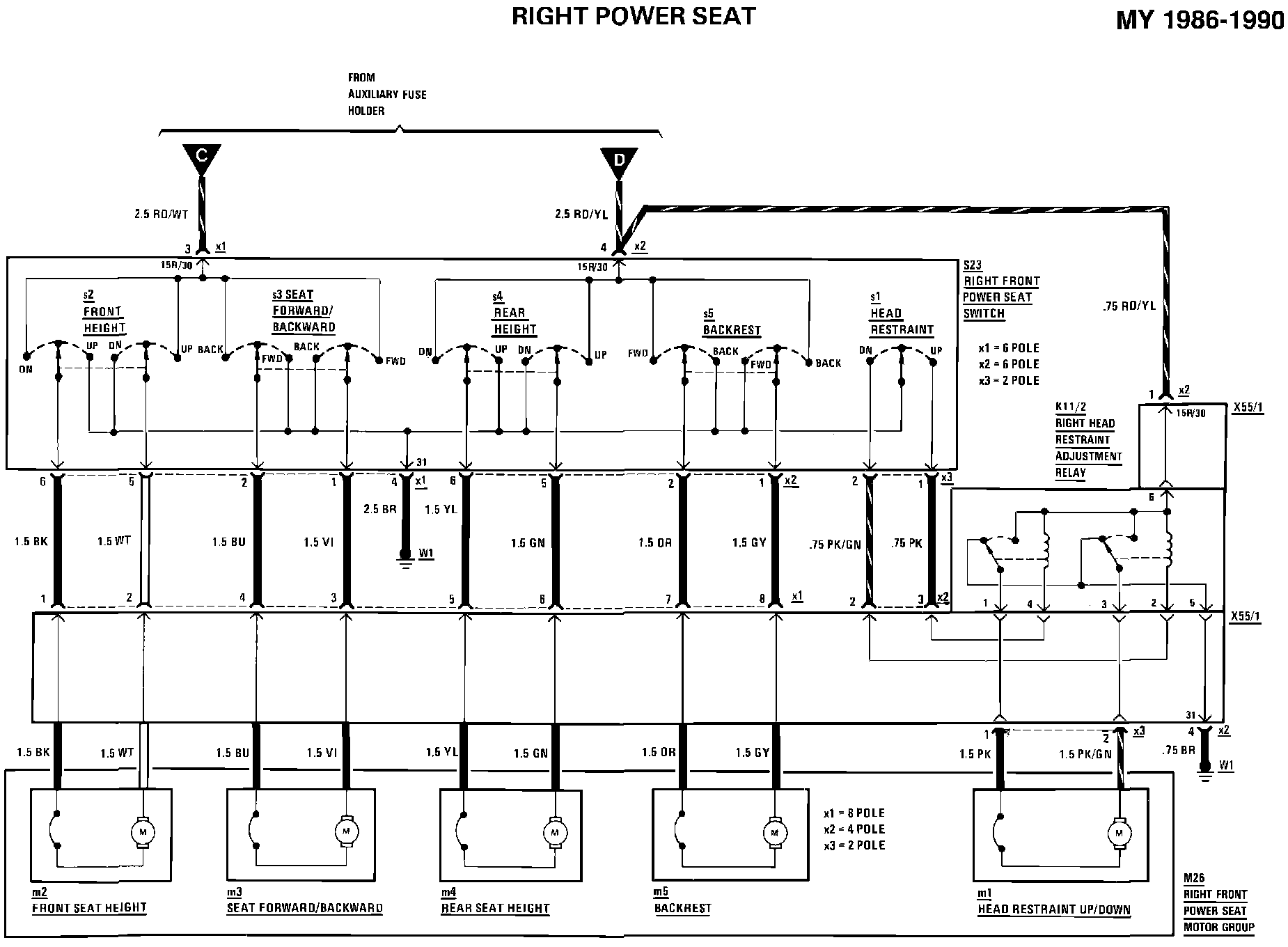

Right Power Seat:

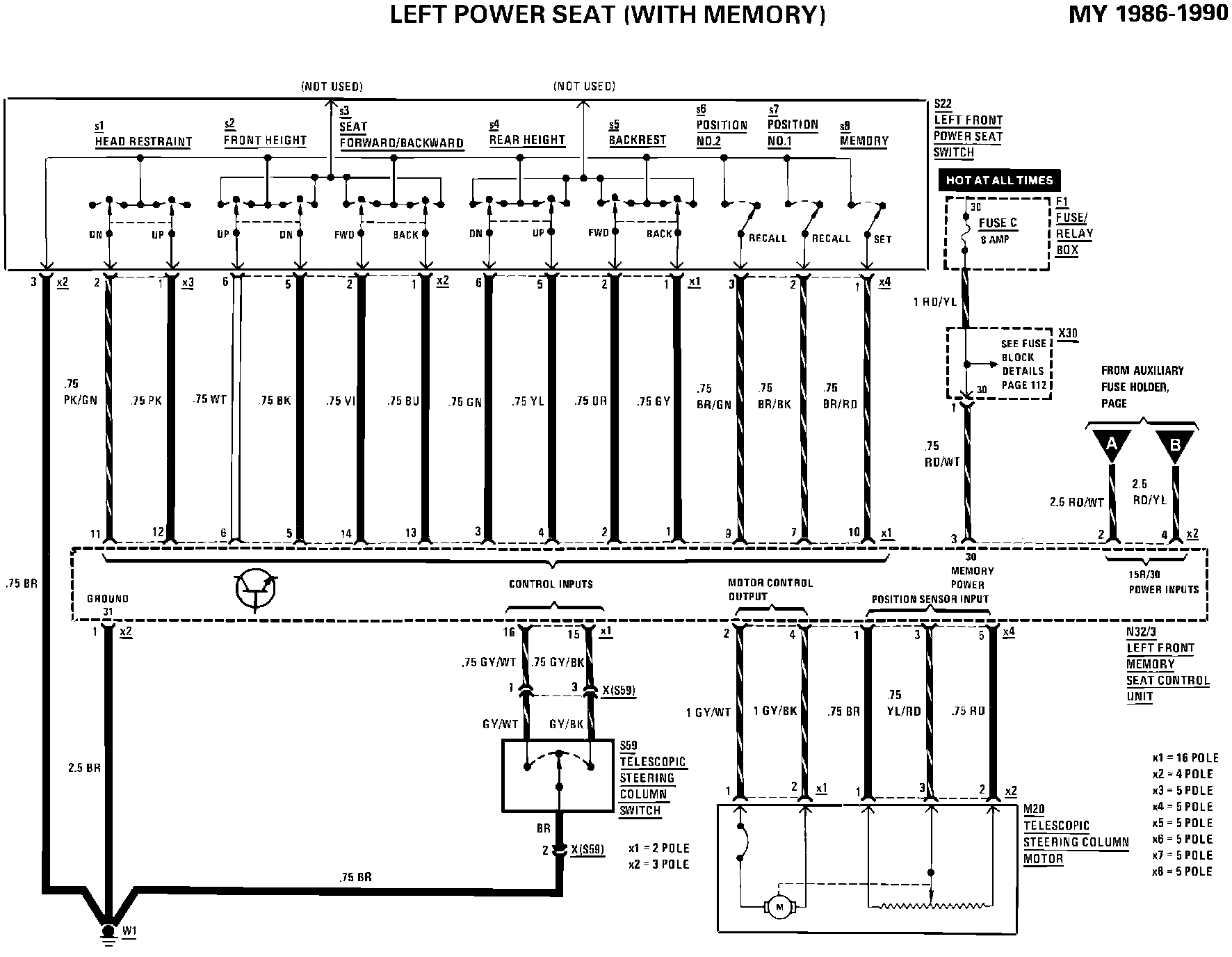

Left Power Seat (W/ Memory):

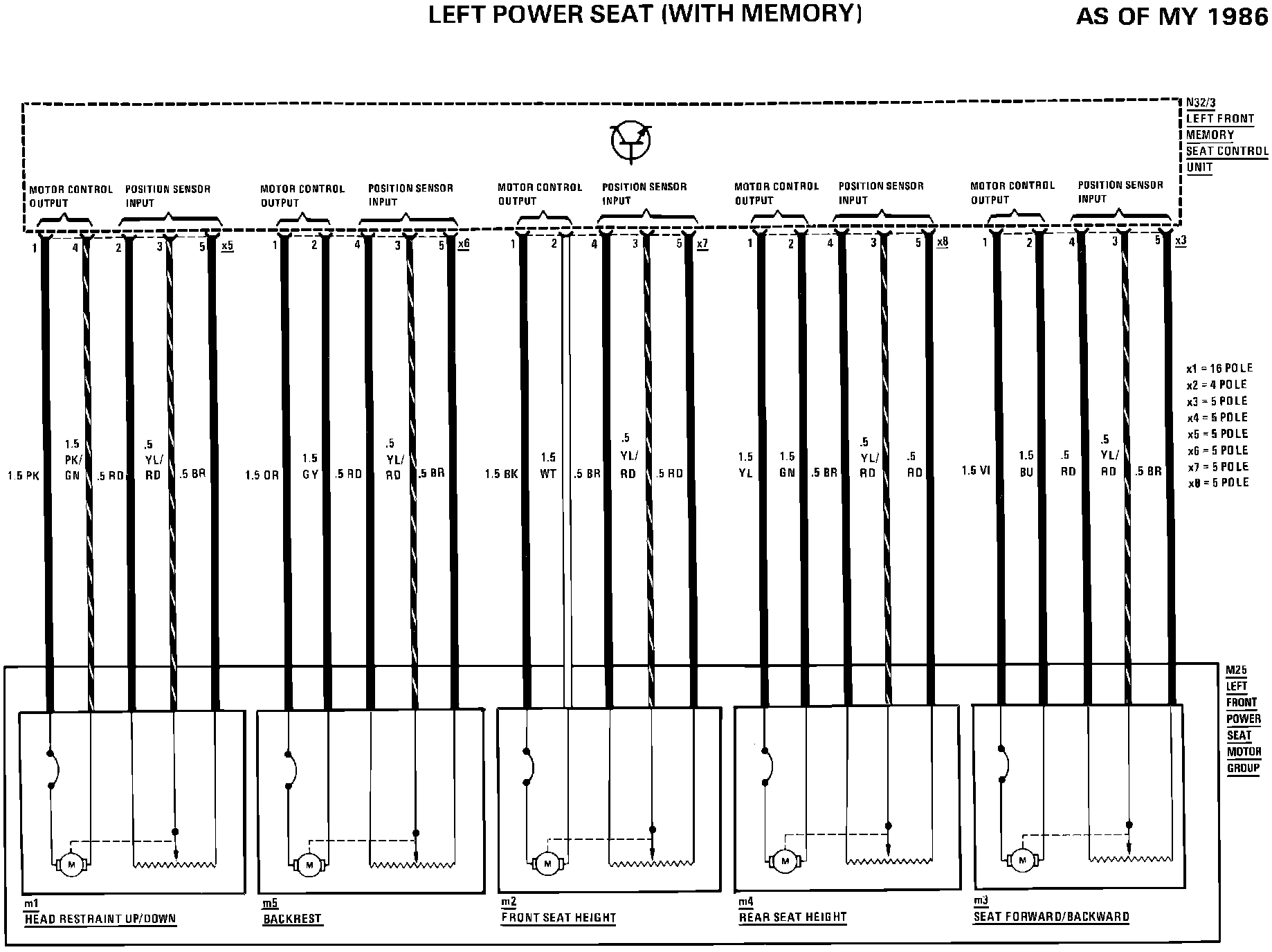

Left Power Seat (W/ Memory):
