Sunroof - Modified Control Cable

91mercedes02

REF. NO. 77/21


TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: March 1991


SUBJECT: ALL MODELS WITH SLIDING/POP-UP ROOF MODIFIED CONTROL CABLE FOR SLIDING/POP-UP ROOF


As of April 1990 production, a modified control cable for the sliding/pop-up roof is installed in those vehicles so equipped. There is less friction with the modified cable.

The modified control cable can be installed in earlier production vehicles.





Note:
If a modified control cable is installed, the torque of the slip clutch must be set to 4-5 N-m (job no. 77- 195).

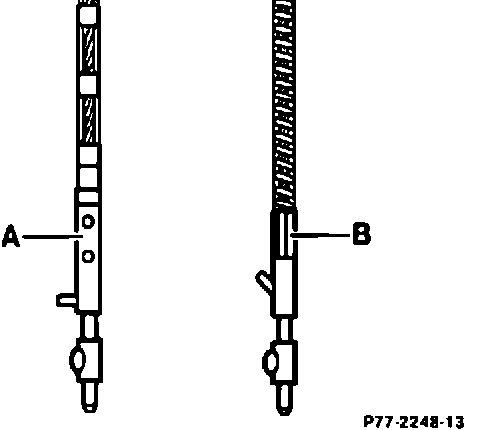

A Previous version cable with sliding sleeves B Modified version cable with continuous casing


Parts Information
Model Part Name Part Number (Old) Part Number (New)

124 coupe, Control cable 124 780 08 89 124 780 14 89
201 sedan

124 sedan Control cable 124 780 09 89 124 780 13 89

124 wagon Control cable 124 780 11 89 124 780 15 89

126 short Control cable 126 780 11 89 126 780 16 89

126 long Control cable 126 780 13 89 126 780 17 89

126 coupe Control cable 126 780 07 89 126 780 18 89
