Sunroof / Moonroof Windguard: Service and Repair

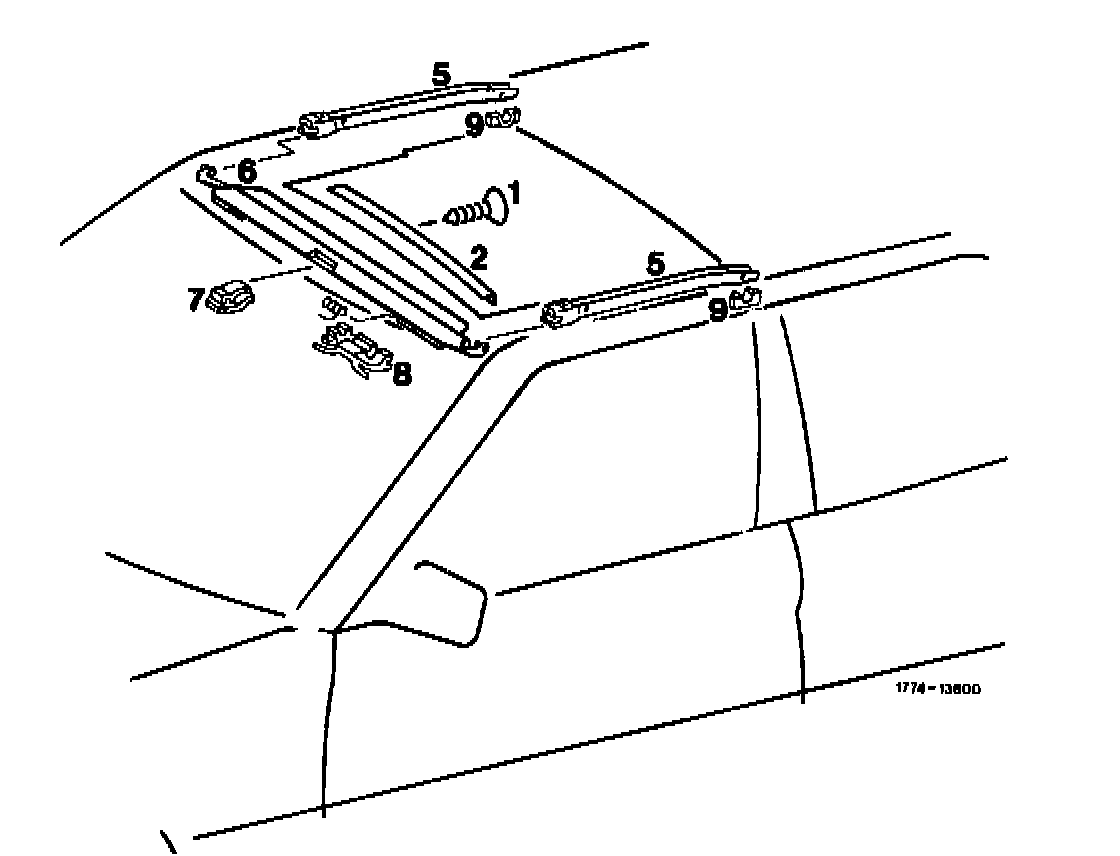

Removal and Installation





Screw (1)
unscrew 6 each, screw in

Chrome-plated rail (2)
remove and install

Holddown (5)
unclip and clip in 2 each from mount (9) and pull out of wind deflector (6) toward the rear

Wind deflector (6)
pull out of center mount (7)

Wind deflector (6)
carefully push out of duct including mount (8) left and right by means of a screwdriver

Wind deflector (6)
remove in upward direction
