Sunroof / Moonroof Weatherstrip: Service and Repair

Removal/Installation of Sealing/Rails





Sun roof
open, do not remove

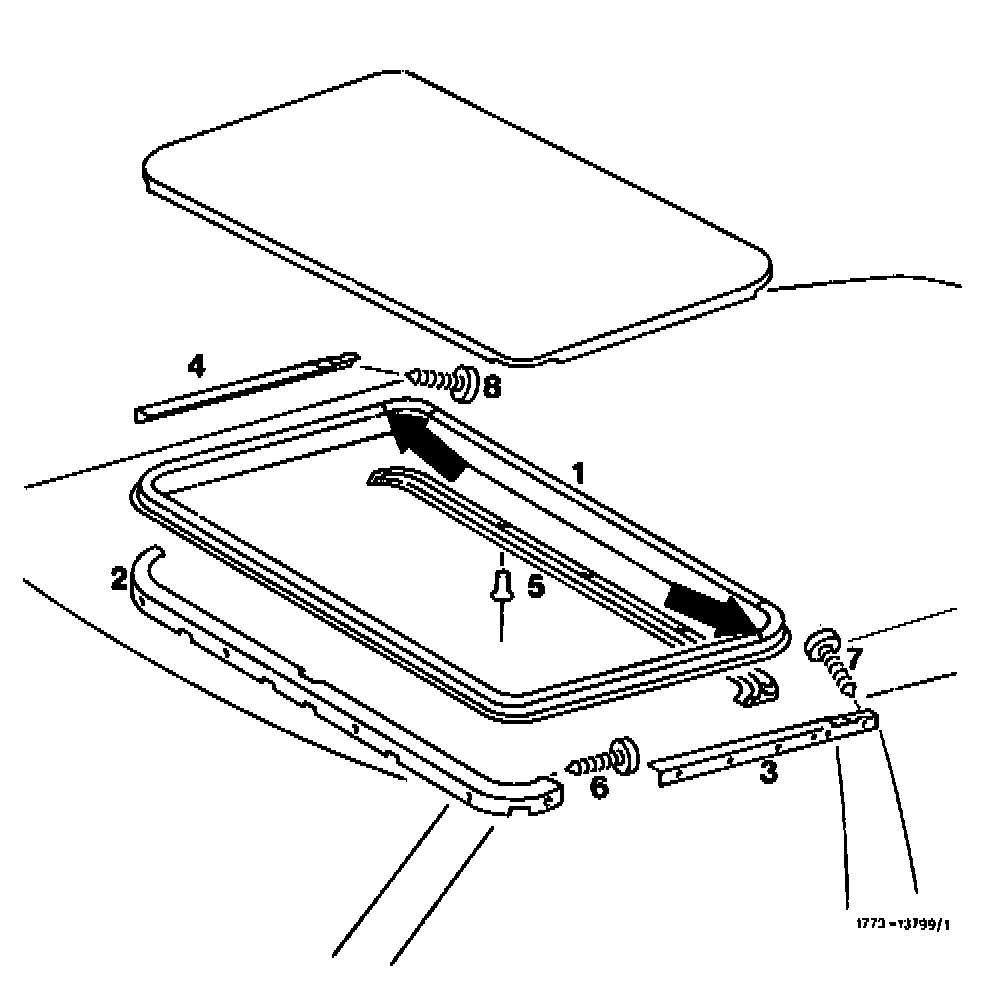

Installation position of gasket
mark on roof cutout at joins (arrows)

Gasket (1)
pull out of holding rails 2, 3, 4 and 5

Wind deflector
remove and install. Service and Repair

Screw (6)
unscrew 6 ea., screw in

Holding rail (2)
remove and install (refer to installation note)

Screw (7) and (8)
unscrew 8 ea., screw in

Holding rails (3) and (4)
push toward the rear and remove in upward direction.

Holding rail (5)
can be removed and installed only upon removal of sun roof frame and drilling out of rivets (11 each)

Gasket (9)
push into holding rails 2, 3, 4 and 5. The serrations on plug-in profile should point in upward direction.

Installation Note:
To make sure that the gasket (1) obtains an adequate hold in holding rails 2, 3 and 4, a gap dimension of 3 mm between holding rail and roof panelling should be maintained.
