Sunroof / Moonroof Motor: Locations

Component Location

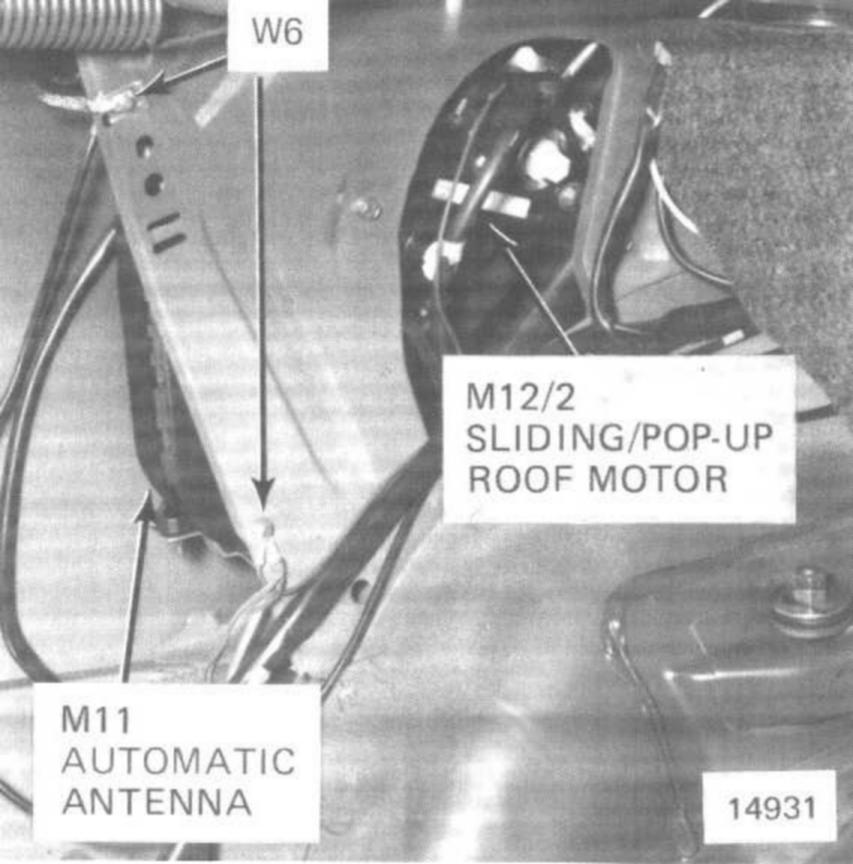

SEDAN





Component ID M12
Component Name Sliding/pop-up roof drive unit
Location Left front corner of trunk (sedan)

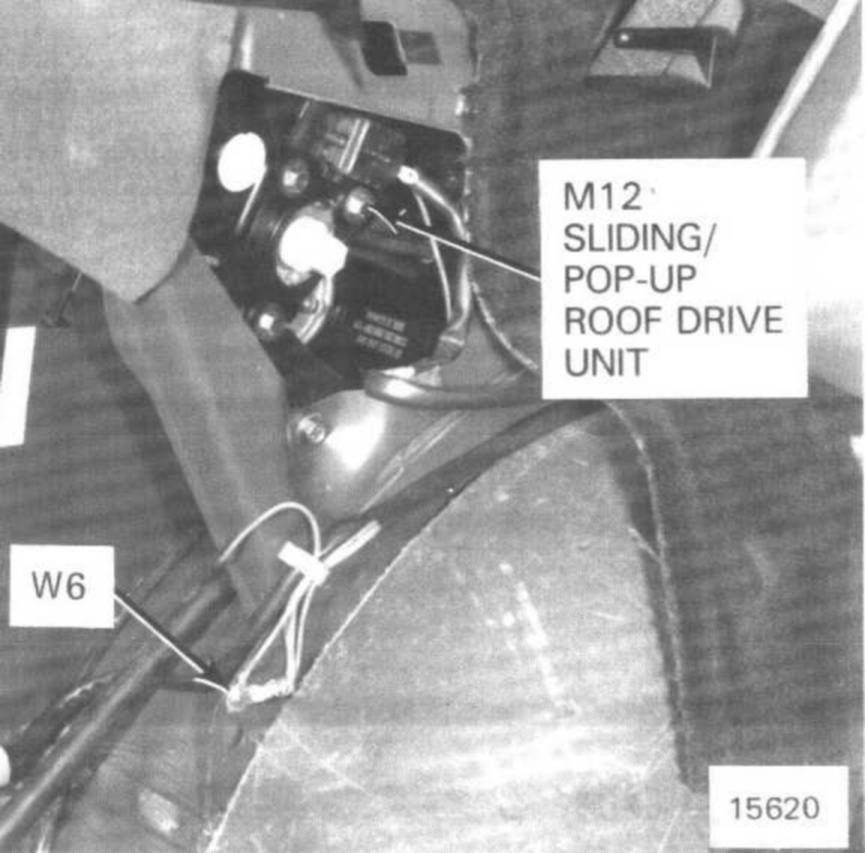

WAGON





Component ID M12
Component Name Sliding/pop-up roof drive unit
Location Left rear quarter panel (wagon)
