Sunroof / Moonroof Cable: Adjustments

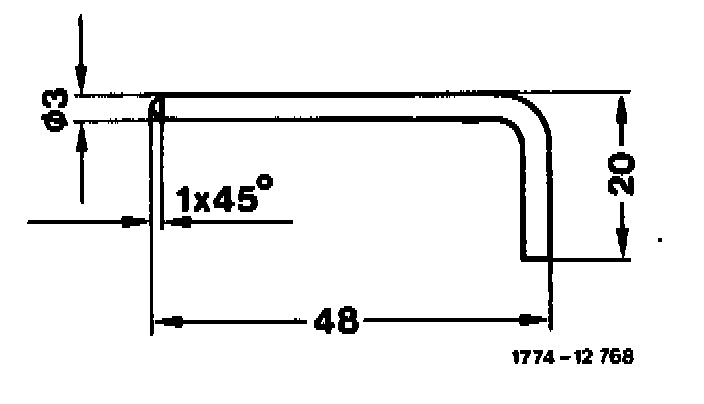

1 Make centering bolt (if not available).

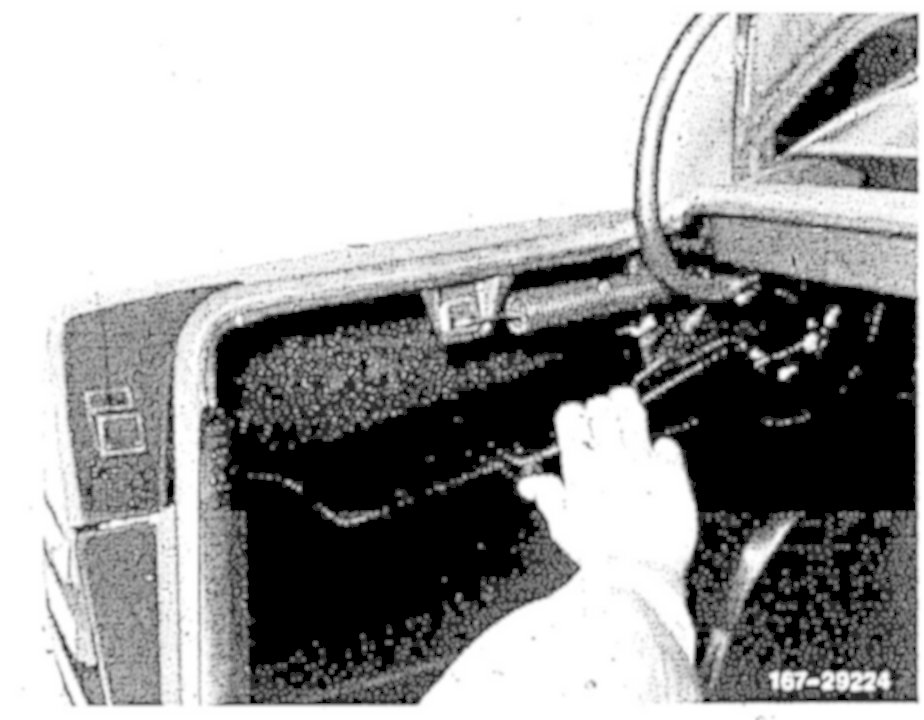

2 Remove trim on rear fender inside left.
3 Push actuating switch to "Lift roof" until the sun roof top panel is completely lifted.

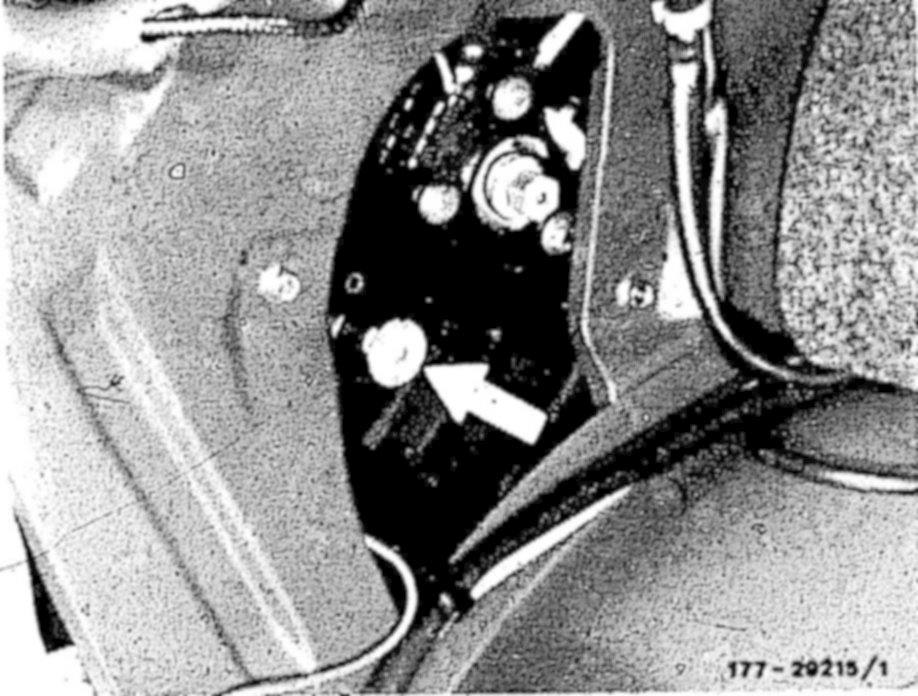

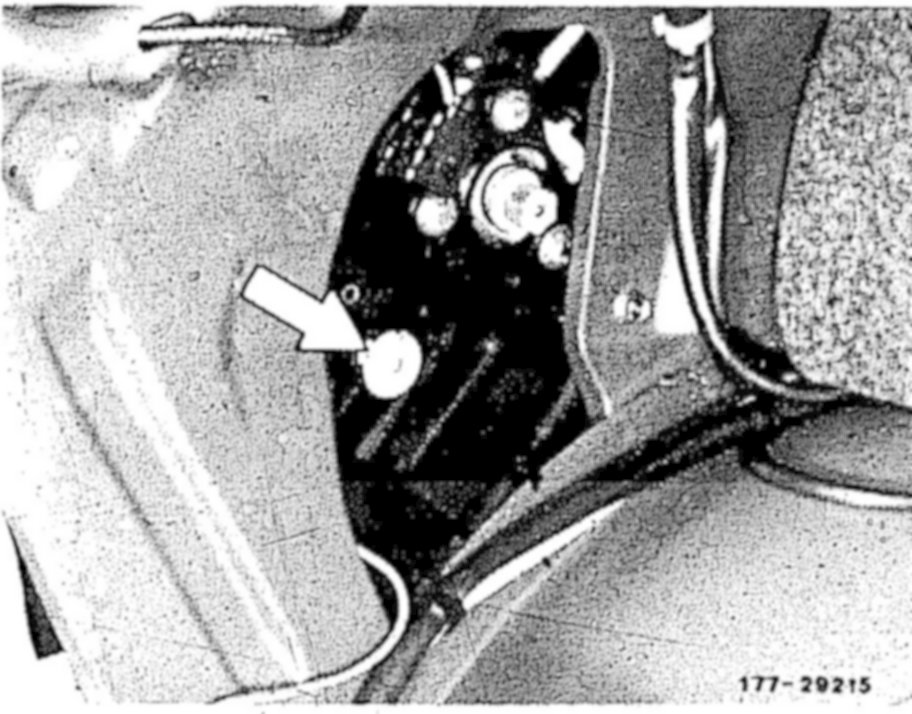

4 Make adjusting knob into adjusting position (pull out up to stop and push in for approx. 3 mm).

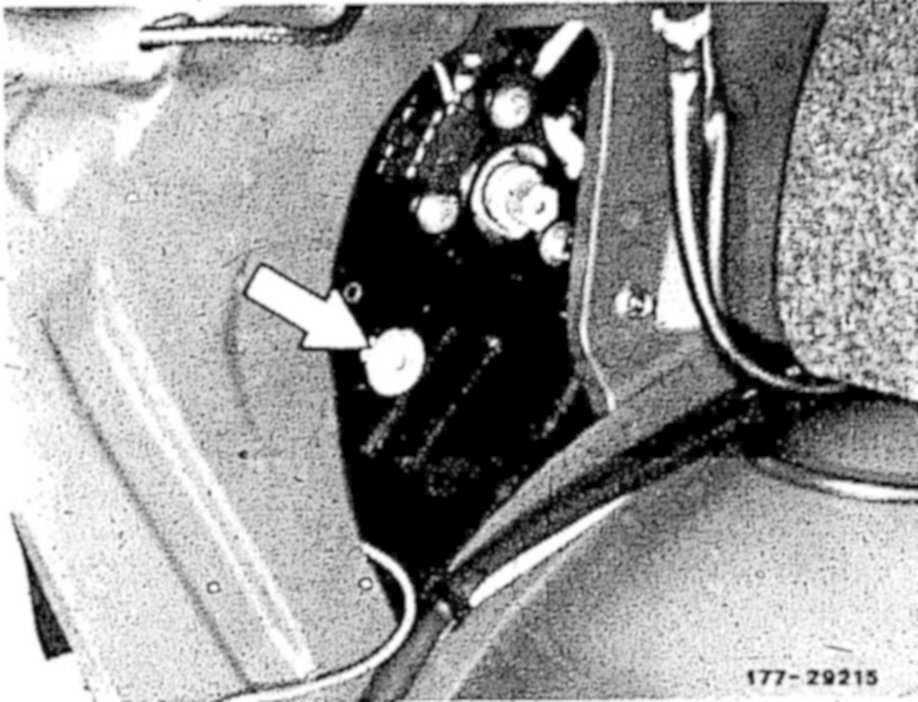

5 Turn adjusting knob until the centering pin can be completely plugged into centering bore and the notch on knob points in direction of bore.

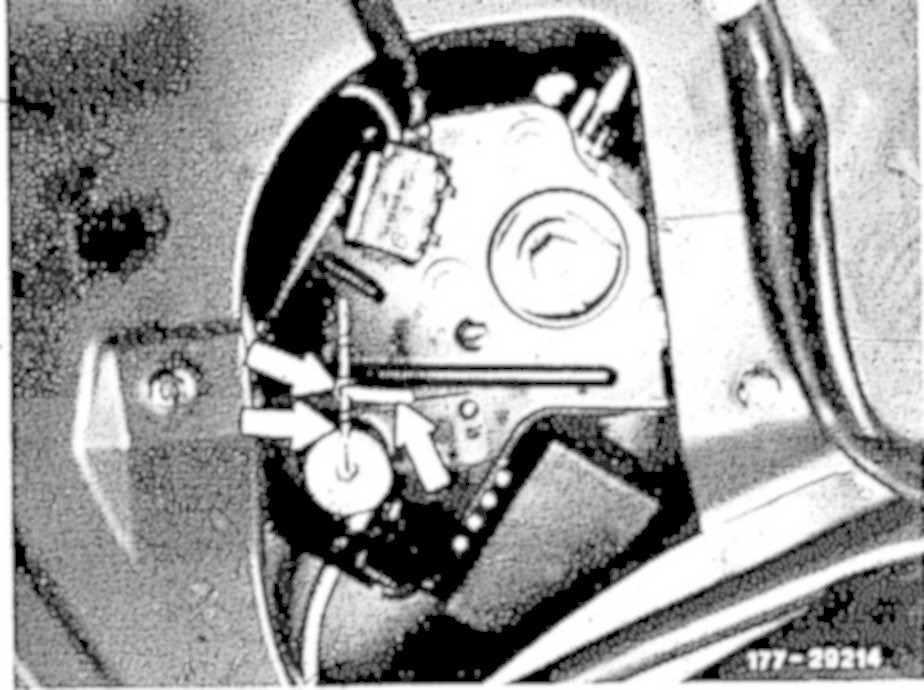

6 Push adjusting knob and remove centering pin.

CAUTION: With centering bolt plugged in or adjusting knob pulled, do not operate sun roof motor, since otherwise the control unit may be damaged or the setting may be maladjusted.





7 It the sun roof does not close accurately with this basic adjustment, move adjusting knob again into adjusting position and perform precision adjustment by turning knob:

Turn knob clockwise = sun roof forward
Turn knob counterclockwise = sun roof backward

Reference values: One turn of knob changes location of sun roof by approx. 45 mm.

8 Push adjusting knob and actuate sun roof switch.
9 Mount trim on rear fender inside left.
