Seat Temperature Control Module: Locations

Component Location

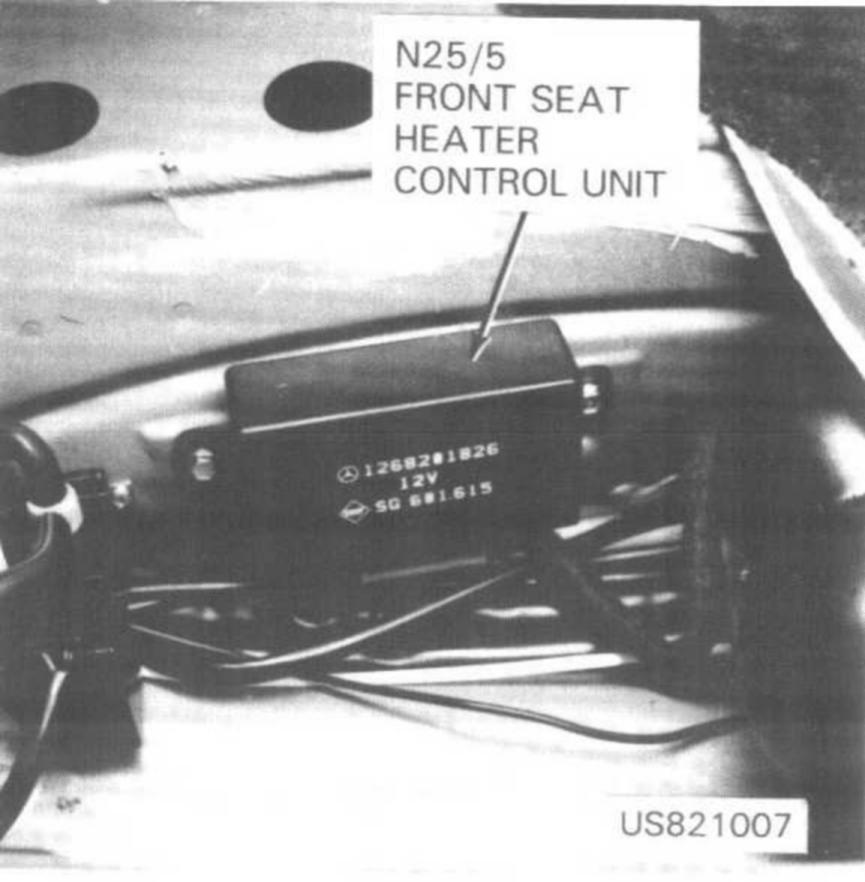

Component ID N25/5
Component Name Seat heater control unit, front
Location Under left side of rear seat
