Rear Door Actuator

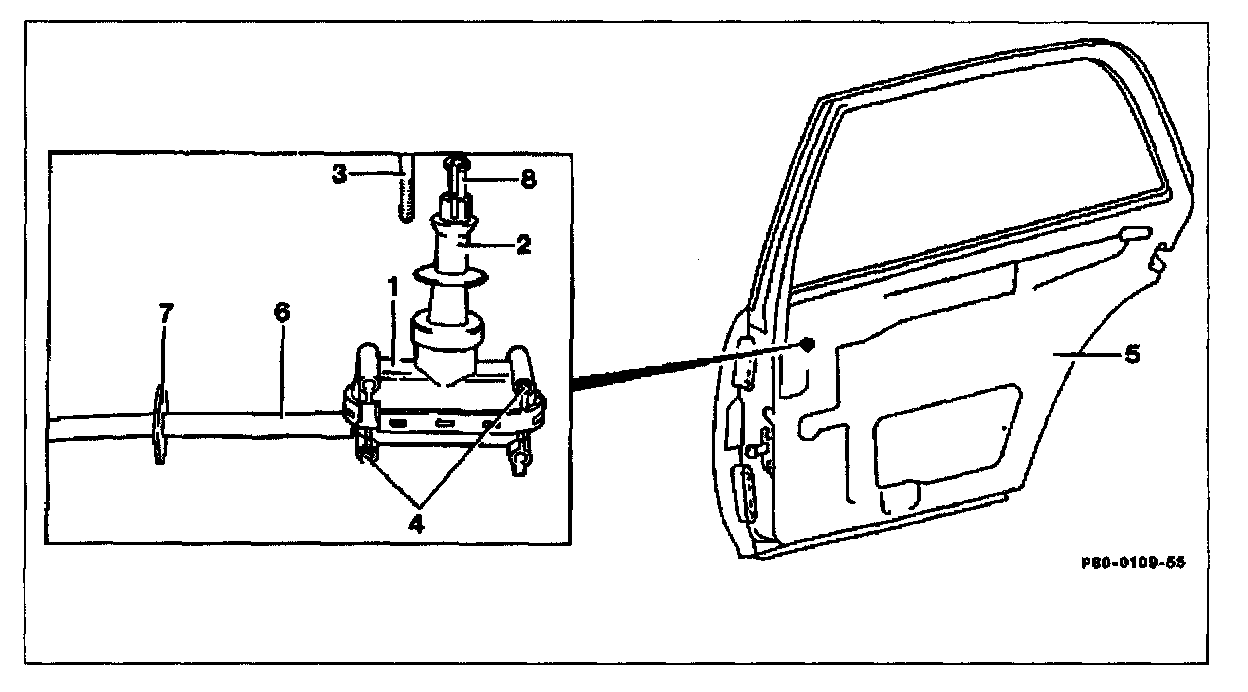

Removing and installing rear door actuator





- Remove door liner (5).
- Unclip plastic cover, if necessary.
- Push back sliding sleeve (2).
- Press out shift rod (3).
- Slacken bolts (4).
- Detach actuator (1).
- Disconnect connecting hose (6).
- Move actuator (1) into installation position by pushing sliding sleeve (2) back fully and withdrawing shift rod mounting (8) as far as detent.
- Install actuator (1) in reverse order.
- Push rubber disk (7) up to opening for protective hose in rear door.
