Remove/Install Gearshift Lever Cover

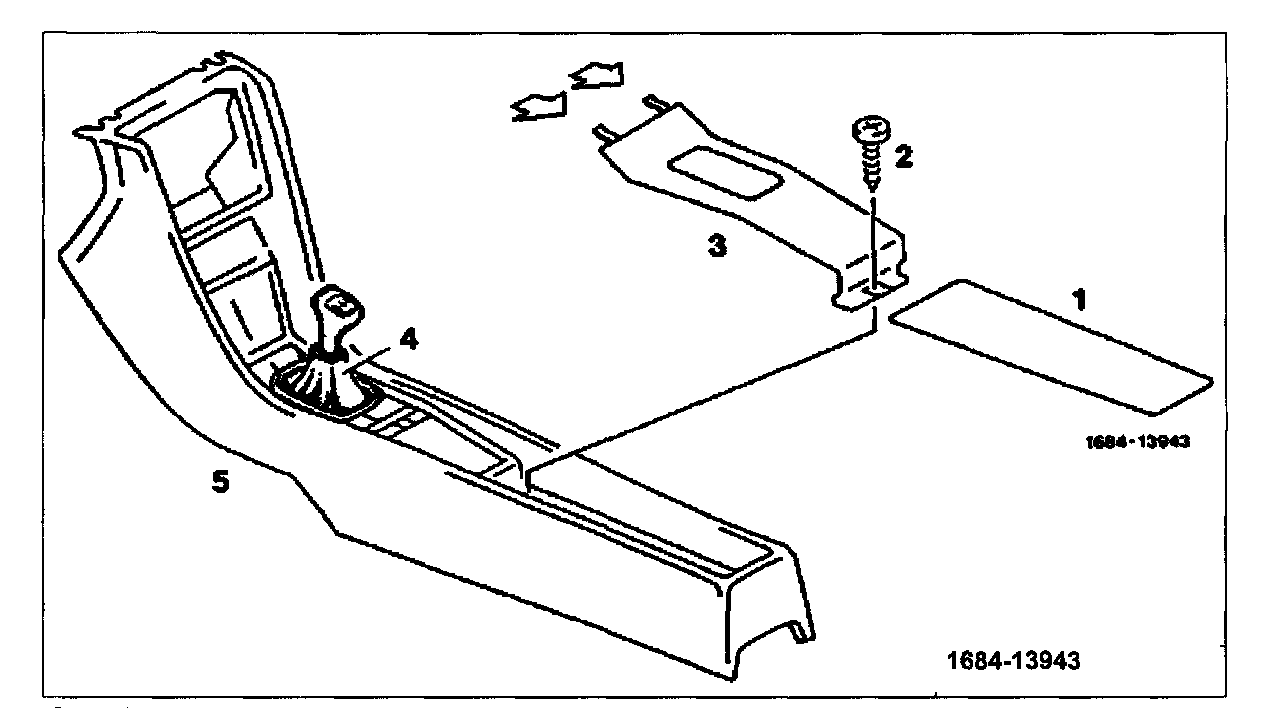

Removal and Installation of cover on Shift Lever






1. Carpeting (1) remove

2. Shift lever sleeve (4) pull off

3. Screw (2) unscrew

4. Cover (3) lift at the rear, as well as at cutout of shift lever and remove toward the rear. During installation, pay attention to correct seat of holding cams (arrows).


For further installation proceed vice versa.
