Center Console with Oddments Tray or Cassette BoxModel 124
An oddments tray or a cassette box with auxiliary 12 volt socket can be installed in the center console in place of the ashtray housing. It can also be fitted at a later date.
The installation instructions are subdivided into the following sections:
A. Installation of oddments tray
B. Installation of cassette box
C. Parts ordering note
A. Installation of Oddments Tray

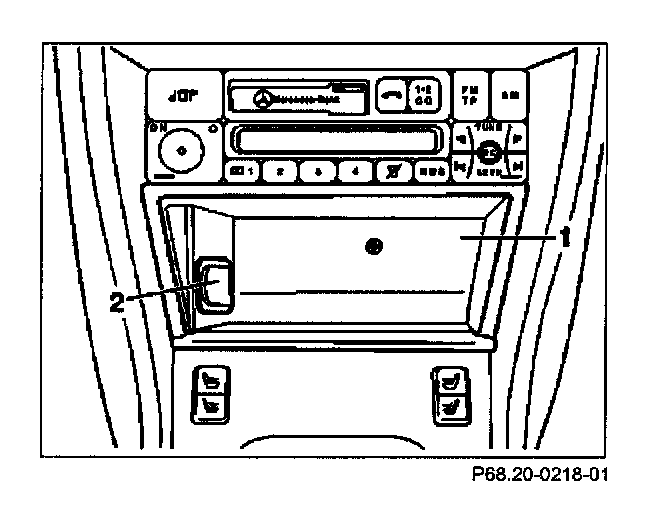

Oddments Tray (1) With 12 Volt Socket (2):
1. Remove cover on shift lever.

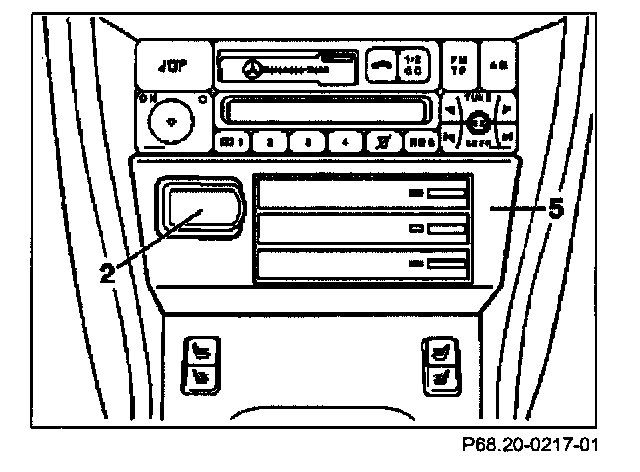

Cassette Box (5) With 12 Volt Socket (2):
2. Open ashtray housing and remove ashtray insert.
3. Remove ashtray housing (2 screws) and disconnect electrical connections.

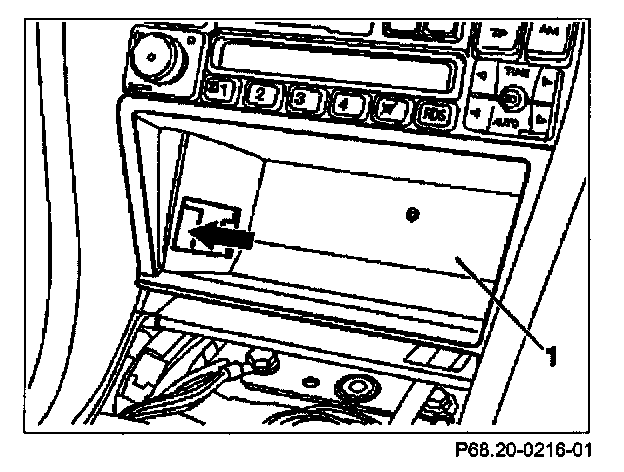

4. Install oddments tray (10 in place of ashtray housing and mark side cutout for 12 volt socket (2) on center console (arrow).
5. Remove oddments tray (1).

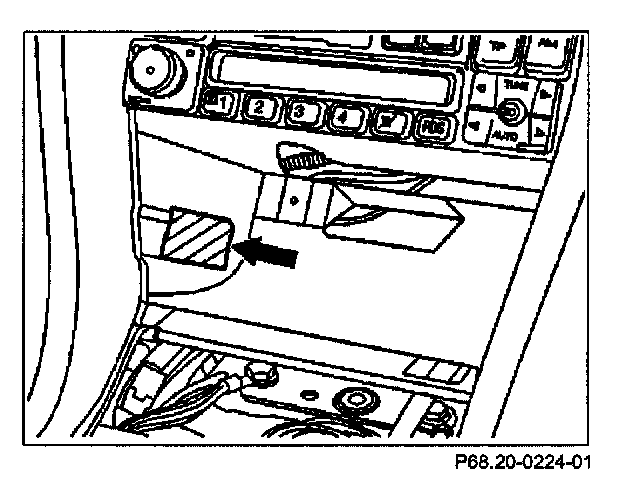

6. Prepare cutout (shaded area, arrow) on center console, using sabre saw if necessary.
7. Make electrical connection (4) in cutout.

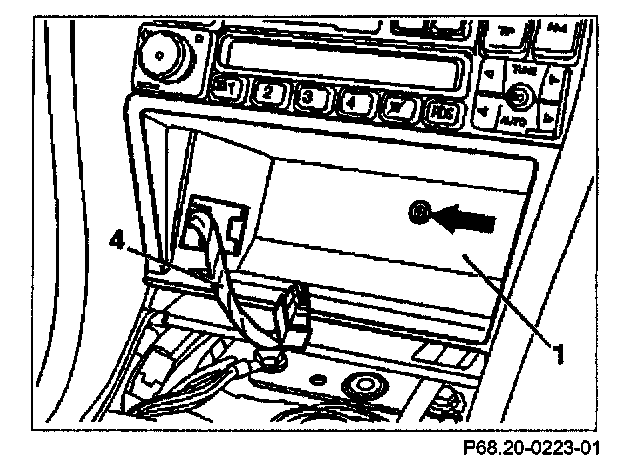

8. Install oddments tray (1) without 12 volt socket (2) while making the electrical connection (4) and fastening with screw,(arrow).

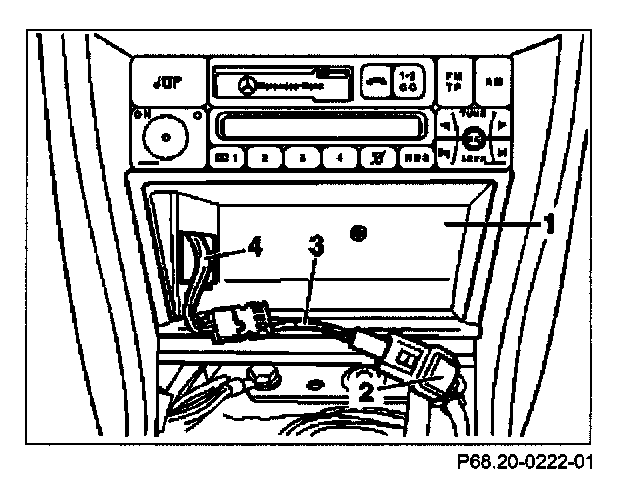

9. Plug adapter cable (3) into the 12 volt socket and connect to electrical connection (4).

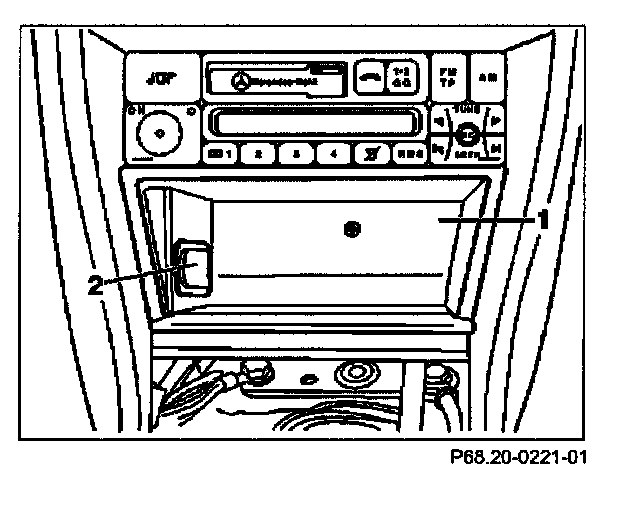

10. Install 12 volt socket (2) in oddments tray (1) and lock in position.
Note: installed position.
11. Install cover on shift lever.
B. Installation of Cassette Box
1. Remove cover on shift lever.
2. Open ashtray housing and remove ashtray insert.
3. Remove ashtray housing (2 screws) and disconnect electrical connections.

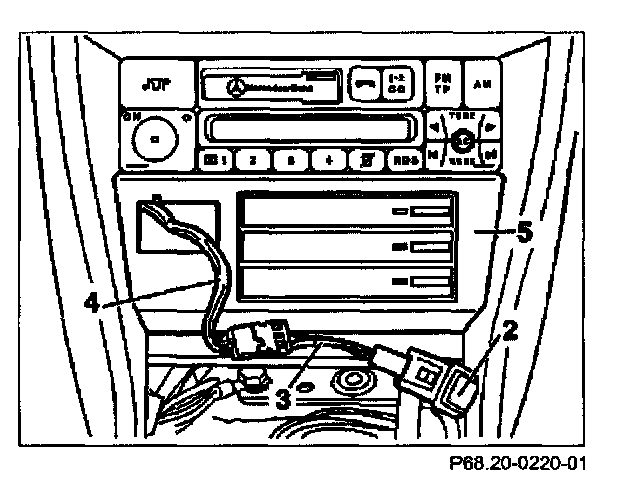

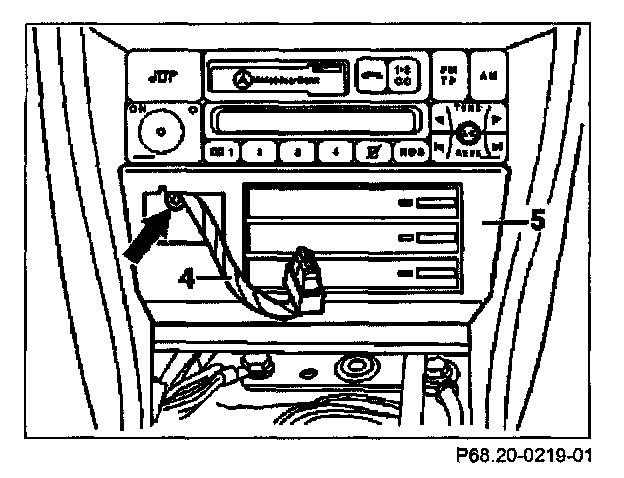

4. Route electric cable (4) through the opening in the cassette box (5).
5. Insert cassette box (5) in center console and fasten with existing screw (4, 8 X 16) (arrow).
6. Plug adapter cable (3) into the 12 volt socket (2) and insert socket in cassette box (5) and lock in position. Note installed position.
7. Install cover on shift lever.
Note: Plug for 12 volt socket is commercially available and the number is DIN/ISO no.4165.
