Remove/Install Lateral Trim on Center Console

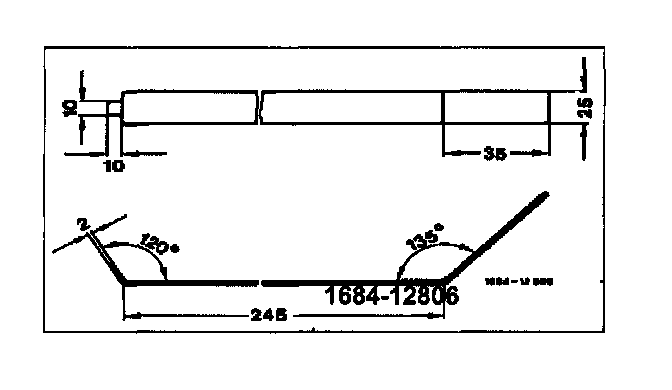

Removal and Installation of Lateral Trim on Center ConsoleSelf-made tool
1. Remove floor mat and damping in driver's compartment.
2. Remove floor mat and damping in driver's compartment.

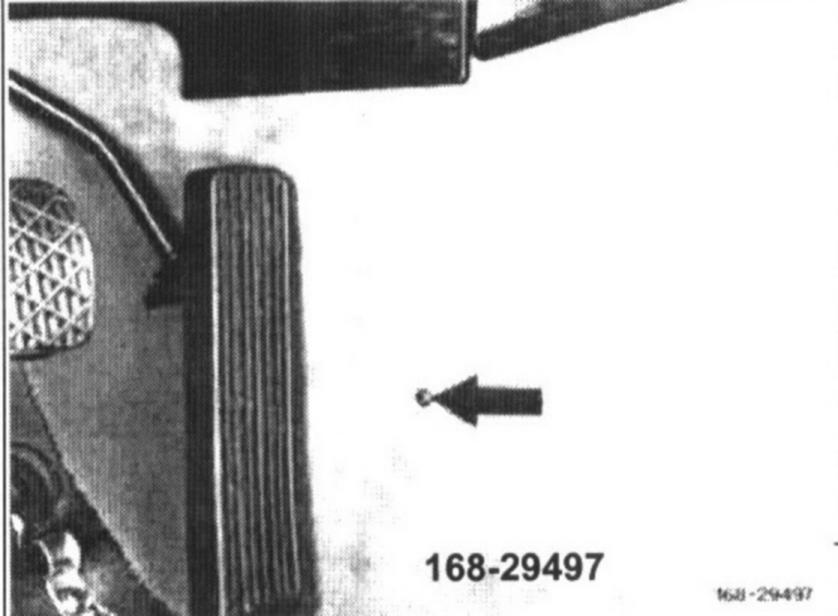

Unscrew front fastening screw left and right.

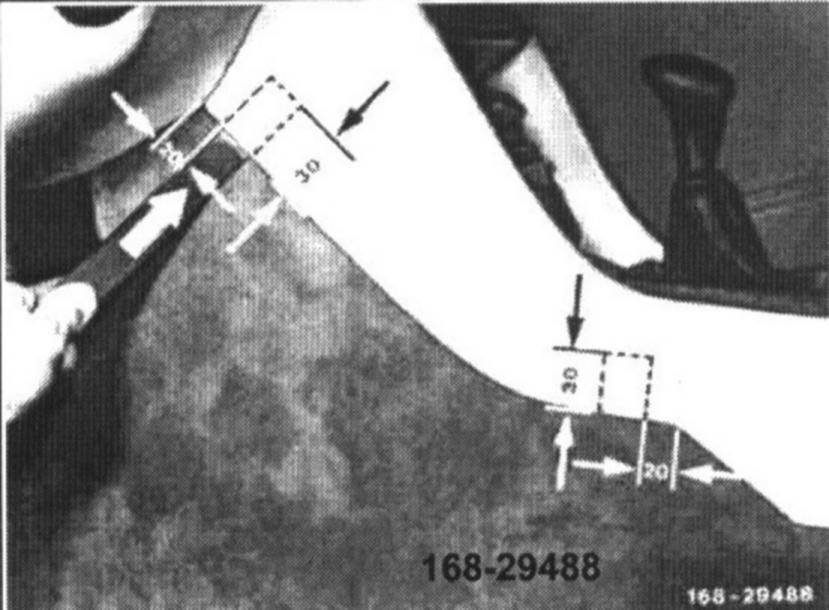

3. Mark location of holding links on center console.

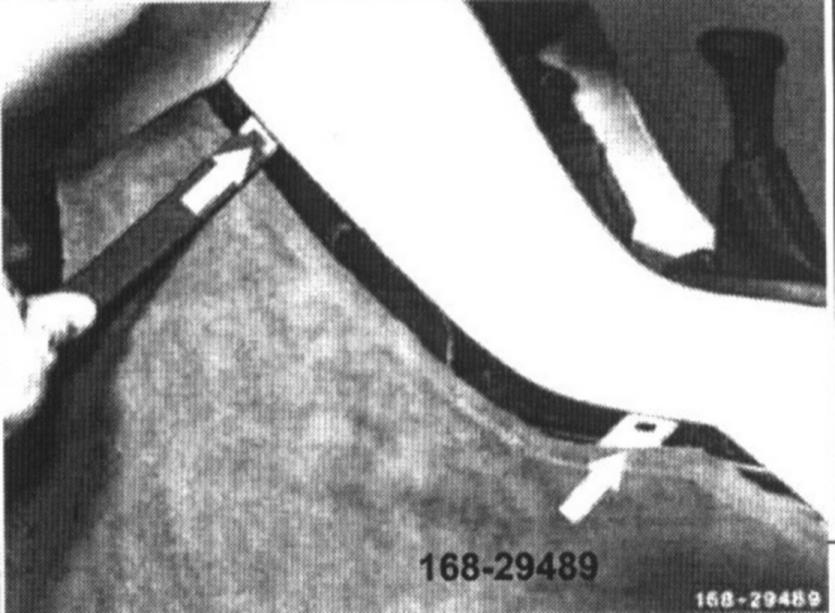

4. Disengage holding links with special tool and pull out tunnel lining.
Note: Use offset end with 135° for removal, the other end with 12O° for installation.
Installation
5. Push holding link outward with special tool and introduce.
6. For further installation proceed vice versa.
