Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Body and Frame >> Frame >> Trailer Hitch >> Service and Repair >> AP31.11-P-3121BA Lubricate and Check Operation of Trailer Hitch With Detachable Ball Neck

AP31.11-P-3121BA Lubricate and Check Operation of Trailer Hitch With Detachable Ball Neck



AP31.11-P-3121BA Lubricate And Check Operation Of Trailer Hitch With Detachable Ball Neck

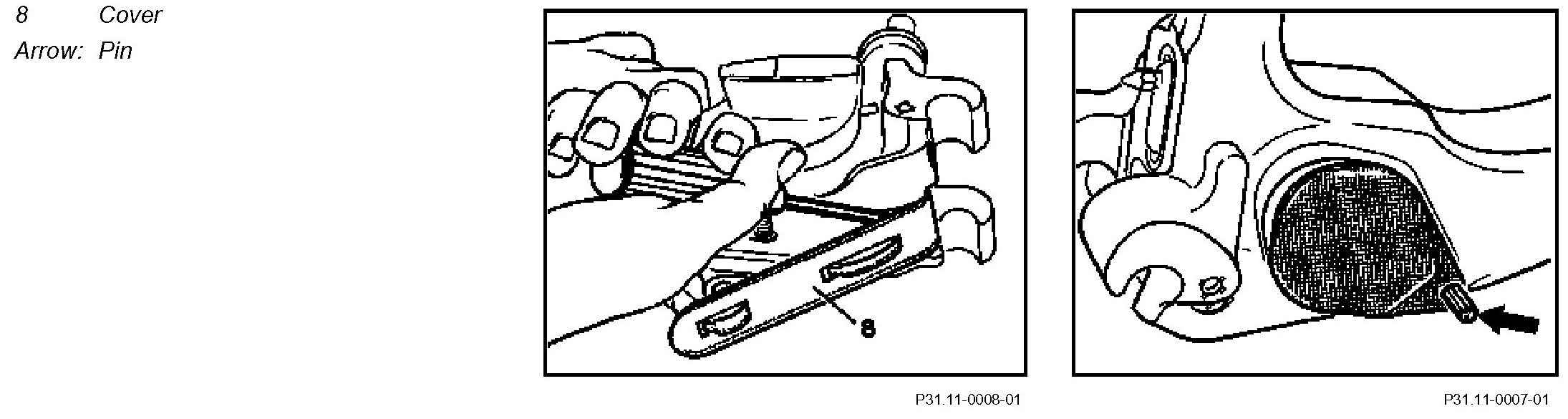

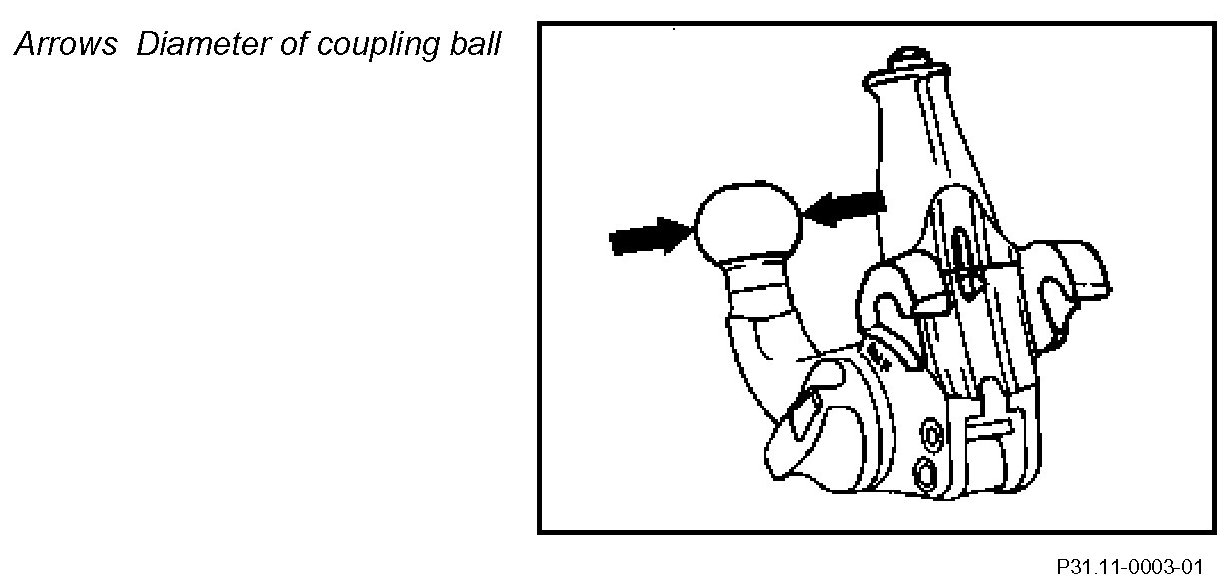

Component Identification:

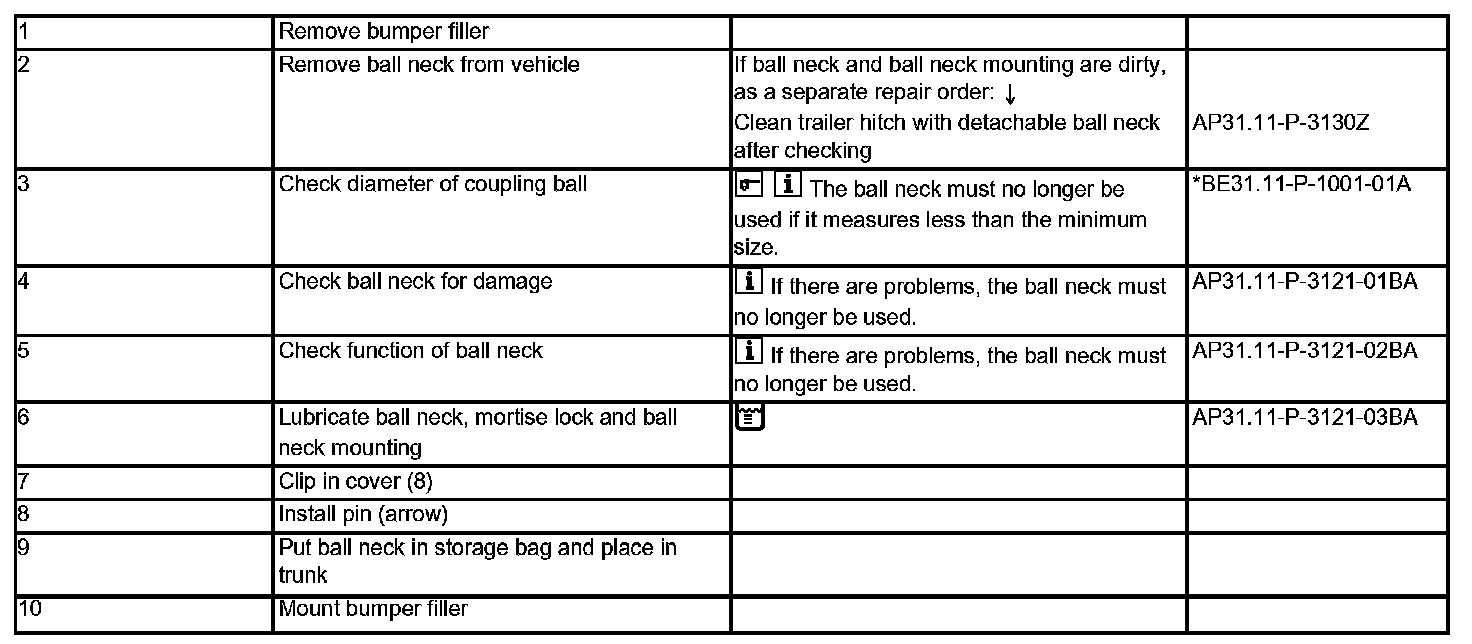

Steps 1 - 10:

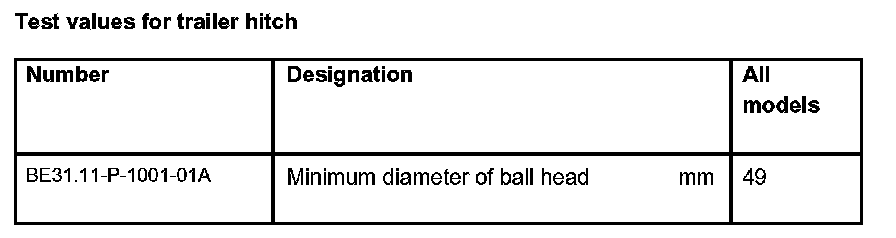

Test Values For Trailer Hitch:
