Front Door Panel: Service and Repair

Removal

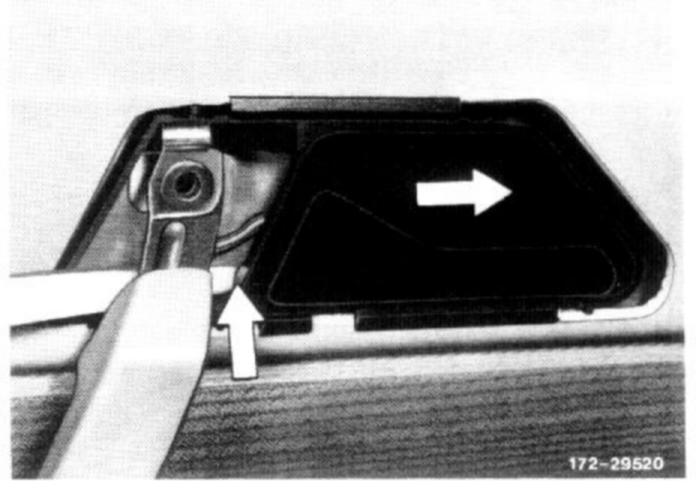

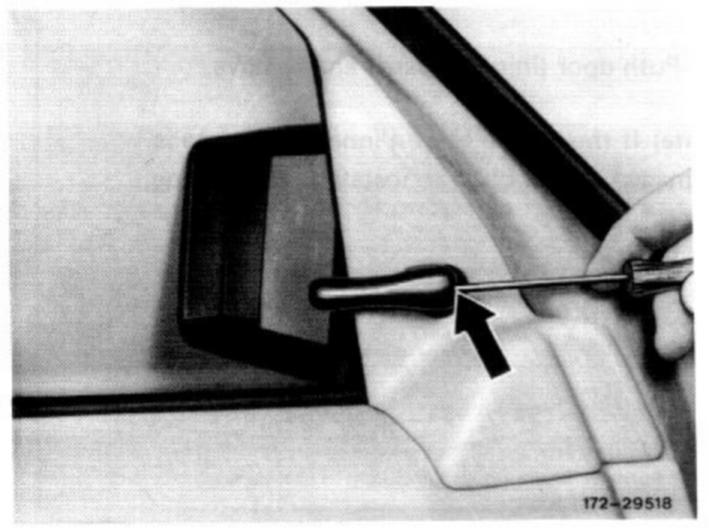

1 Push plastic lock with screwdriver out of handle and remove handle.

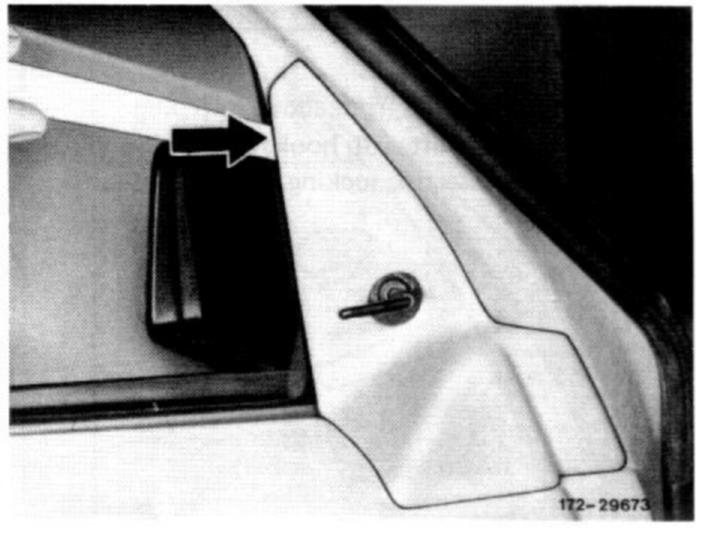

2 Unclip cover at top from door frame and pull out in upward direction.





3 Force off molding on inside door actuation and turn out screw inside on handle.





4 Disengage linkage of door handle, push door inside actuation forward and remove.

5 Move window downward and then remove window crank.





6 Remove bordering on door lock.

7 Push door lining upwards and remove.

Note: If the sealing foil on inner door plate is damaged, renew prior to installing door lining.

Installation





8 Introduce door lining from above into plug clamps on window shaft with hooks into inside door plate, while inserting locking knob into door lining.





9 Engage linkage on door handle and insert door inside actuation on door inside plate (3 slots).

10 Fasten hand grip inside with screw.

Note: Screw on hand grip is micro-encapsulated. Either replace or screw in with a screw locking compound.

11 For further installation proceed vice versa.
