Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Convenience Feature (CF) (Inc. Power Windows/Sliding Roof) >> ETP - Electrical Test Program >> Test Steps >> Test Steps 7.0, 8.0 & 9.0

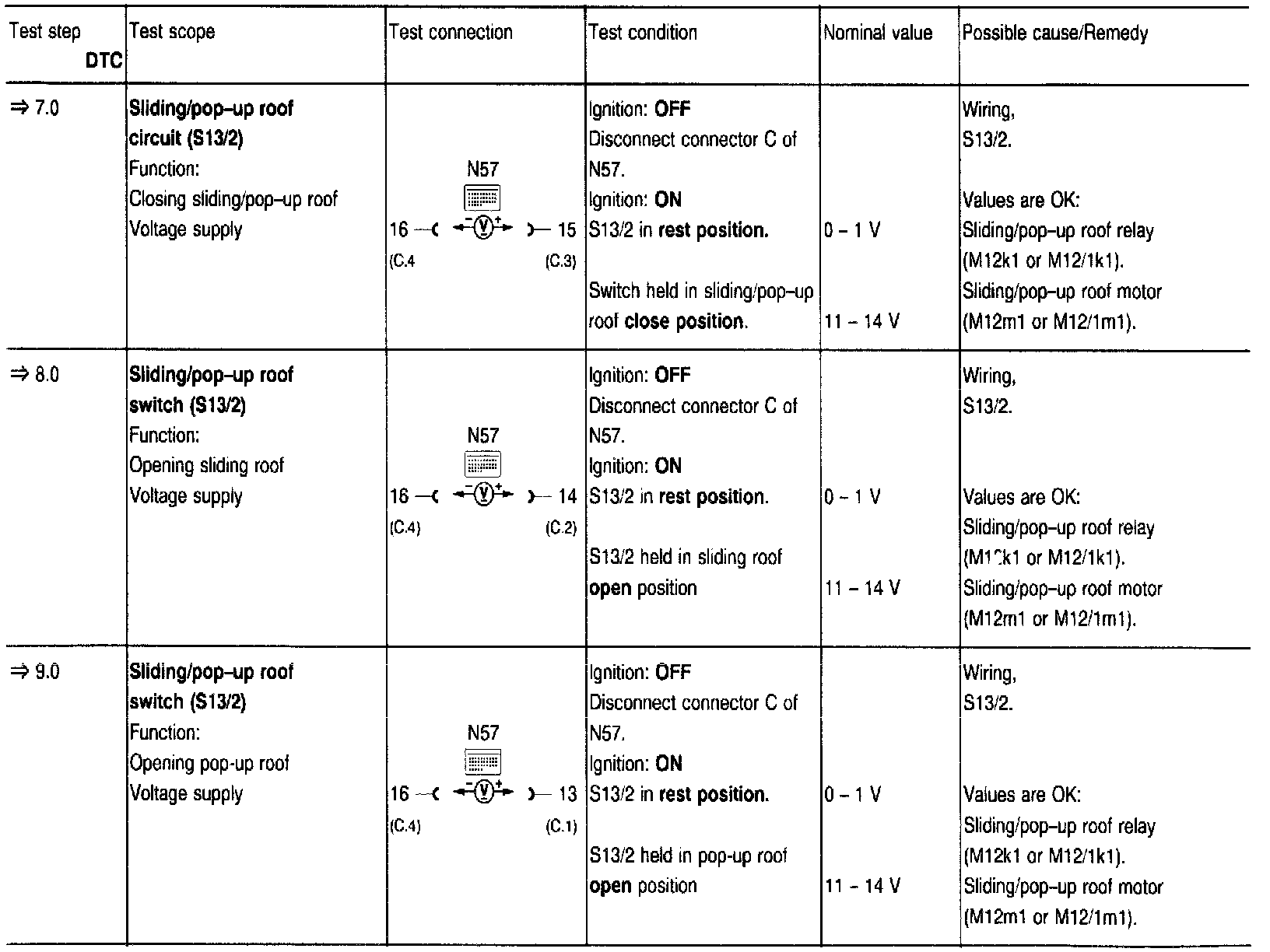

Test Steps 7.0, 8.0 & 9.0
