300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Convenience Feature (CF) (Inc. Power Windows/Sliding Roof)
>>
Complaint Related Diagnostic Chart
Complaint Related Diagnostic Chart

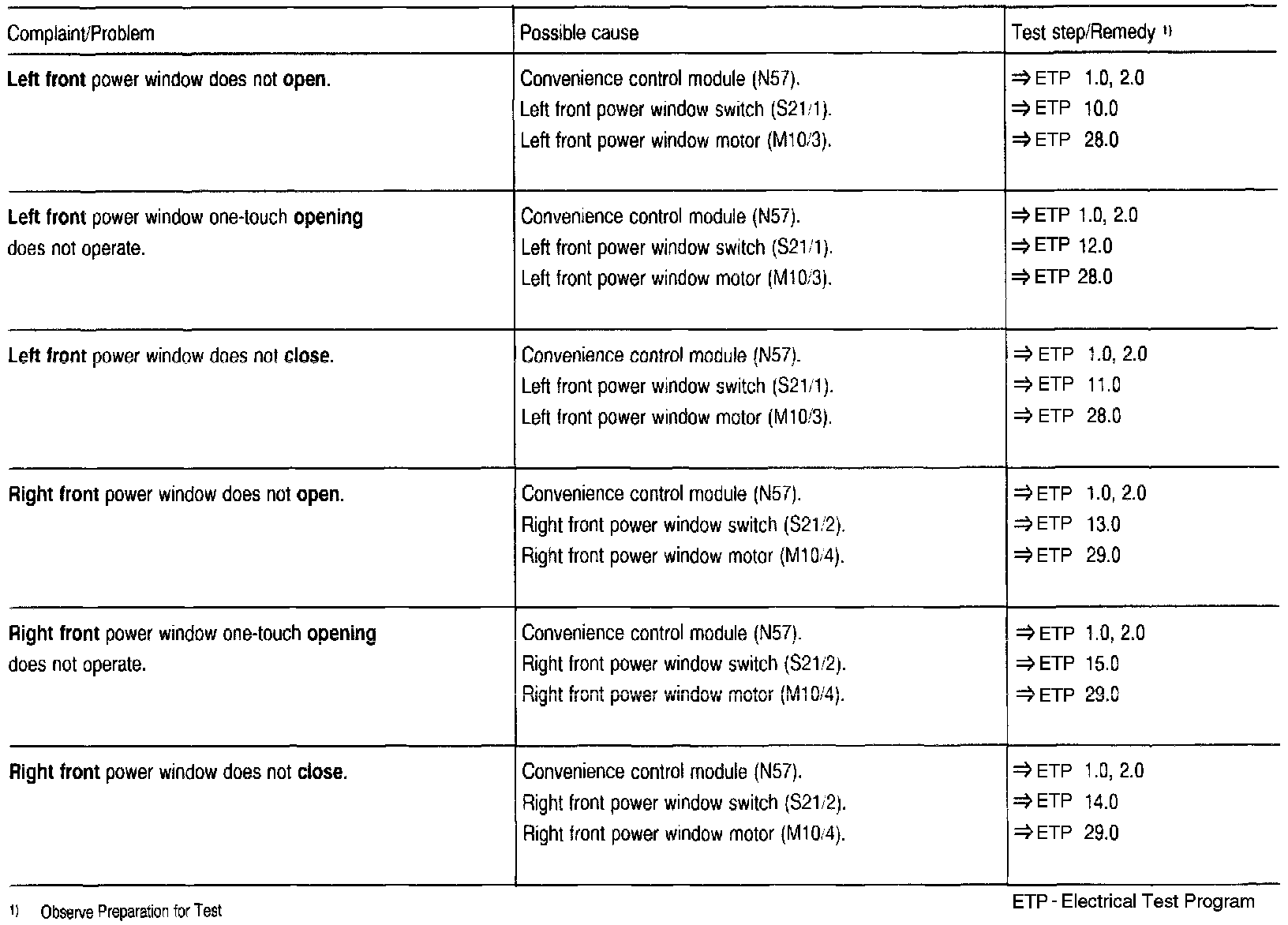

Complaint/Problem Part 1 of 4

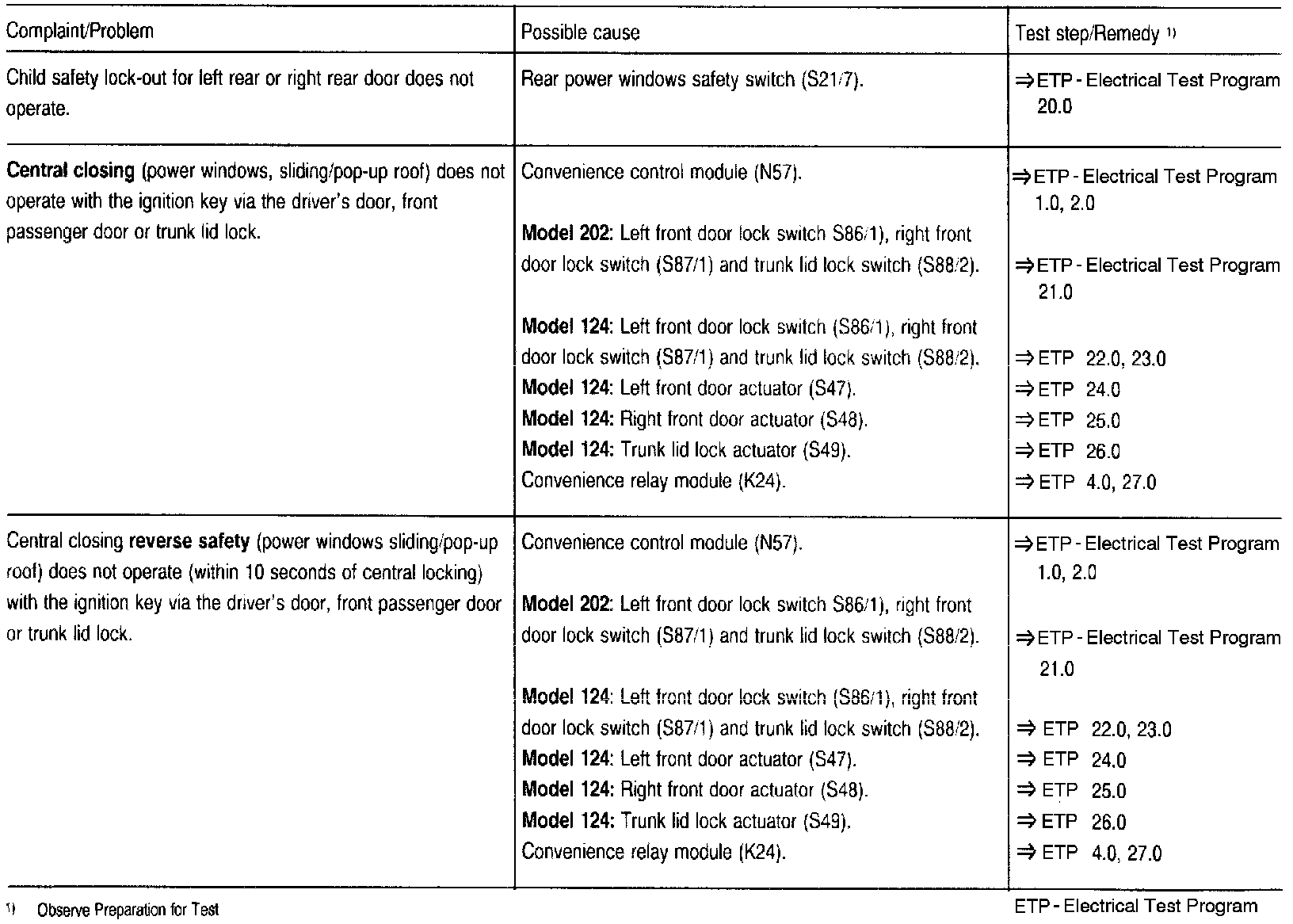

Complaint/Problem Part 2 of 4

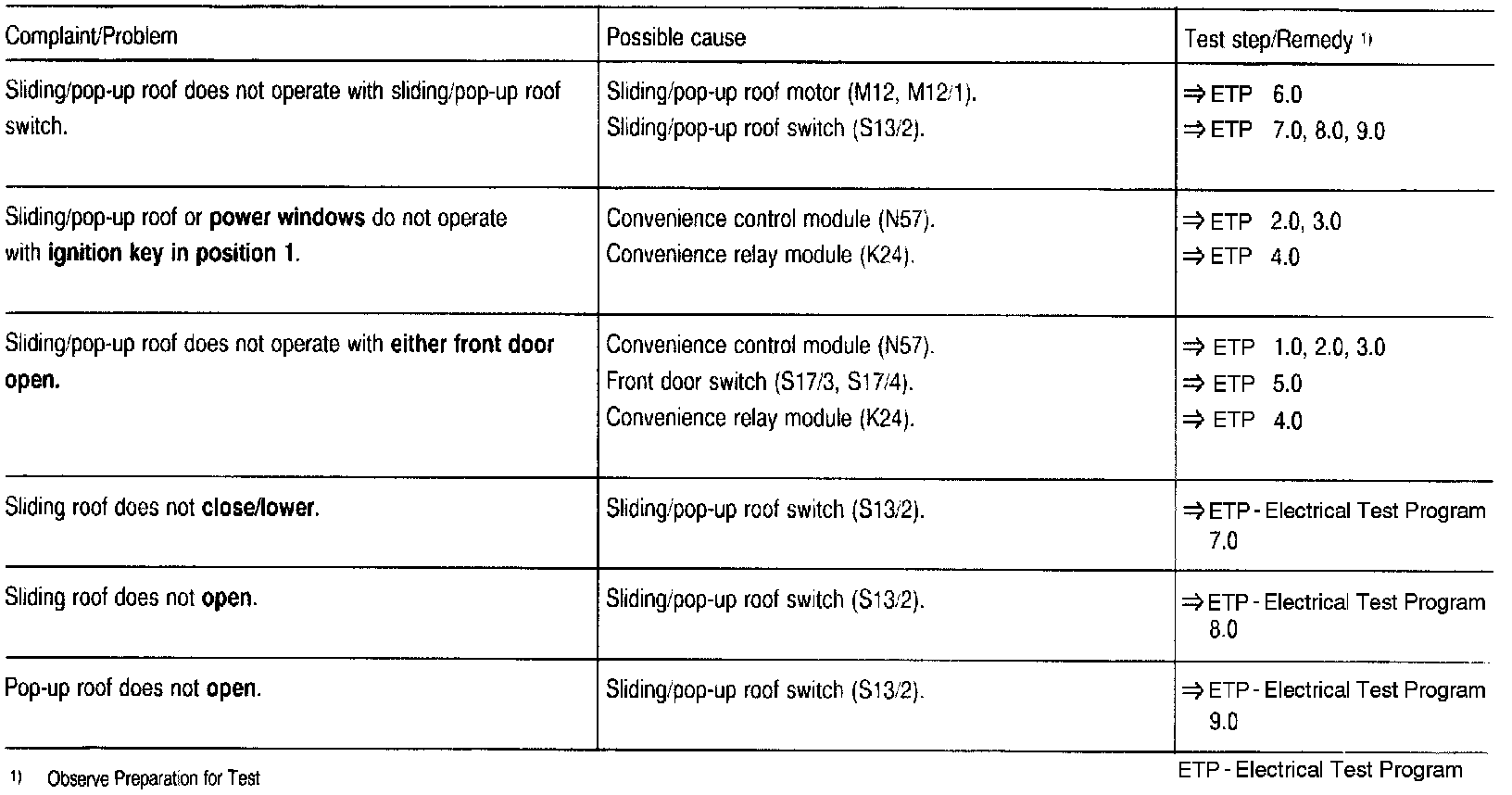

Complaint/Problem Part 3 of 4

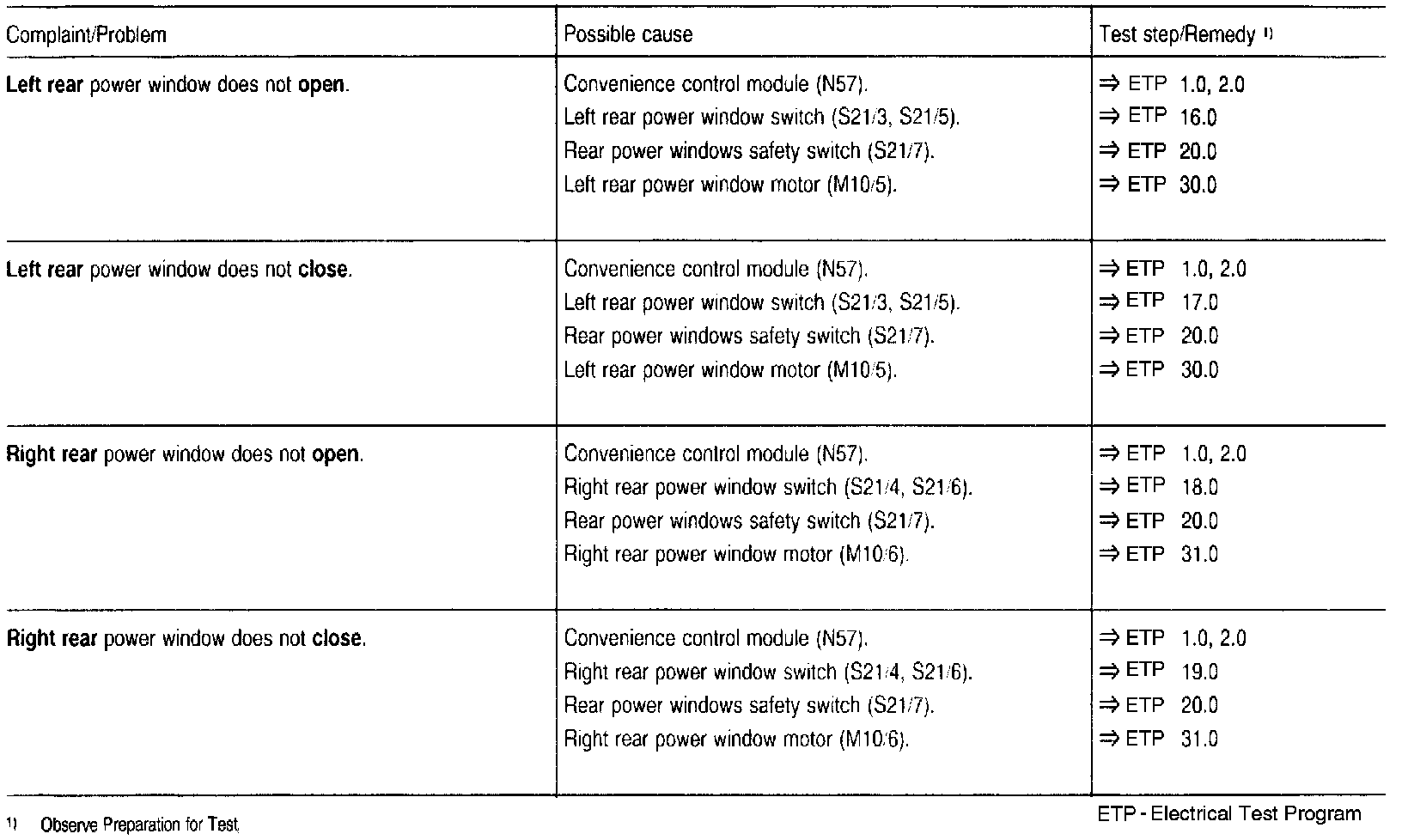

Complaint/Problem Part 4 of 4
