Model 129

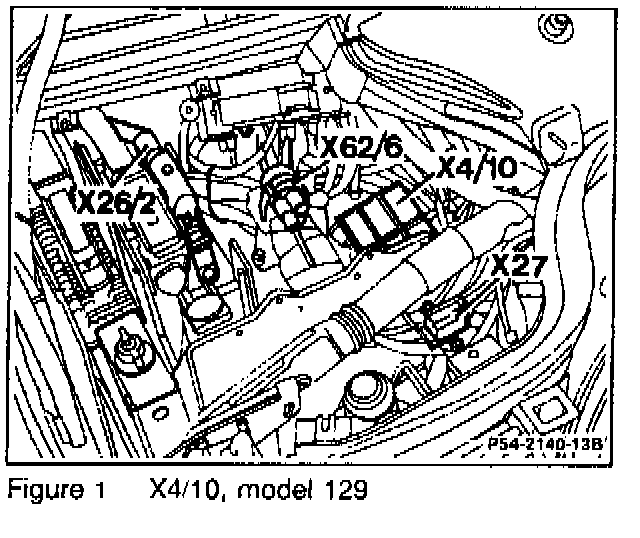

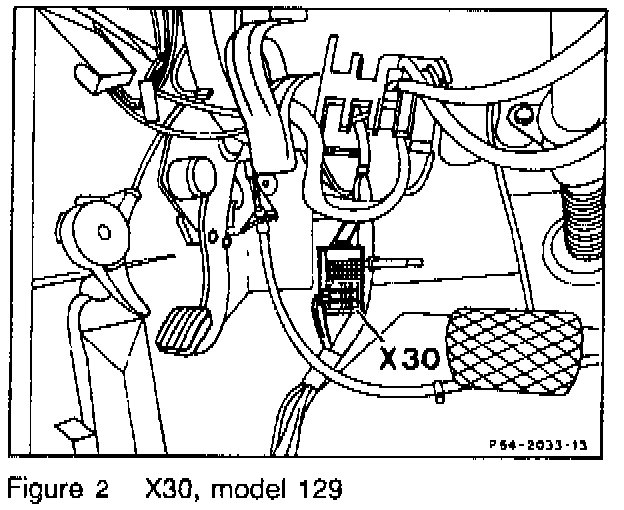

Power connector X4/1O (circuit 30) is located in the engine compartment on the passenger-side firewall (Figure 1), but is also accessible from the passenger's footwell. The battery is located in the right side of the trunk. Connector block X30 is located under the driver's left kick panel (Figure 2).
