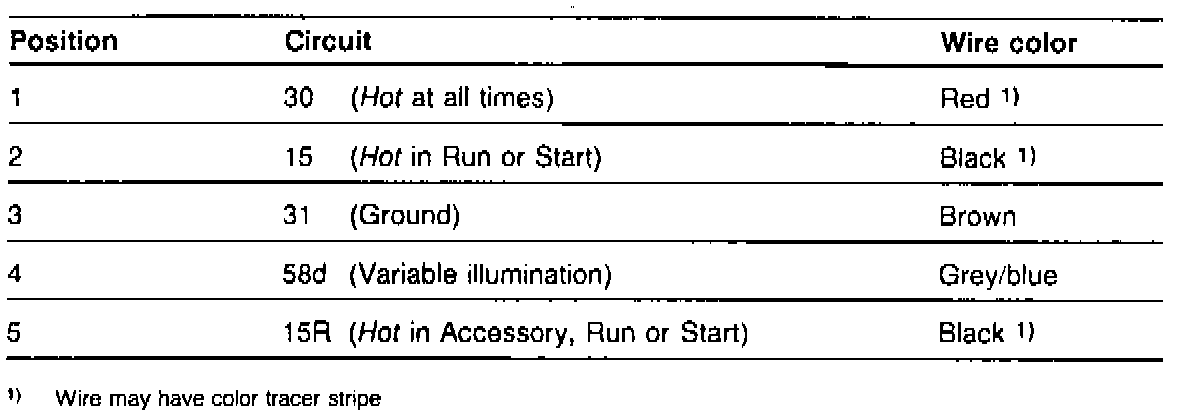

Connector Block (X30) Terminal Layout





Connection to connector block X30 (models 124, 126, 129) is accomplished via a connector made from parts listed in the Parts Information table.
