Connector Layout of Data Link Connector

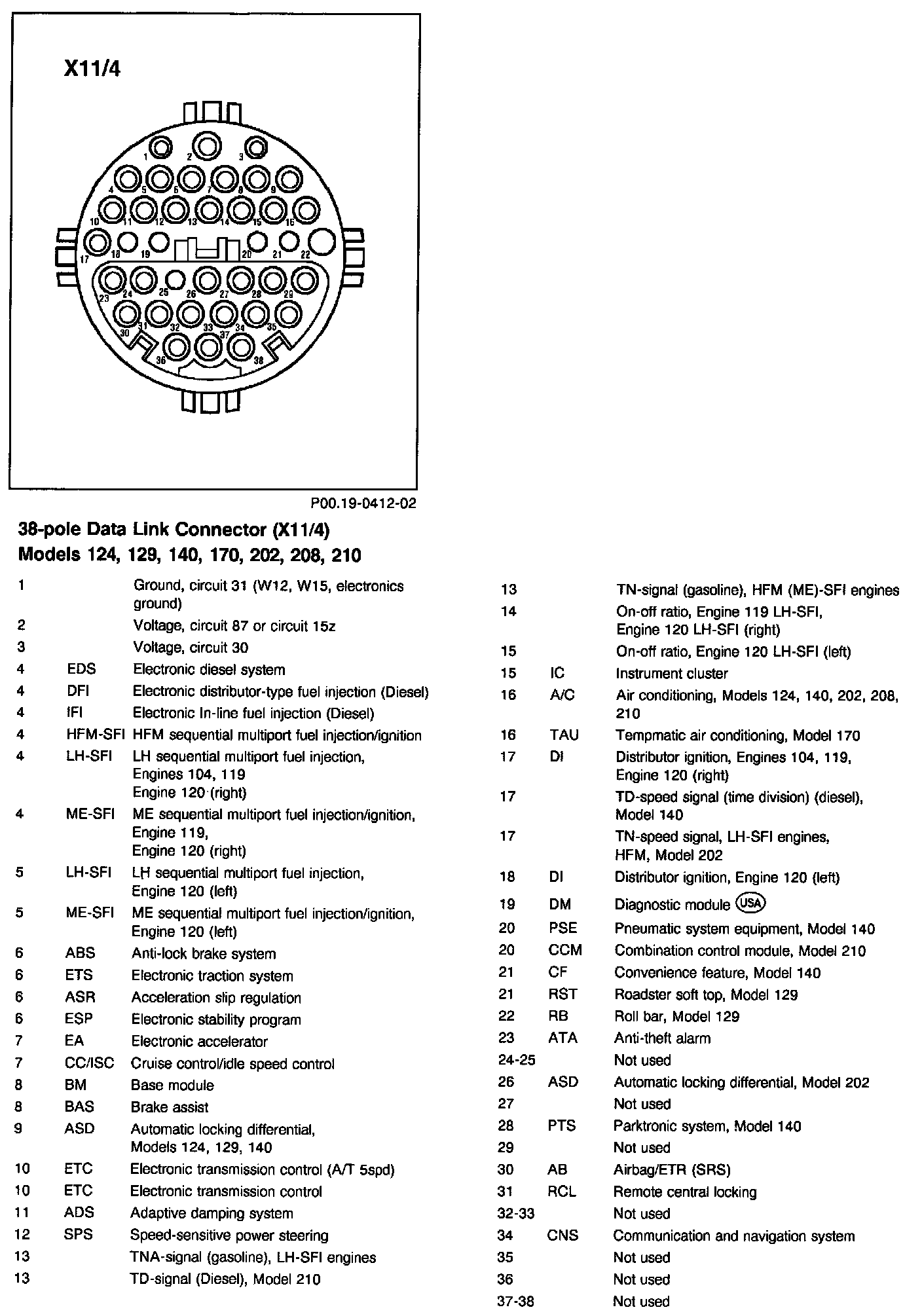

38-pole Data Link Connector (X11/4):

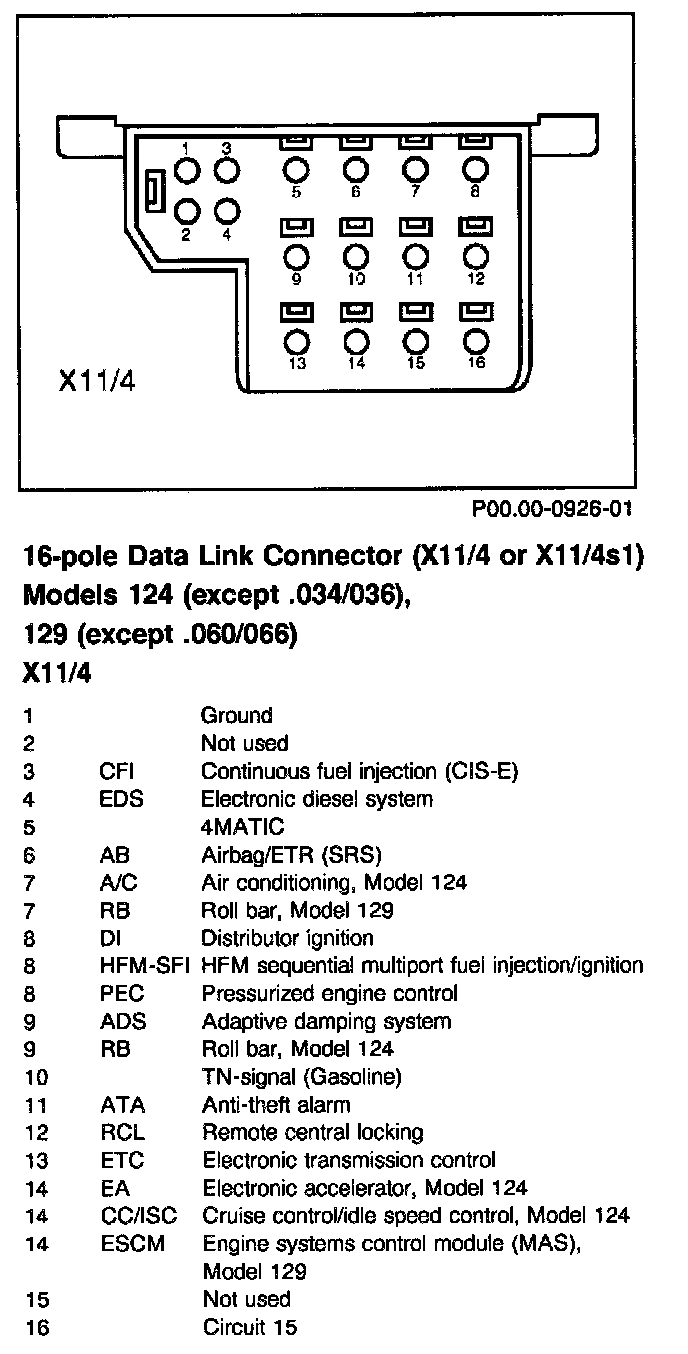

16-pole Data Link Connector (X11/4 or X11/4s1):

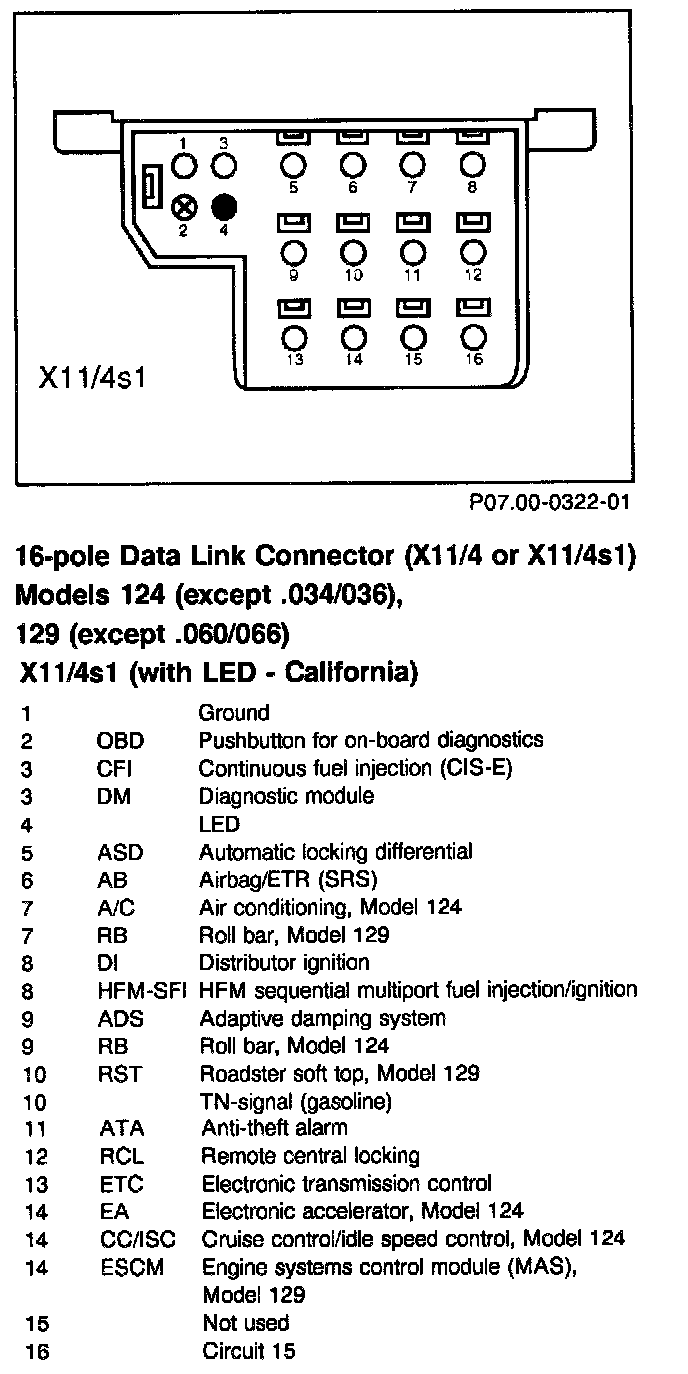

X11/4s1 (with LED - California):

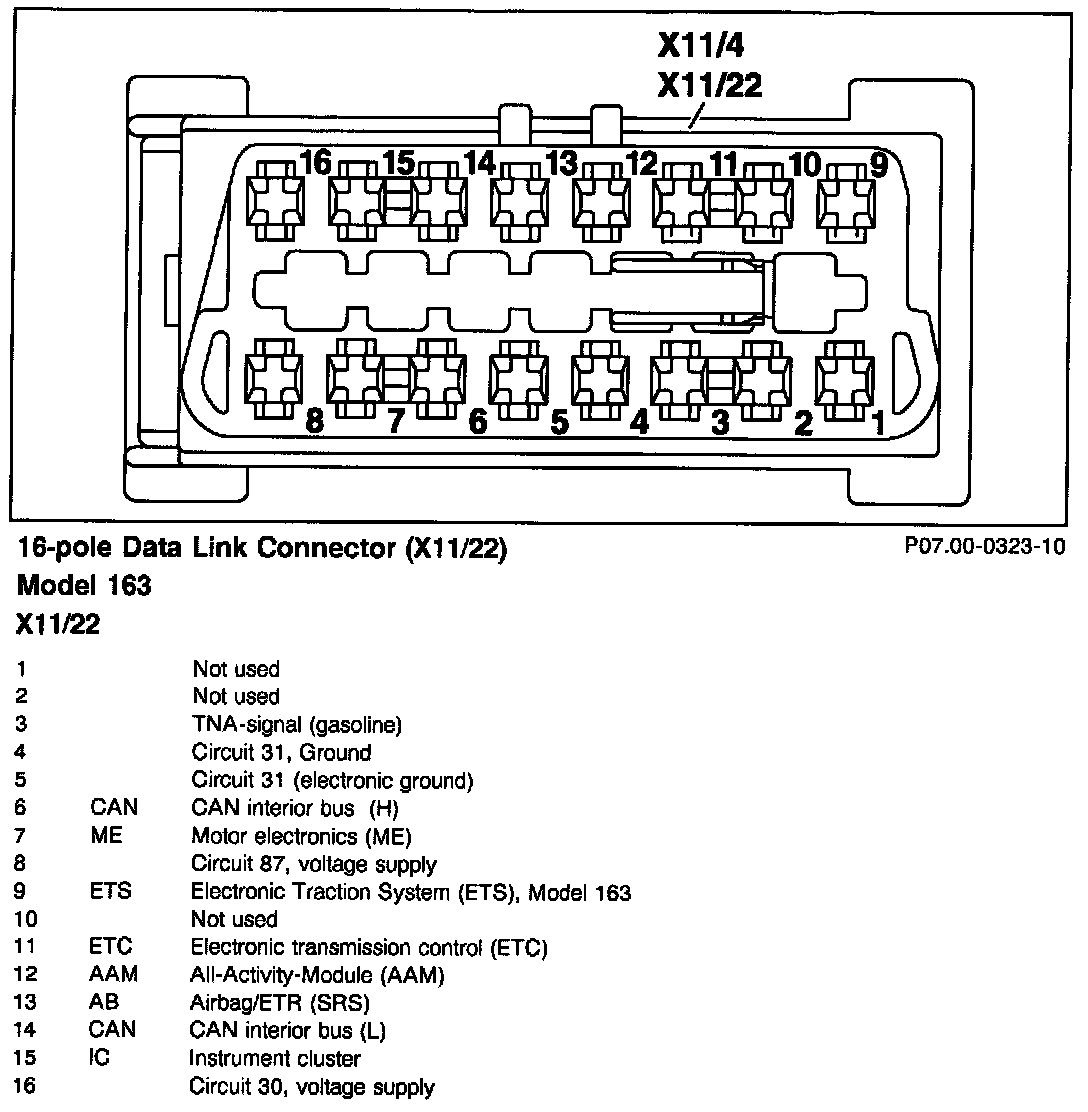

16-pole Data Link Connector (X11/22) (Model 163):
