CD Changer - Installation
>>
Model 129 - CD Changer Installation
>>
Overview
Model 129 - CD Changer Installation: Overview
Group: 82
Number: 260
Date: January 1991
SUBJECT:
CD CHANGER
INSTALLATION
MODEL 129

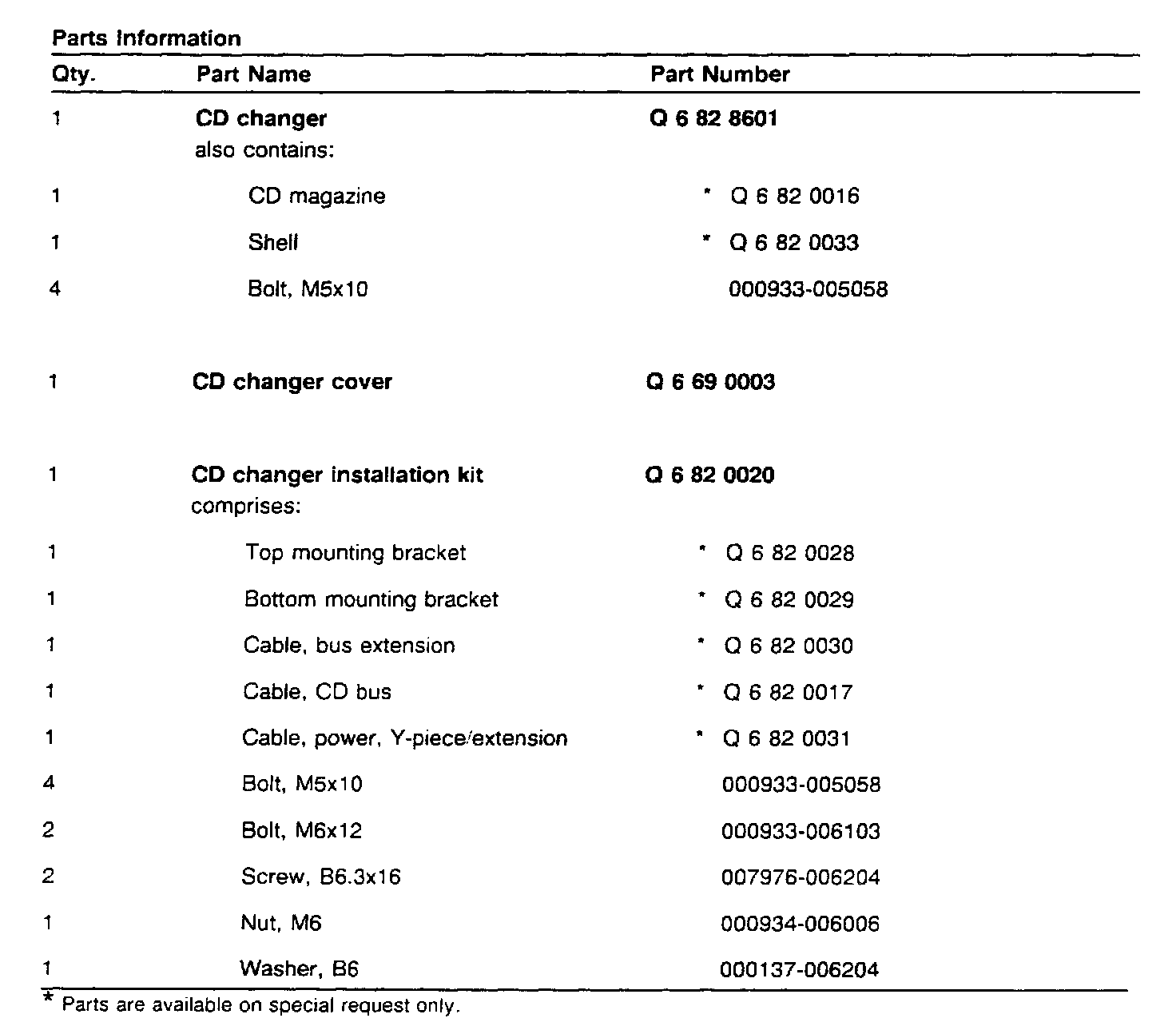

Parts Information:
Parts Information List
Recommended Time Allowance
1.0 hr.
