A. Installation of Mounting Hardware

1. Remove contents from shipping box and verify against parts information list.

2. Remove the trunk wheel well liner on the right side. Open and secure the spare tire cover and remove the spare tire.

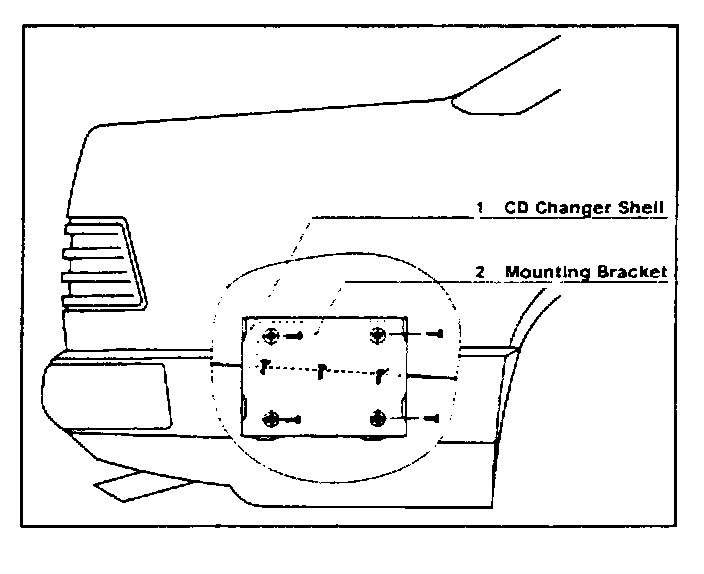

3. Fasten the mounting bracket (2) to the CD changer shell (1) using two 5 mm bolts (Figure 1).

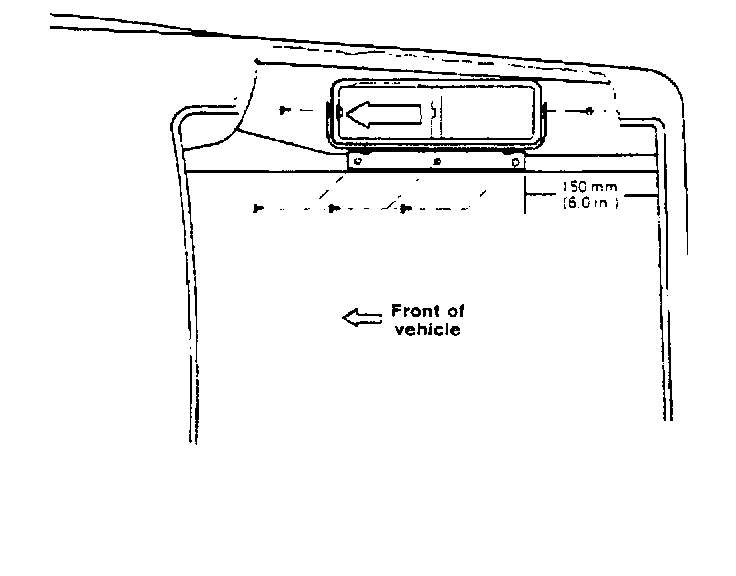

4. Place the CD changer shell (1) and mounting bracket (2) assembly on the edge of the wheel well rail so that the edge of the bracket is 150 mm (6.0 in.) from the rear panel of the trunk (Figure 2).

Mark the location of three mounting holes, center punch the markings and drill 5 mm holes.

5. Paint the holes with zinc paint and fasten the mounting assembly using 6.3x16 mm sheet metal screws.

6. Using the mounting assembly as a template, locate, mark and drill two 4 mm holes on RHS wall of the tire well.

7. Paint the holes with zinc paint and fasten the CD changer shell (1) and mounting bracket (2) assembly using the 6.3x25 mm sheet metal screws and spacers. The spacers should be placed between the mounting assembly and the tire well (Figure 1).

Clean all debris from the drilling.

8. Remove the long shipping screws from the CD changer and install them in the four storage holes on the bottom of the CD changer. Loosely install the lower two (short) 5 mm mounting bolts in their place.
