Amplifier: Locations

Component Location




Component ID N40
Component Name Audio power amplifier (circuit 58D)
Location Behind instrument cluster, on steering column

Sedan:

Coupe:

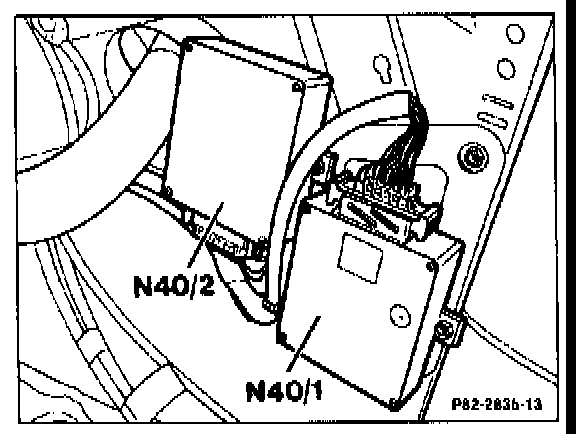

Component ID N40/1
Component Name Audio power amplifier, left speakers
Location Right side of trunk

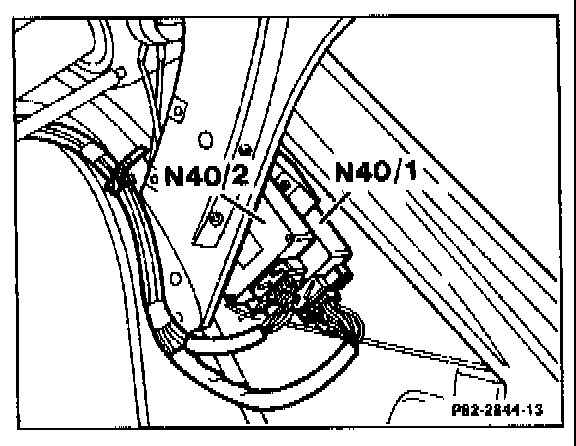

Sedan:

Coupe:

Component ID N40/2
Component Name Audio power amplifier, right speakers
Location Right side of trunk


Component ID N40/3
Component Name Audio power amplifier, left/right speakers
Location Right side of trunk
