Cellular Phone Transceiver: Service and Repair

Removing And Installing Transmitter-Receiver Unit

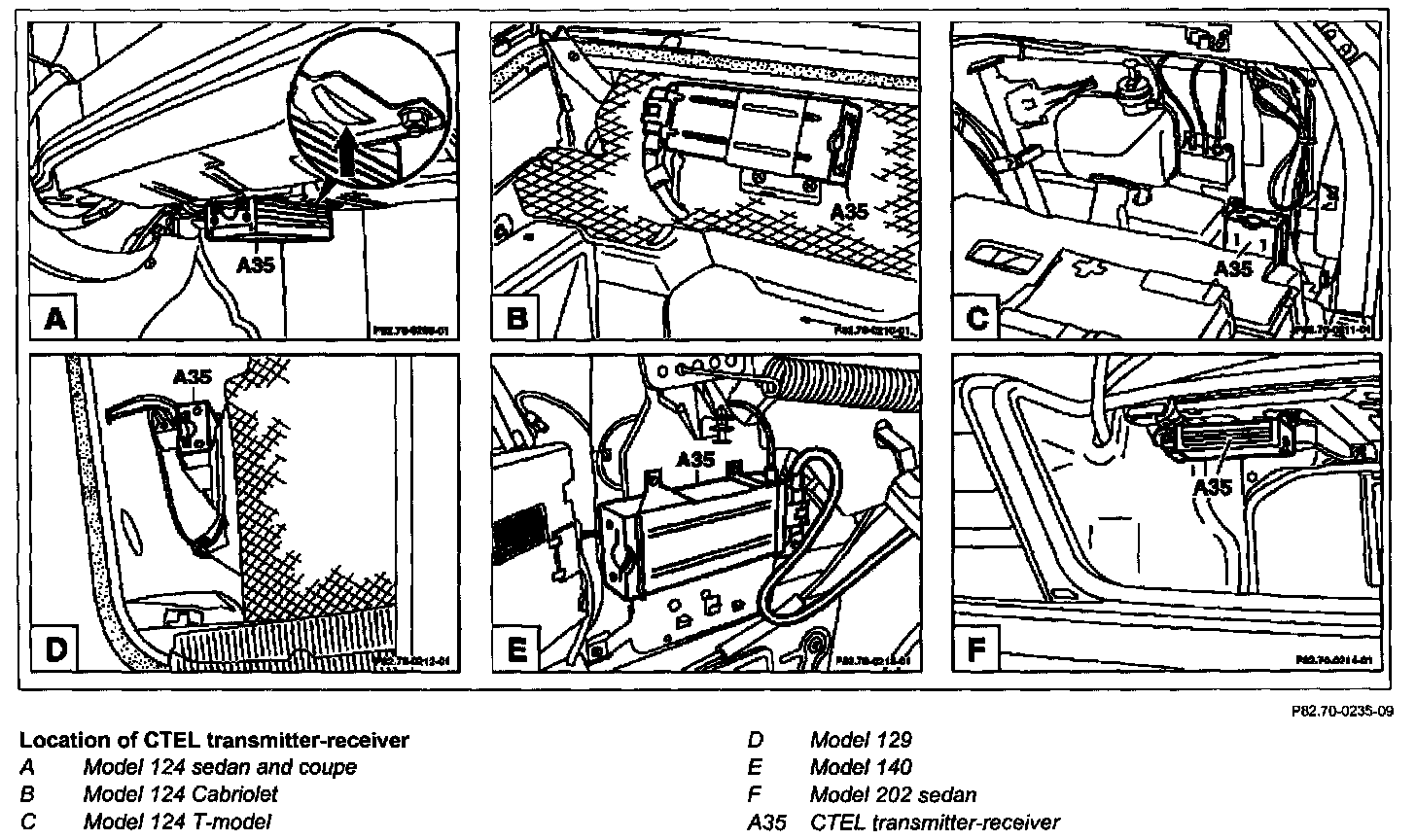

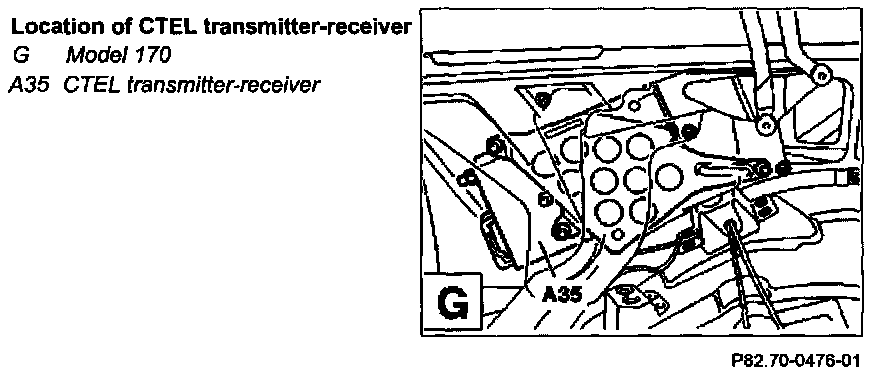

Location Of CTEL Transmitter-receiver:

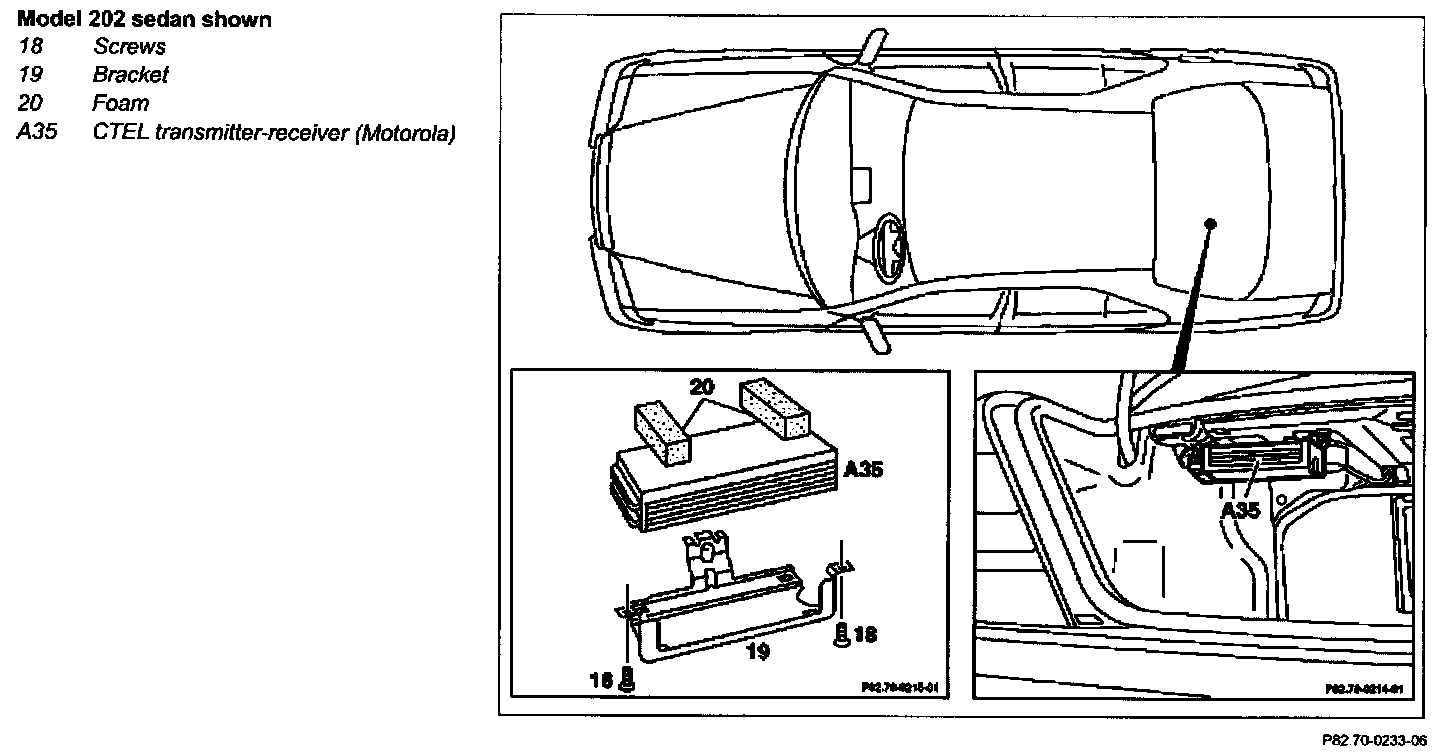

Model 202 Sedan Shown:

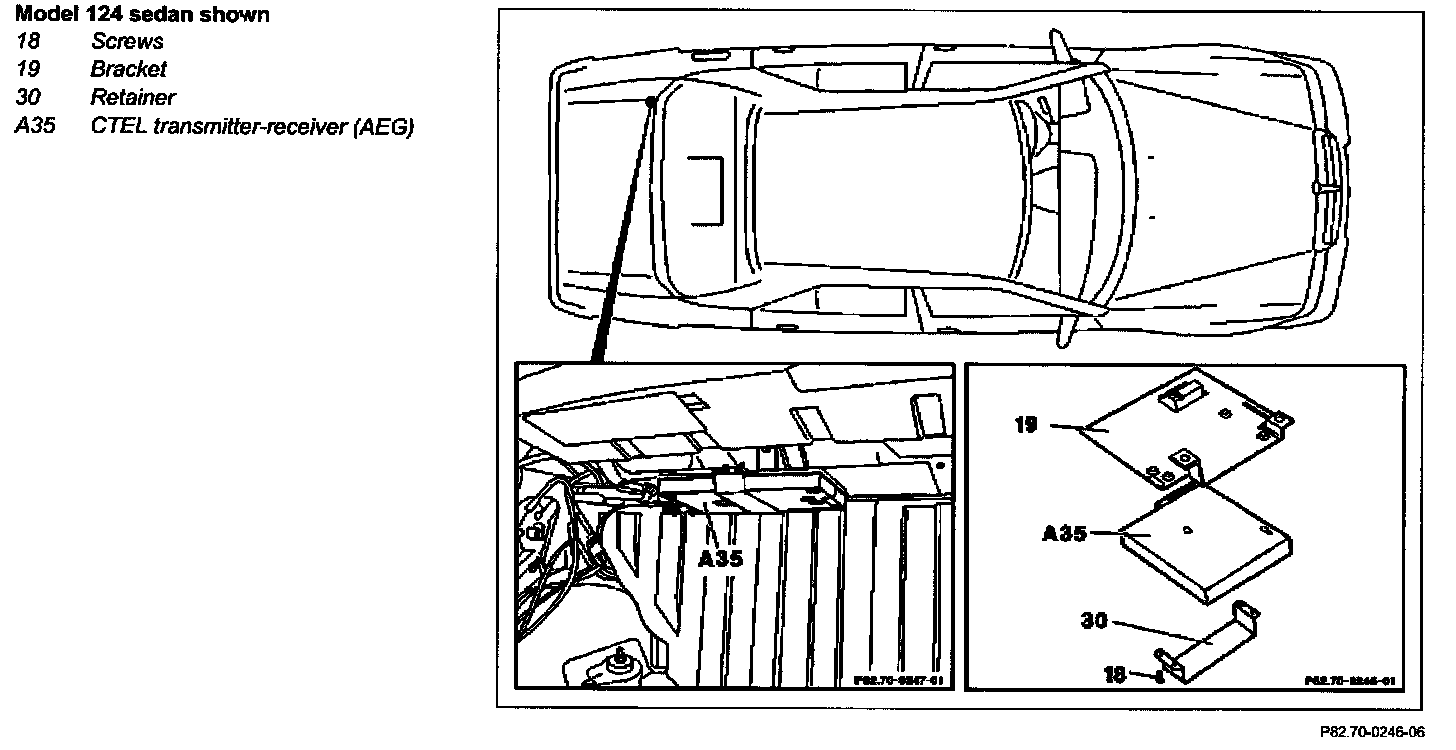

Model 124 Sedan Shown:

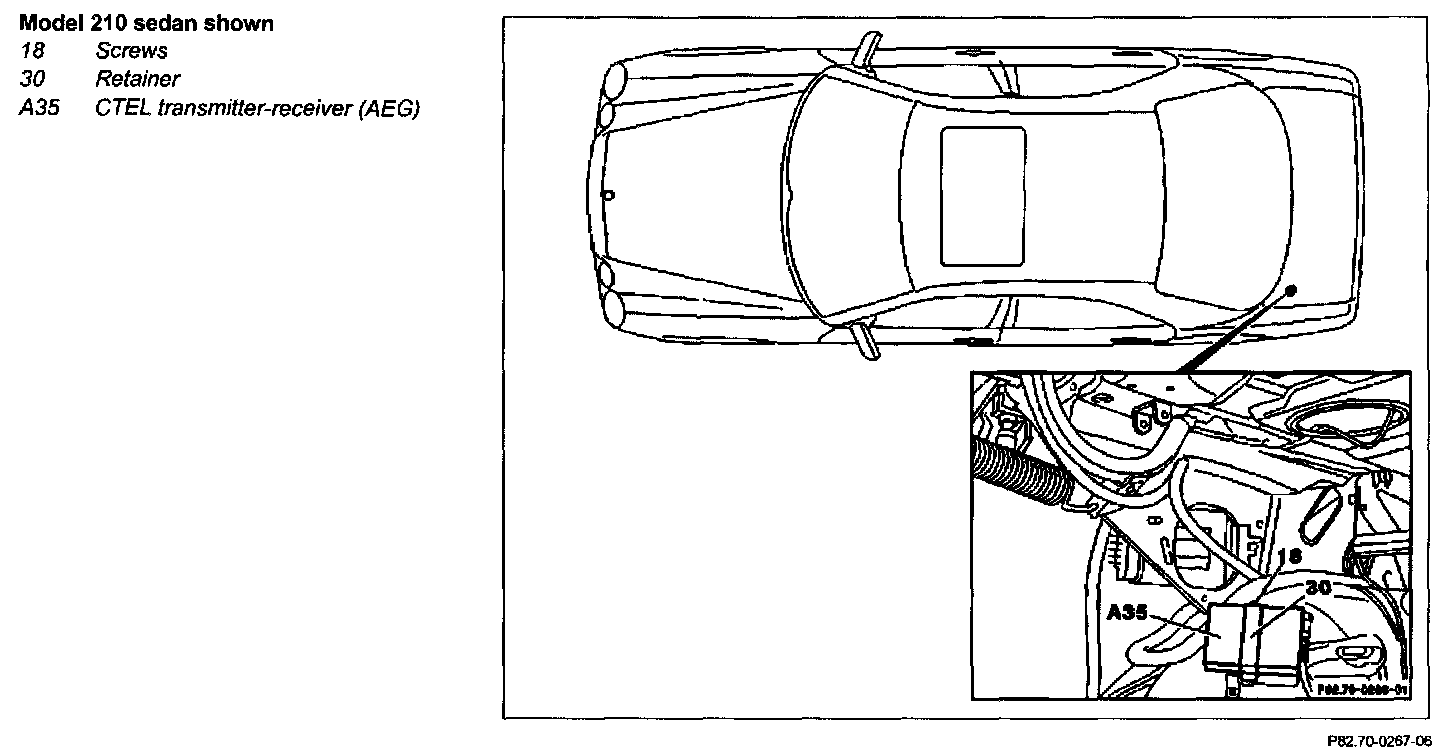

Model 210 Sedan Shown:

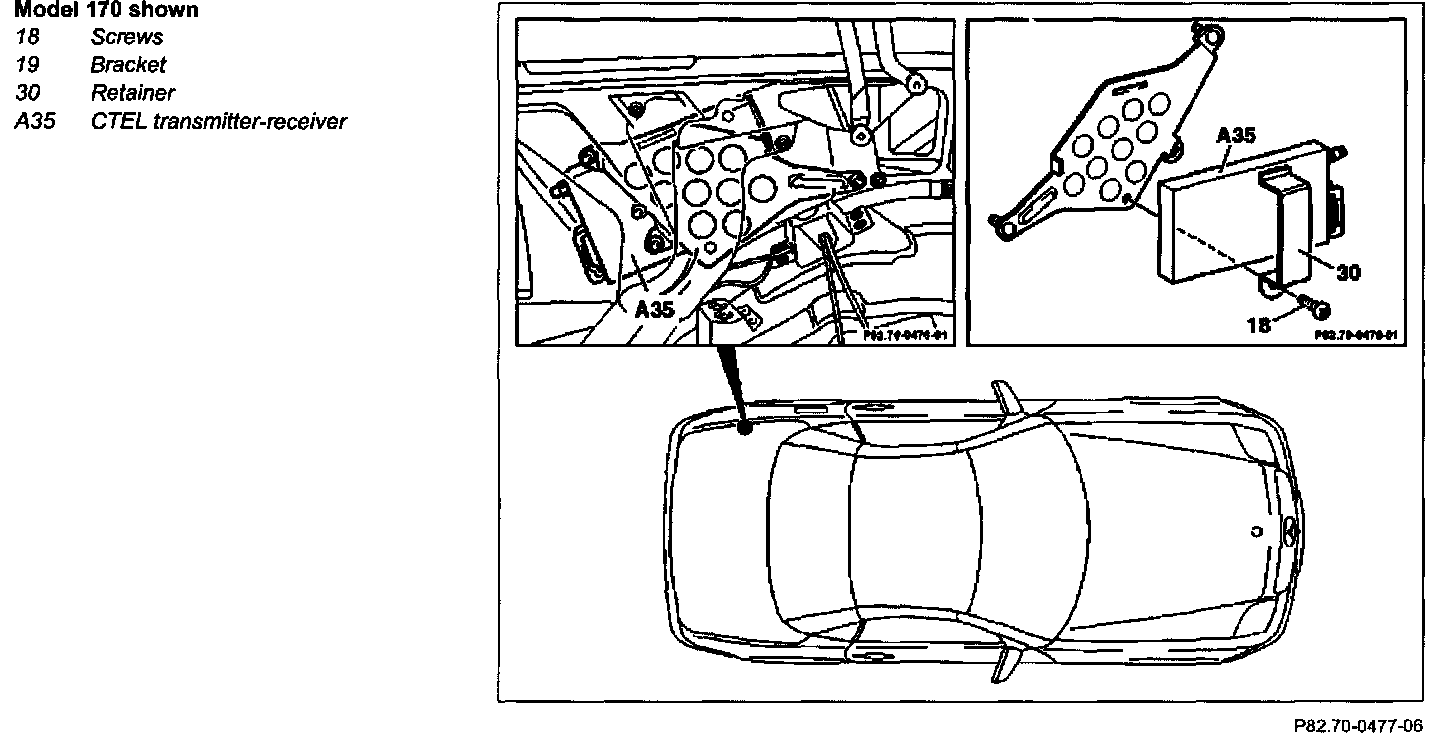

Model 170 Shown:

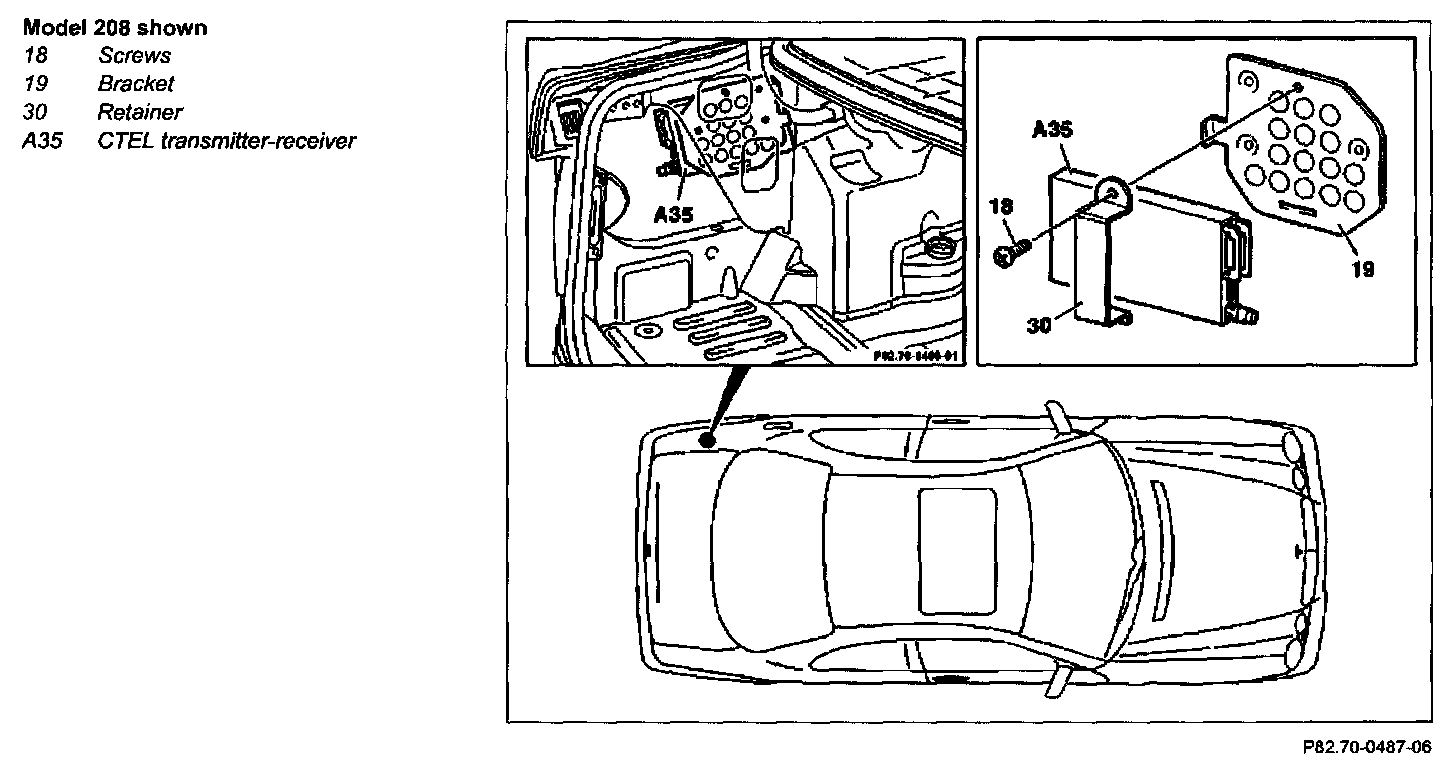

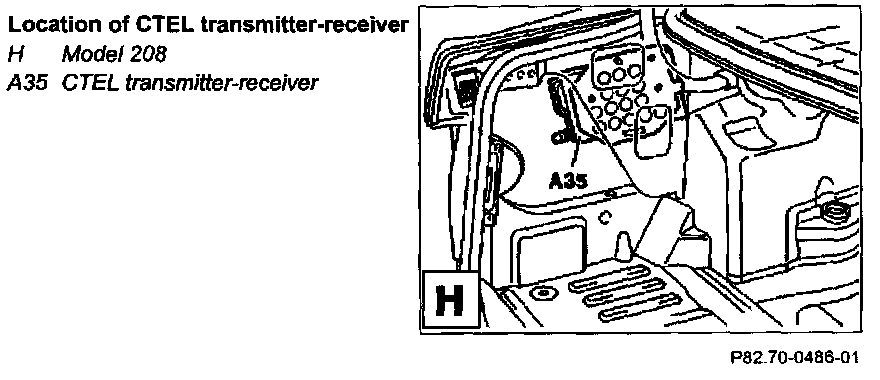

Model 208 Shown:

1 Connect quiescent current preservation unit

See "Commercially Available Tools" given below.

2 Disconnect ground cable at battery

CAUTION: To protect against inadvertent contact of disconnected ground cable with ground (battery) W10, insulate cable shoe of ground cable

3 Remove cover of left wheel house recess
4.1 Open side trim in right rear
4.2 Open side trim in left of trunk
5 Remove cover on CTEL transmitter-receiver (A35)
6 Press back tensioning spring (arrow) on bracket and pull out CTEL transmitter-receiver (A35)

7 Unscrew screws (18) and remove bracket (19) with CTEL transmitter-receiver (A35)

8 Unscrew screws (18) and remove retainer (30) with CTEL transmitter-receiver (A35)
9 Release and remove coupling on CTEL transmitter-receiver (A35)
10 Disconnect antenna cable on CTEL transmitter-receiver (A35)
11 Install in reverse order

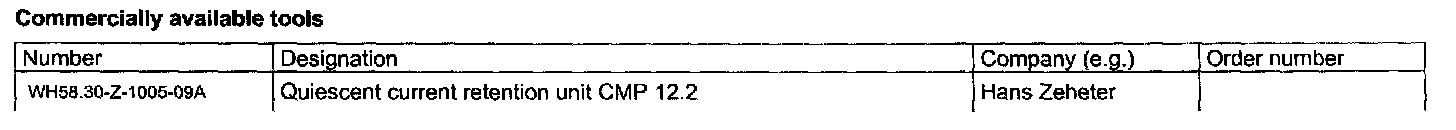

Commercially Available Tools

Commercially Available Tools:
