AR82.70-P-8969Z Remove/Install Hands-Free Microphone

Removing And Installing Hands-Free System Microphone

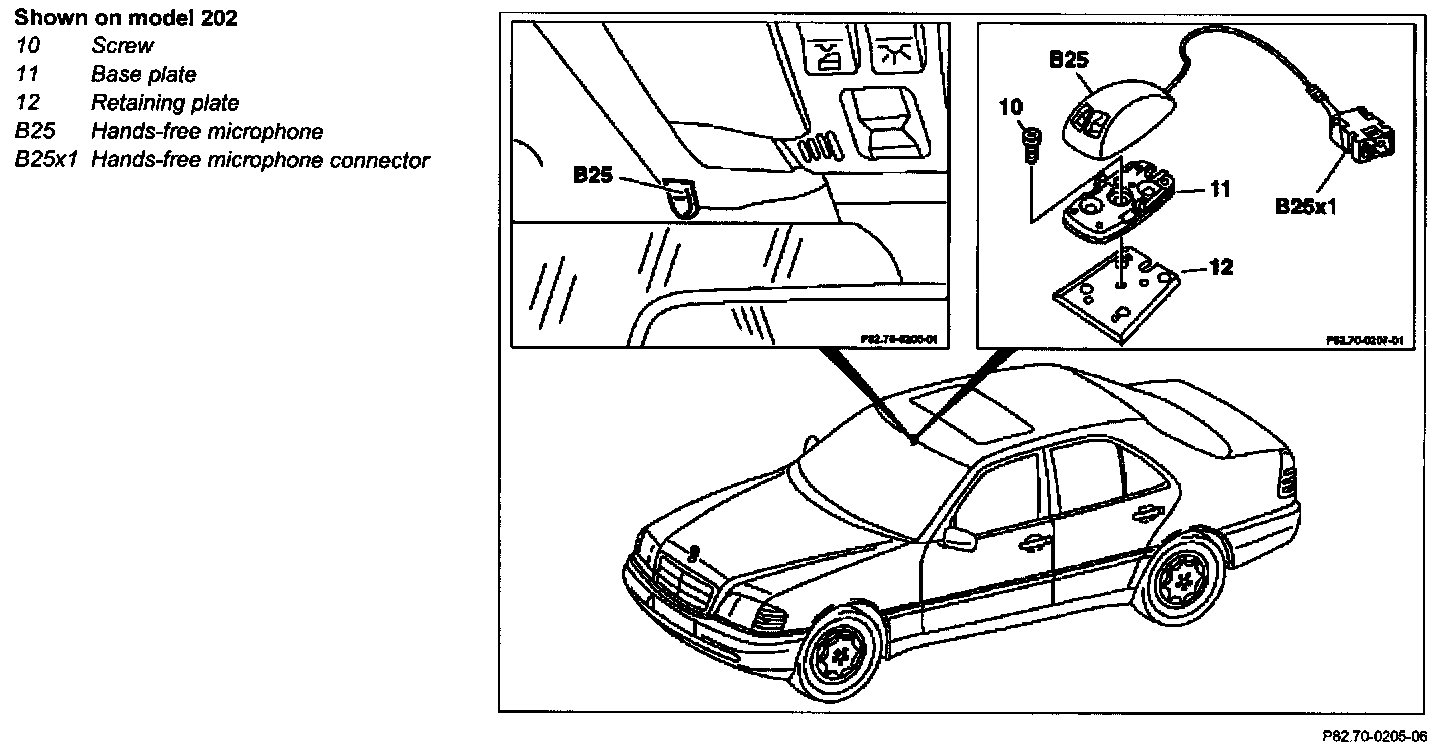

Shown On Model 202:

1 Remove dome lamp pushbutton unit
2 Remove dome lamp with time delay feature and reading lamp
3 Remove front dome lamp
4 Remove microphone

5 Unscrew screw (10) and remove base plate (11) with retaining plate (12)
6 Disconnect hands-free microphone connector (B25x1)
7 Install in reverse order
