Automatic Antenna

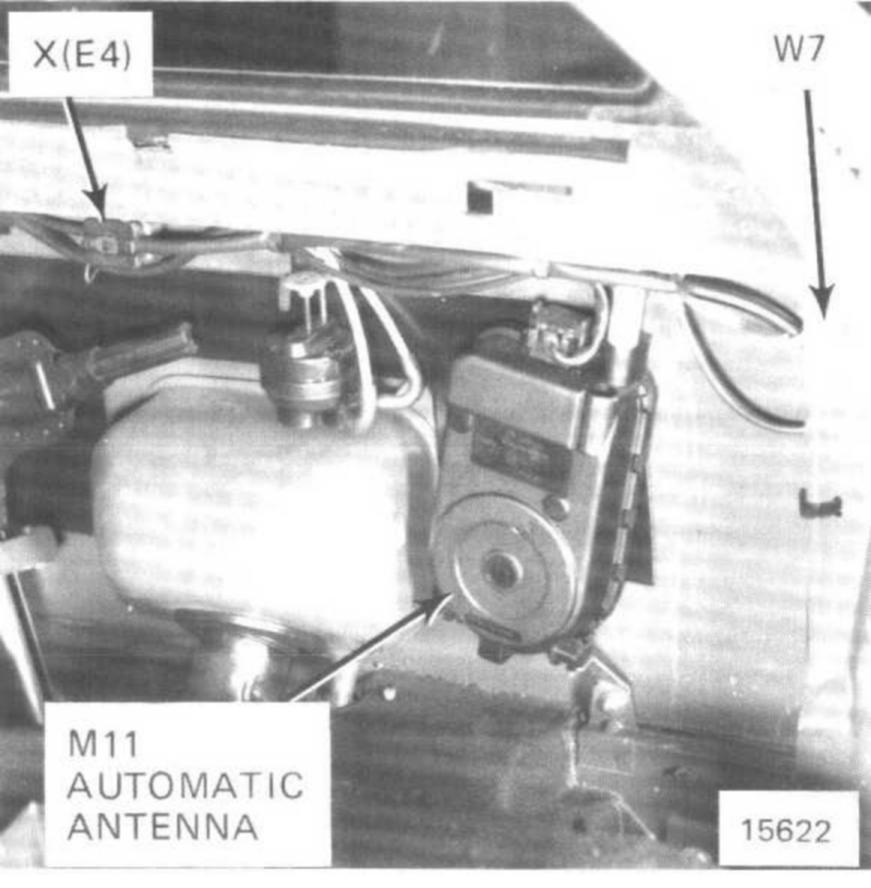

Component Location

WAGON





Component ID M11
Component Name Automatic Antenna
Location Right rear quarter panel (wagon)


SEDAN





Component ID M11
Component Name Automatic Antenna
Location Left side of trunk (sedan)
