Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Powertrain Management >> Fuel Injection System (CIS-E) >> Codes for Fuel Injection System (CIS-E) >> On/Off Ratio (Ignition On)

On/Off Ratio (Ignition On)

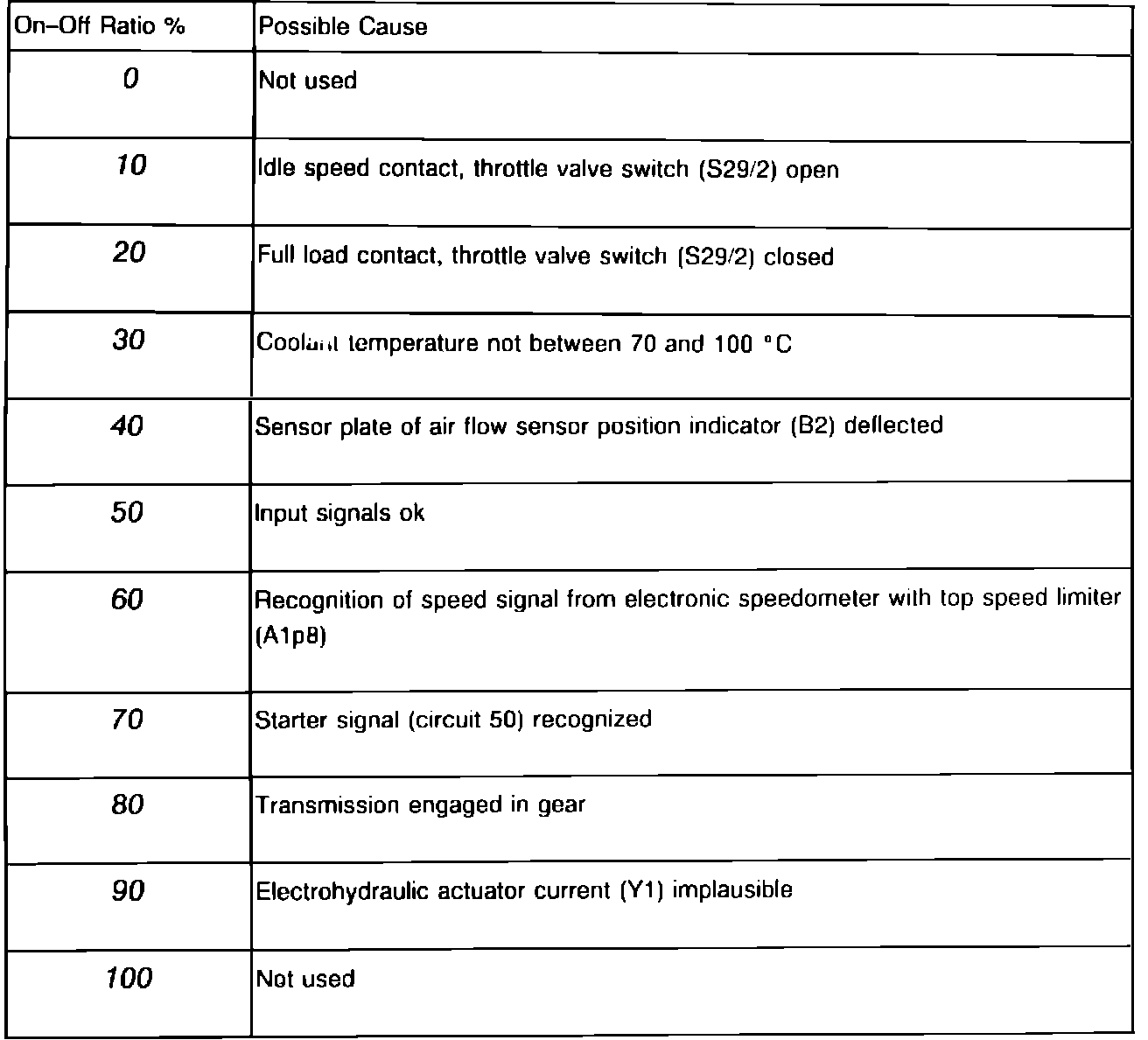

On/Off Ratio Fault Table:
