Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Powertrain Management >> Engine Systems (MAS) >> Code Index for Engine Systems (MAS)

Code Index for Engine Systems (MAS)

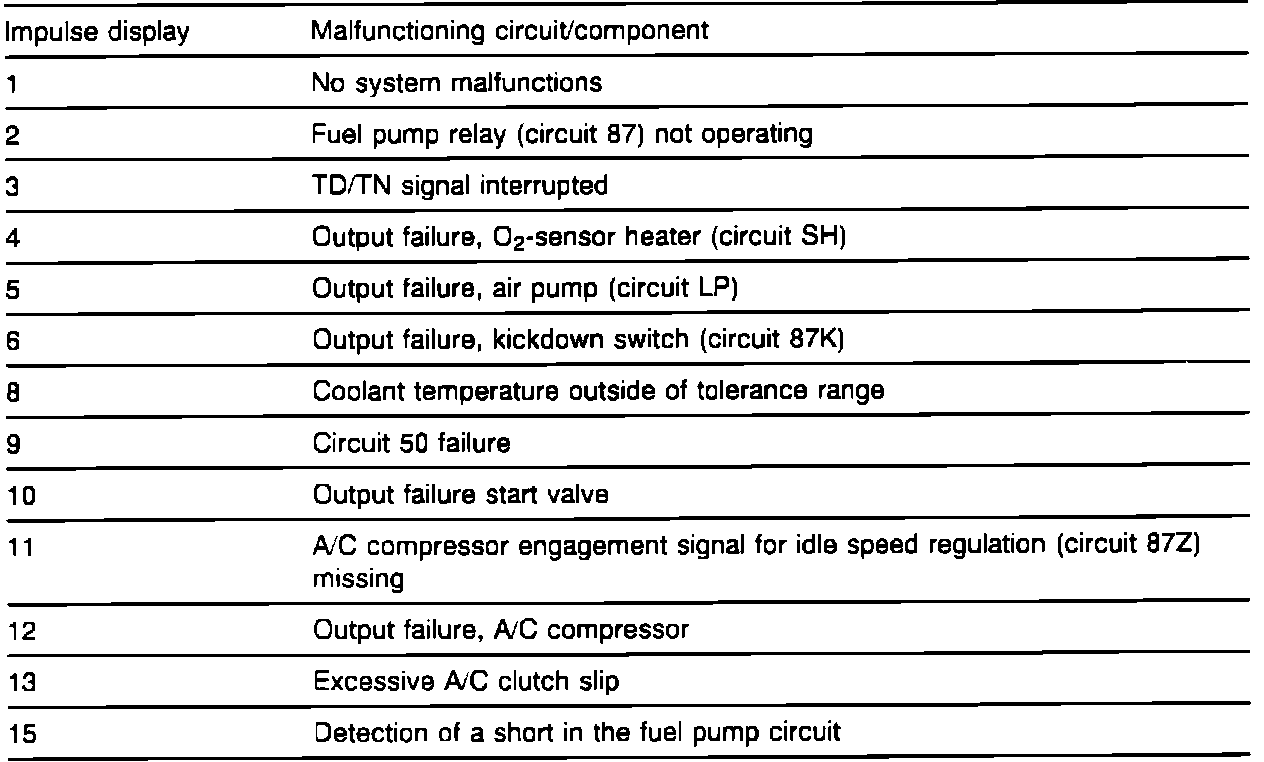

Engine Systems Malfunction Table:
