Heater Core Temperature Sensor / Switch: Locations

Component Locations:

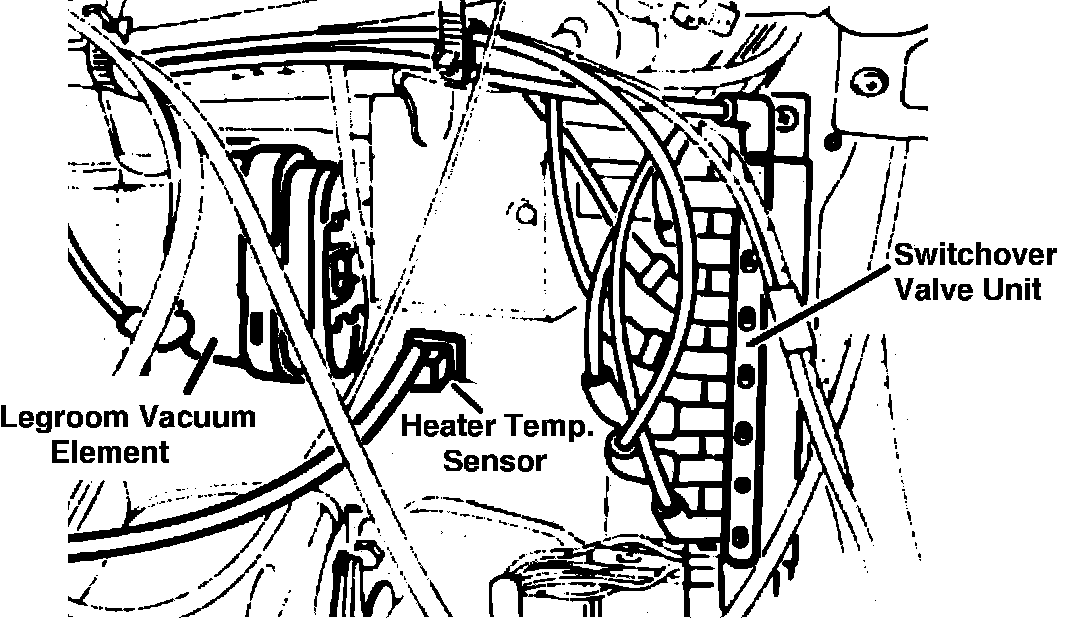

The heater temperature sensor is located in the heater box, behind the ACC control unit.
