Air Bag Control Module: Description and Operation

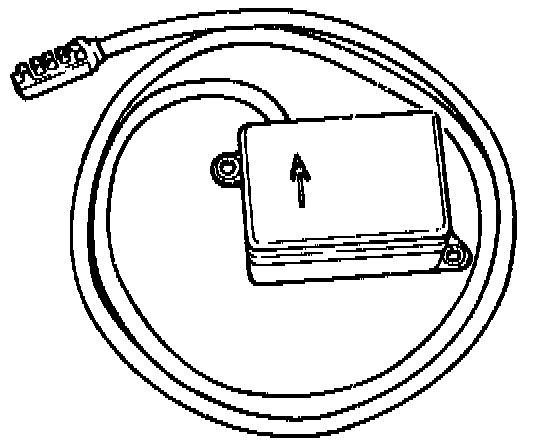

The control unit, also referred to as the triggering unit or crash sensor, is responsible for determining the severity of a collision and, if necessary, triggering the restraint system at the correct time.

General:





Two integrated circuits are accommodated together with an acceleration sensor in a common housing.

The housing and the electrical connections have been designed in such a way as to virtually exclude any malfunctions due to electrical interference in the vehicle electrical system caused by the switching of various electrical consumer components on and off, and by electromagnetic interference on public highways.

Function

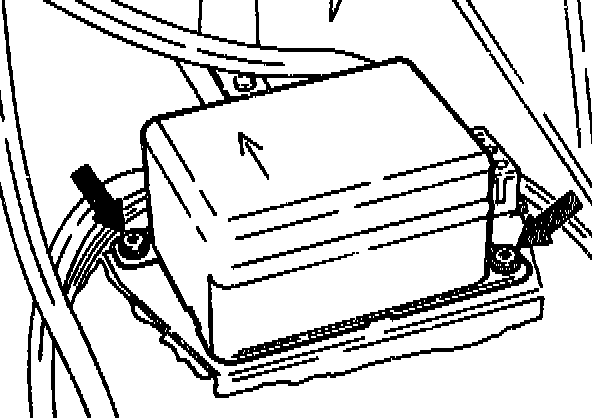

The electronic control unit processes the deceleration of the vehicle during a frontal collision and must therefore be rigidly coupled with the vehicle.

Incorrect triggerings are avoided by means of an integral mercury switch which interrupts the ignition circuits of the airbag and belt tensioner restraint system during normal driving, and by a predetermined deceleration threshold (as).

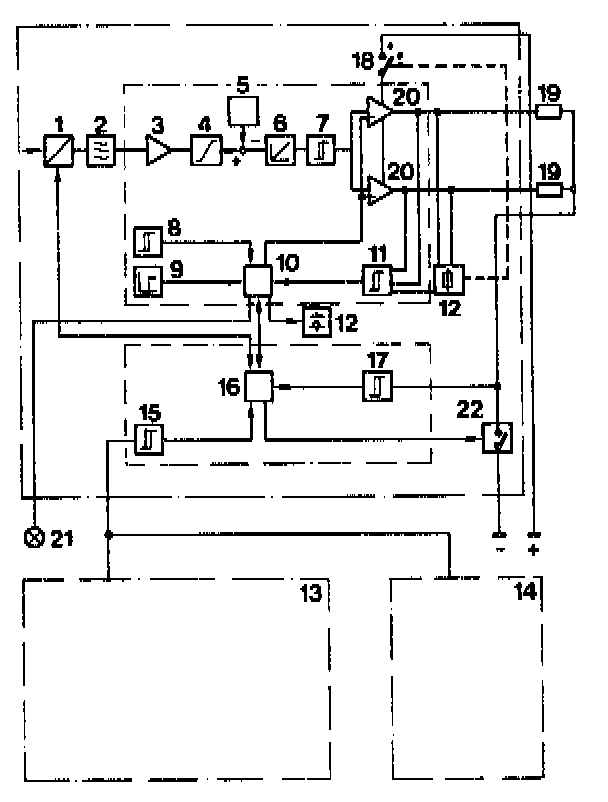

The acceleration sensor (1) in the control unit records the deceleration or acceleration acting on the vehicle on the longitudinal direction. and generates a signal. This signal is sent via the high-pass filter (2) to the amplifier (3) which adapts the signal strength to the following processing stages. The acceleration signal is restricted in the limiter (4) and is reduced by a constant acceleration threshold (as) in a subtractor circuit (5).

The integrator (6) then integrates the signal produced and passes it on to the trigger switch (7) for evaluation. If the fixed triggering speed V is exceeded, the output stages (20) are activated. This effects triggering of the driver's airbag and the belt tensioners by means of the detonators (19) when the test cycle is complete. An additional precaution against incorrect triggering is a mercury switch (18) installed in the control unit. The control unit also contains a further circuit to monitor the ignition circuits and to perform its own function check. Malfunctions are indicated by the warning lamp (21).





1 Acceleration sensor
2 High-pass filter
3 Amplifier
4 Limiter
5 Subtractor circuit
6 Integrator
7 Trigger switch
8 Voltage monitoring
9 Switch-on delay
10 Logic circuit
11 Ignition circuit monitoring
12 Fault memory
13 Voltage transformer
14 Reserve power source
15 Reserve power source monitoring
16 Sequence control system
17 Output stage monitoring
18 Mercury switch
19 Detonators for aibag and belt tensioner generators
20 Output stages
21 Warning lamp
22 Test switch
