Home >> Mercedes Benz >> 1987 >> 300SDL (126.125) L6-3.0L DSL Turbo (603.961) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cruise Control >> Cruise Control Relay >> Locations

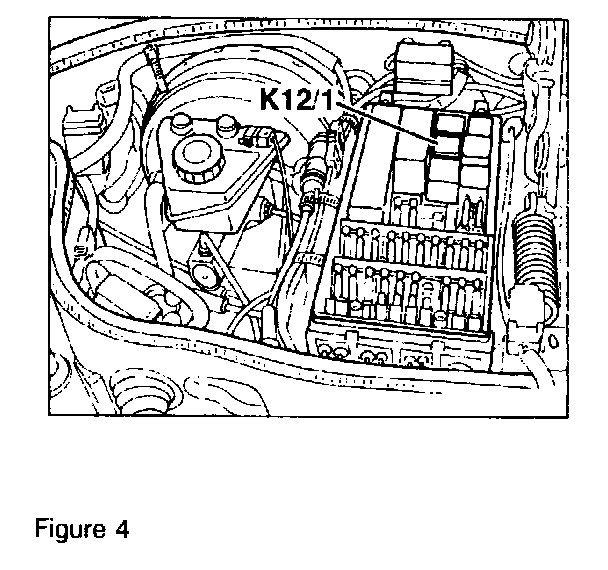

Cruise Control Relay: Locations




Component ID K12/1
Component Name Cruise control/engine overload protection relay
Component Location Rear of fuse box, location E
