FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1987
>>
300SDL (126.125) L6-3.0L DSL Turbo (603.961)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Maximum No-Load Engine RPM Test (DE-04.04)
Maximum No-Load Engine RPM Test (DE-04.04)
Maximum No-Load Engine RPM Test
(DE-04.04)

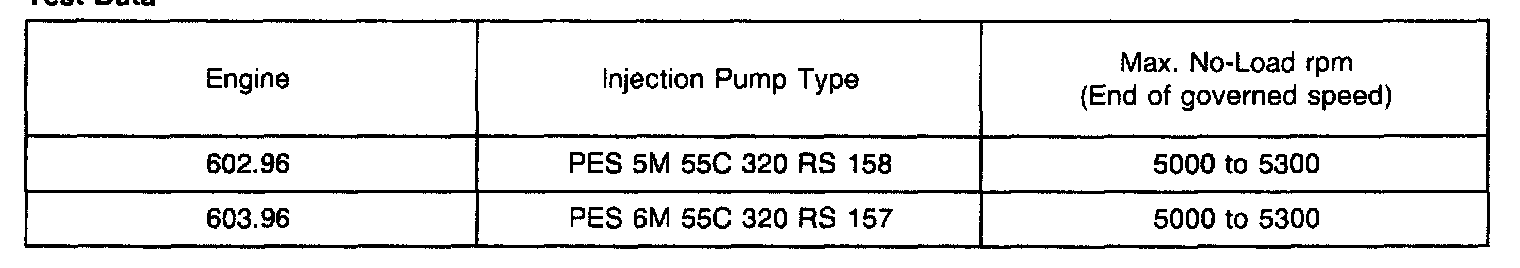

Test Data:

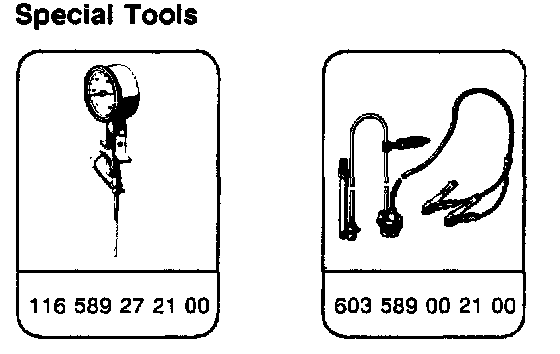

Special Tools:

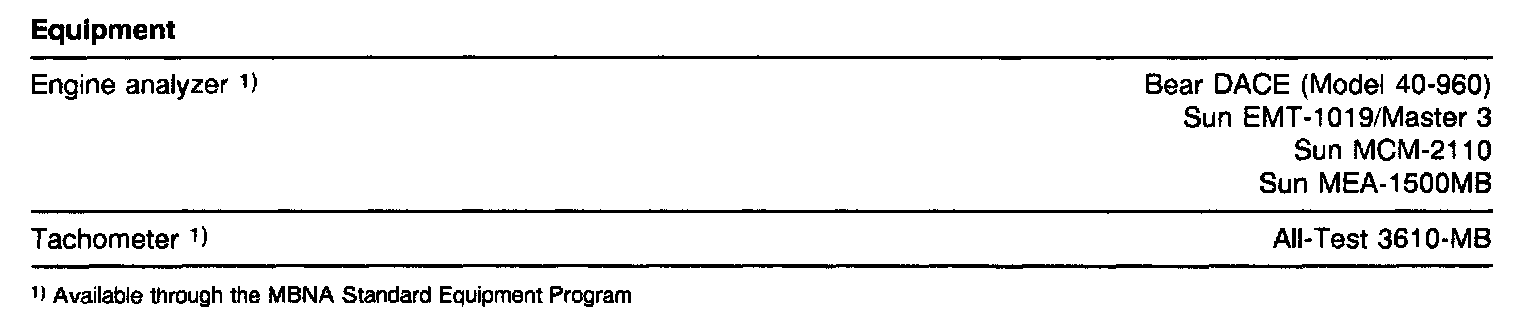

Equipment:

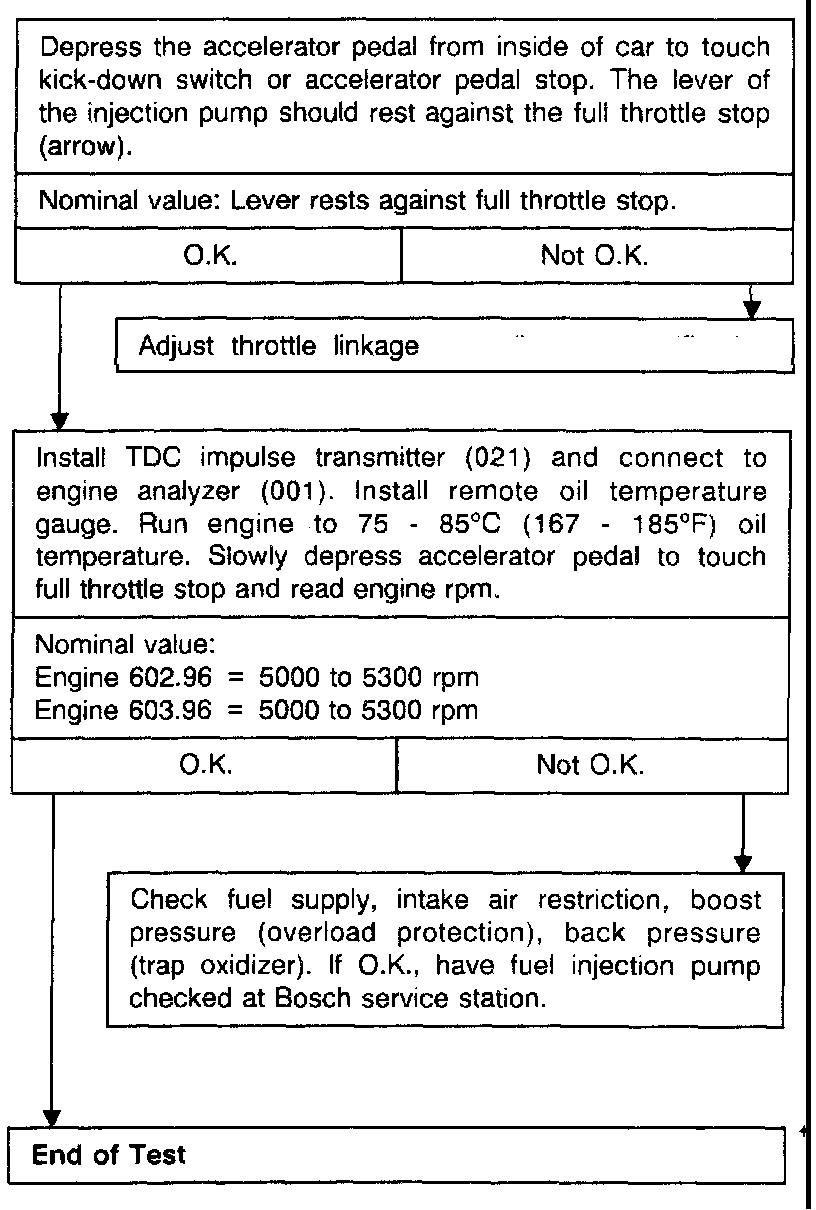

Test
